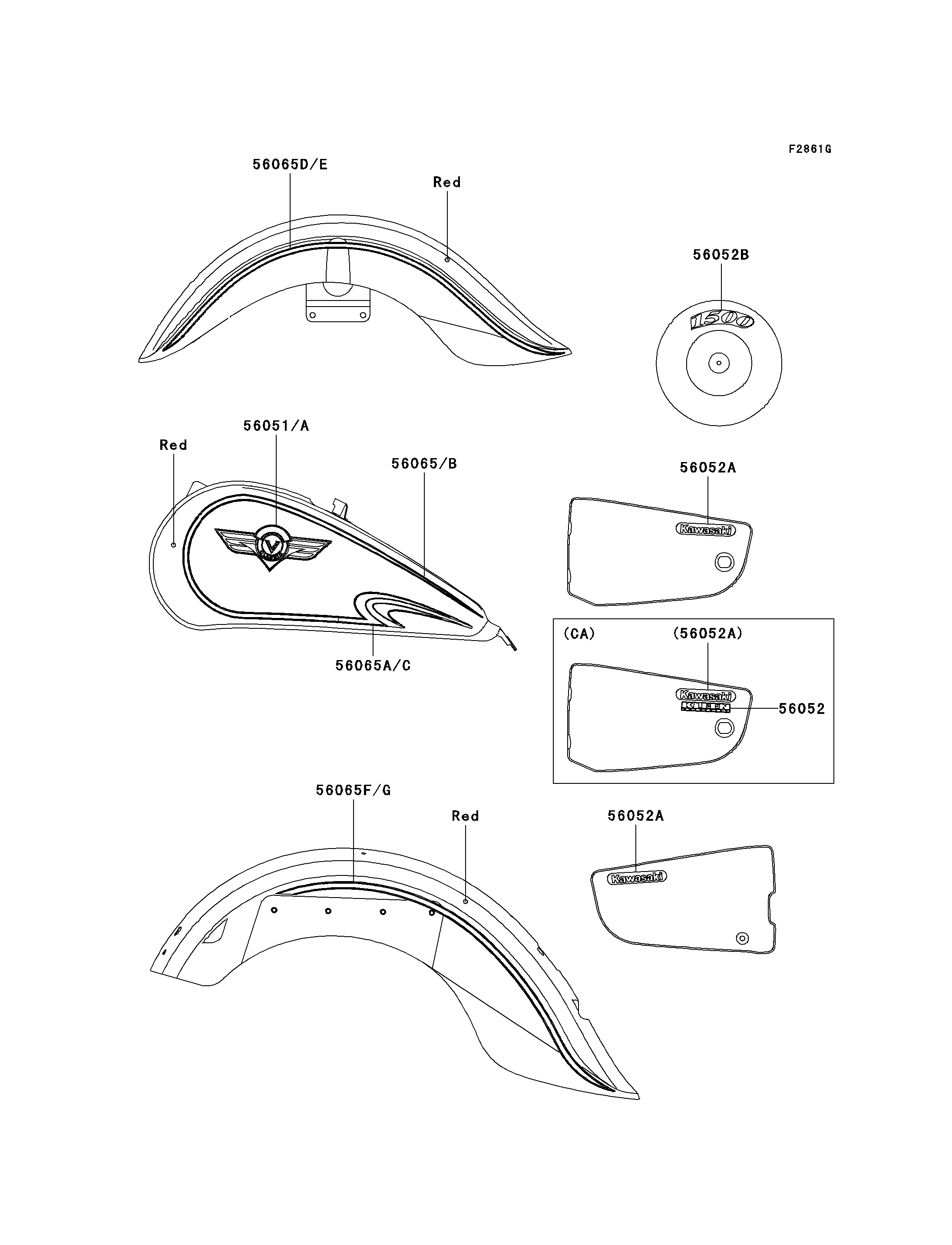

2002 Vulcan 1500 Classic - Decals(Red)(VN1500-E5)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,LH | 56051 | 56051-1455 | 1 | ||
| MARK,FUEL TANK,RH | 56051A | 56051-1456 | 1 | ||
| MARK,SIDE COVER,KAWASAKI | 56052A | 56052-1533 | 2 | ||
| MARK,AIR CLEANER COVER,RH,1500 | 56052B | 56052-1545 | 1 | ||
| PATTERN,FUEL TANK,FR,LH | 56065 | 56065-1557 | 1 | ||
| PATTERN,FUEL TANK,RR,LH | 56065A | 56065-1558 | 1 | ||
| PATTERN,FUEL TANK,FR,RH | 56065B | 56065-1559 | 1 | ||
| PATTERN,FUEL TANK,RR,RH | 56065C | 56065-1560 | 1 | ||
| PATTERN,FR FENDER,LH | 56065D | 56065-1561 | 1 | ||
| PATTERN,FR FENDER,RH | 56065E | 56065-1562 | 1 | ||
| PATTERN,RR FENDER,LH | 56065F | 56065-1563 | 1 | ||
| PATTERN,RR FENDER,RH | 56065G | 56065-1564 | 1 | ||
| MARK,SIDE COVER,KLEEN | 56052 | 56052-1384 | 1 | CA |
| MARK,FUEL TANK,LH | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,RH | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,KAWASAKI | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,AIR CLEANER COVER,RH,1500 | |
| REF # | 56052B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,FR,LH | |
| REF # | 56065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RR,LH | |
| REF # | 56065A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,FR,RH | |
| REF # | 56065B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RR,RH | |
| REF # | 56065C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,LH | |
| REF # | 56065D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,RH | |
| REF # | 56065E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,LH | |
| REF # | 56065F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,RH | |
| REF # | 56065G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,KLEEN | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
