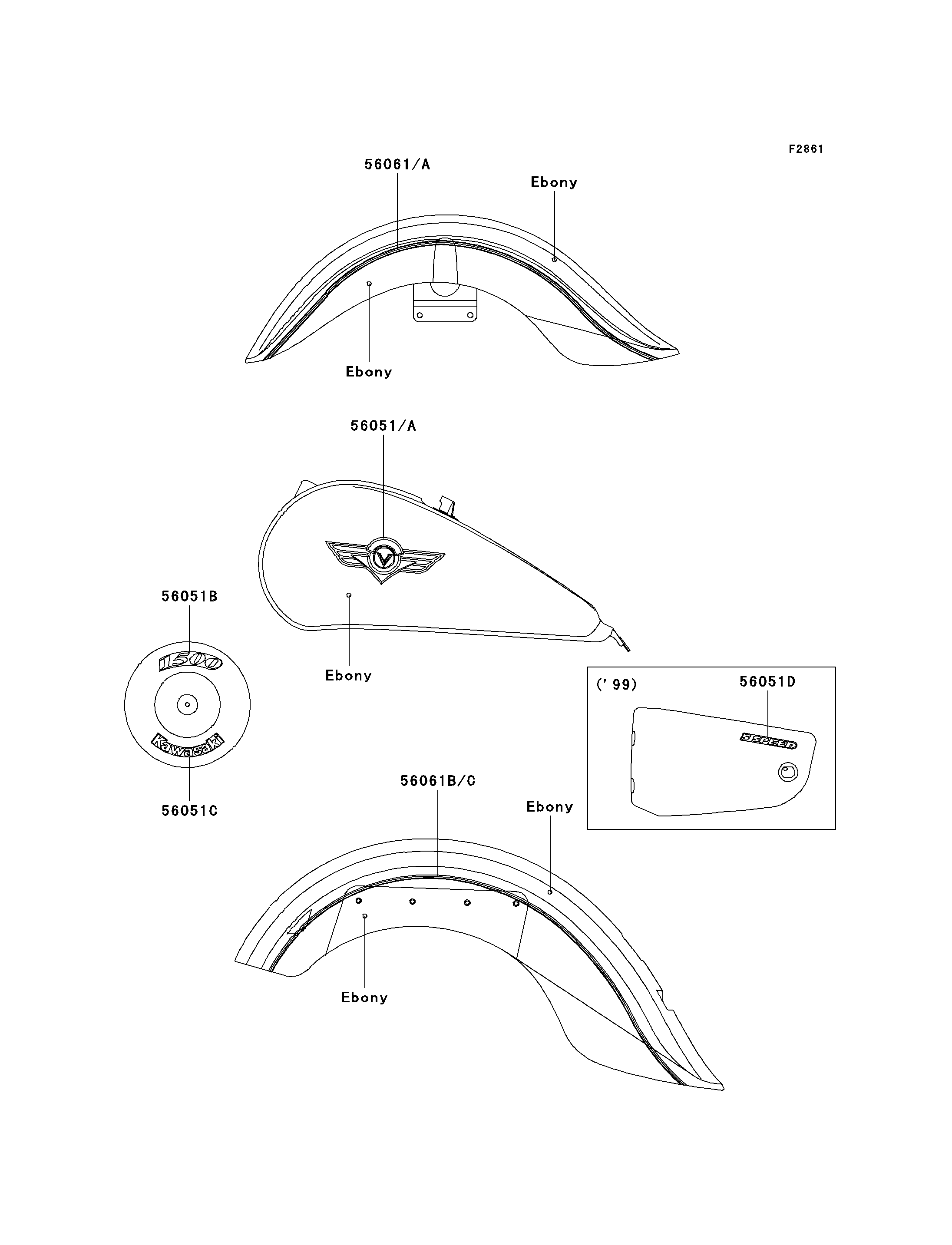

1999 Vulcan 1500 Classic - Decals(Ebony)(VN1500-E2/E3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,LH | 56051 | 56051-1455 | 1 | ||
| MARK,FUEL TANK,RH | 56051A | 56051-1456 | 1 | ||
| MARK,AIR CLEANER,1500 | 56051B | 56051-1459 | 1 | ||
| MARK,AIR CLEANER,KAWASAKI | 56051C | 56051-1460 | 1 | ||
| MARK,SIDE COVER,LH,5 SPEED | 56051D | 56051-1735 | 1 | ||
| PATTERN,FR FENDER,LH | 56061 | 56061-1788 | 1 | ||
| PATTERN,FR FENDER,RH | 56061A | 56061-1789 | 1 | ||
| PATTERN,RR FENDER,LH | 56061B | 56061-1790 | 1 | ||
| PATTERN,RR FENDER,RH | 56061C | 56061-1791 | 1 |
| MARK,FUEL TANK,LH | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,RH | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,AIR CLEANER,1500 | |
| REF # | 56051B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,AIR CLEANER,KAWASAKI | |
| REF # | 56051C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,LH,5 SPEED | |
| REF # | 56051D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,LH | |
| REF # | 56061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,RH | |
| REF # | 56061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,LH | |
| REF # | 56061B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,RH | |
| REF # | 56061C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
