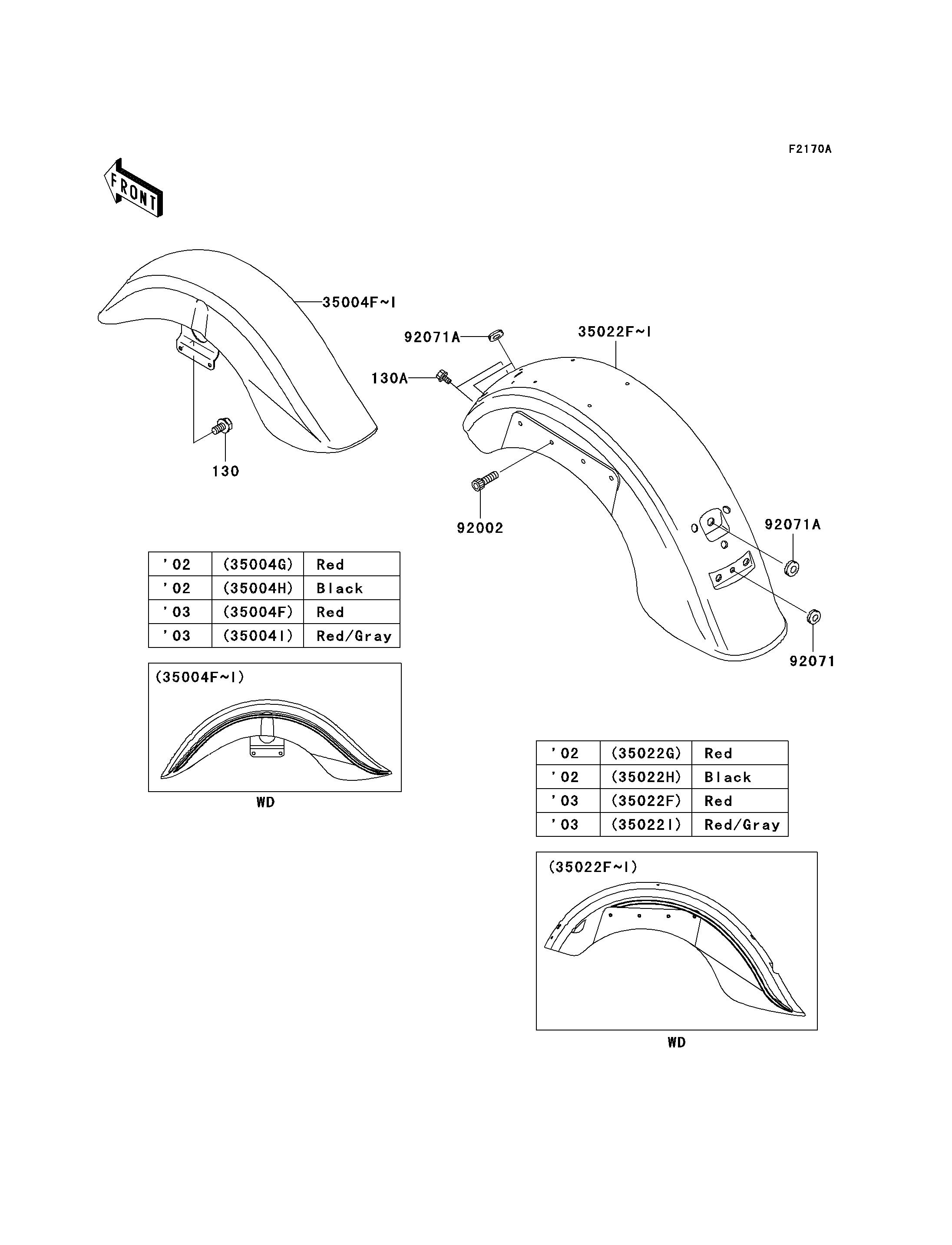

2003 Vulcan 1500 Classic - Fenders(VN1500-E5/E6)

DOWNLOAD PDF
SELECT A NEW PART
35004F
35004F
35004I
35004I
35022F
35022F
35022I
35022I
130
130
130A
130A
92002
92002
92071
92071
92071A
92071A
92071A
92071A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,C.S.RED 35004F 35004-5168-ED 1
FENDER-FRONT,RED/GRAY 35004I 35004-5230-C3 1
FENDER-COMP-REAR,C.S.RED 35022F 35022-5025-ED 1
FENDER-COMP-REAR,RED/GRAY 35022I 35022-5126-C3 1
BOLT-FLANGED,8X14 130 130J0814 4
BOLT-FLANGED,8X16,BLACK 130A 130J0816 2
BOLT,SOCKET,8X25 92002 92002-1442 2
GROMMET,10MM 92071 92071-019 1
GROMMET,13MM 92071A 92071-099 3
