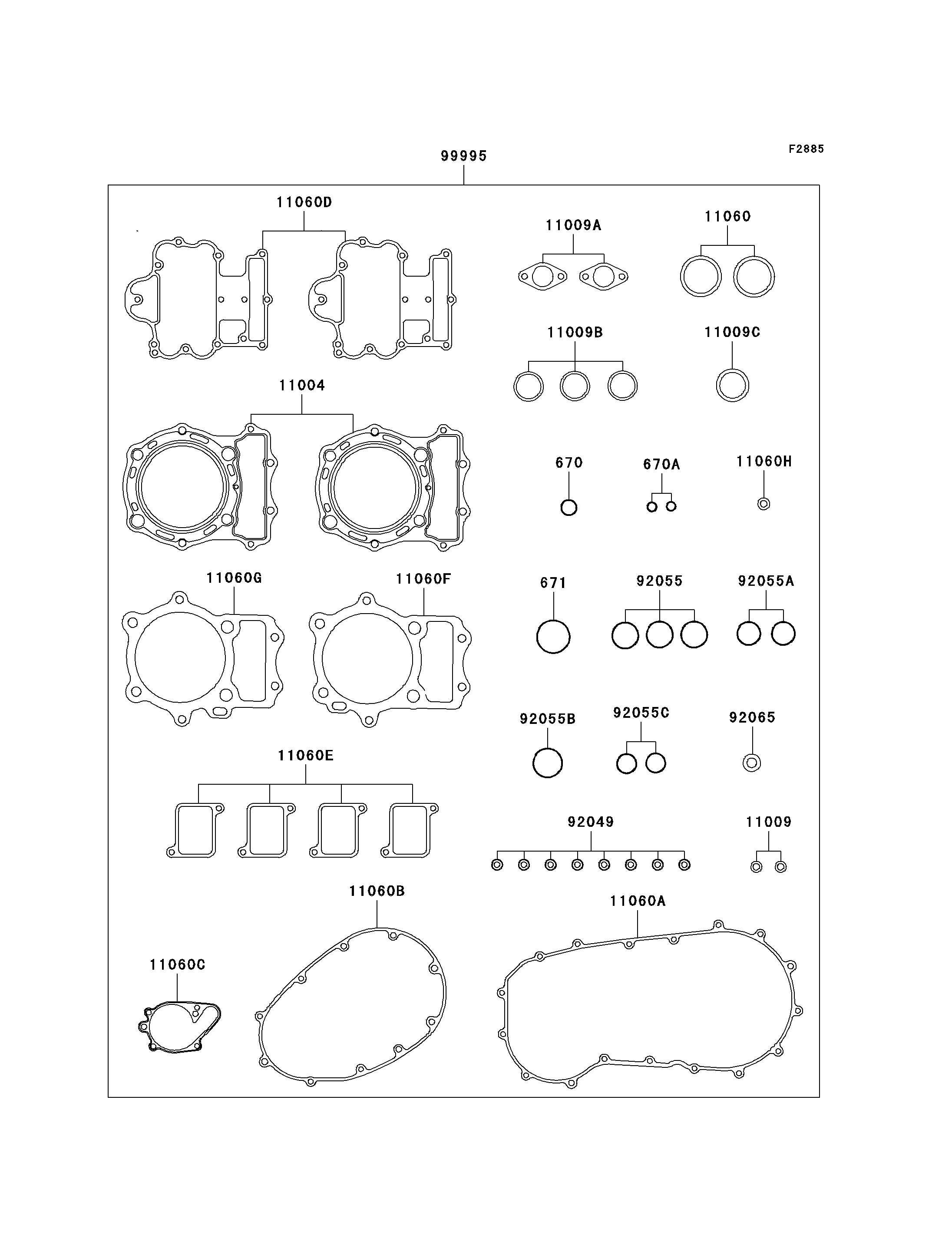

1996 Vulcan 1500 Classic - Gasket Kit

DOWNLOAD PDF
SELECT A NEW PART
670
670A
671
11004
11009
11009A
11009B
11009C
11060
11060A
11060B
11060C
11060D
11060E
11060F
11060G
11060H
92049
92055
92055A
92055B
92055C
92065
99995
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING,18MM 670 670B2018 1
O RING 670A 670D2010 2
O RING,40MM 671 671B2540 1
GASKET-HEAD 11004 11004-1317 2
GASKET,OIL PIPE,8.2X14X1.0 11009 11009-1344 2
GASKET,TENSIONER 11009A 11009-1858 2
GASKET,MUFFLER CONNECTING 11009B 11009-1865 3
GASKET,EXHAUST HOLDER 11009C 11009-1894 1
GASKET,EXHAUST PIPE 11060 11060-1119 2
GASKET,CLUTCH COVER 11060A 11060-1121 1
GASKET,GENERATOR 11060B 11060-1122 1
GASKET,WATER PUMP COVER 11060C 11060-1124 1
GASKET,ROCKER CASE COVER 11060D 11060-1732 2
GASKET,REED VALVE CAP 11060E 11060-1733 4
GASKET,CYLINDER BASE,FR 11060F 11060-1737 1
GASKET,CYLINDER BASE,RR 11060G 11060-1738 1
GASKET,PIPE JOINT 11060H 11060-1739 1
SEAL-OIL,RV37129.5 92049 92049-016 8
RING-O,31.5X2.6 92055 92055-049 3
RING-O,27.7X1.9 92055A 92055-1272 2
RING-O,35.2X2.4 92055B 92055-1358 1
RING-O,TENSIONER 92055C 92055-1555 2
GASKET,12X22X2,DRAIN PLUG 92065 92065-097 1
GASKET-SET,VN1500D 99995 99995-1393 1
