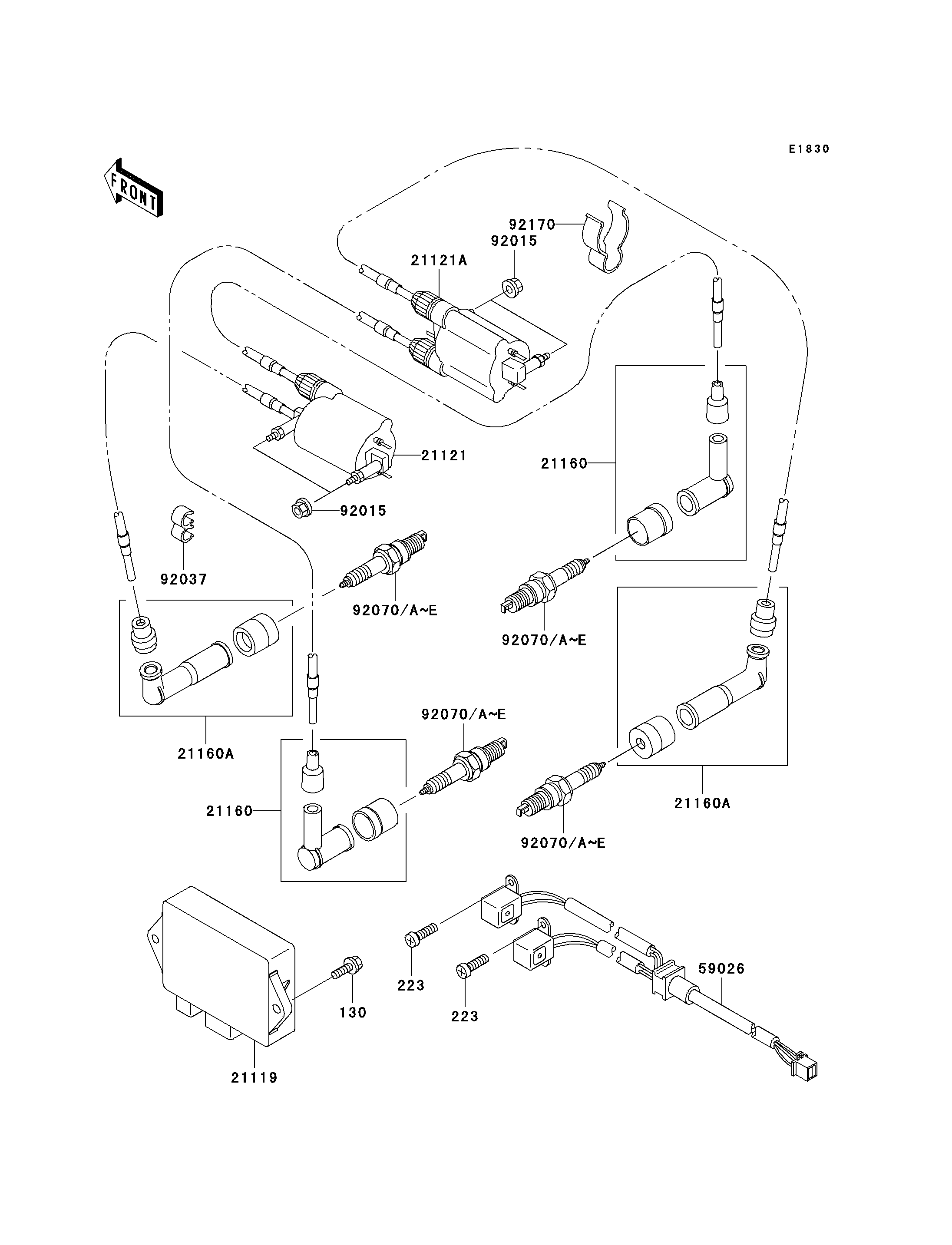

1996 Vulcan 1500 Classic - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
130
223
223
21119
21121
21121A
21160
21160
21160A
21160A
59026
92015
92015
92037
92070
92070
92070
92070
92070A
92070A
92070A
92070A
92070B
92070B
92070B
92070B
92070C
92070C
92070C
92070C
92070D
92070D
92070D
92070D
92070E
92070E
92070E
92070E
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130H0620 2
SCREW-PAN-WS-CROS 223 223B0516 4
IGNITER 21119 21119-1469 1
COIL-IGNITION,FR 21121 21121-1258 1
COIL-IGNITION,RR 21121A 21121-1259 1
CAP-ASSY-PLUG 21160 21160-1085 2
CAP-ASSY-PLUG 21160A 21160-1091 2
COIL-PULSING 59026 59026-1138 1
NUT,FLANGED,6MM 92015 92015-1367 4
CLAMP,HOSE 92037 92037-1603 2
PLUG-SPARK,DPR8EA-9(NGK) 92070 92070-1065 AR (OPTION)
PLUG-SPARK,X24EPR-U9(ND) 92070A AR (OPTION)
PLUG-SPARK,X22EPR-U9(ND) 92070B 4 (LOCAL PROCUREMENT ITEM)
PLUG-SPARK,DPR7EA9(NGK) 92070C 92070-1125 4
PLUG-SPARK,DPR6EA9(NGK) 92070D 92070-1138 AR (OPTION)
PLUG-SPARK,X20EPR-U9(DN) 92070E AR (OPTION)
CLAMP,HOSE 92170 92170-1930 2
