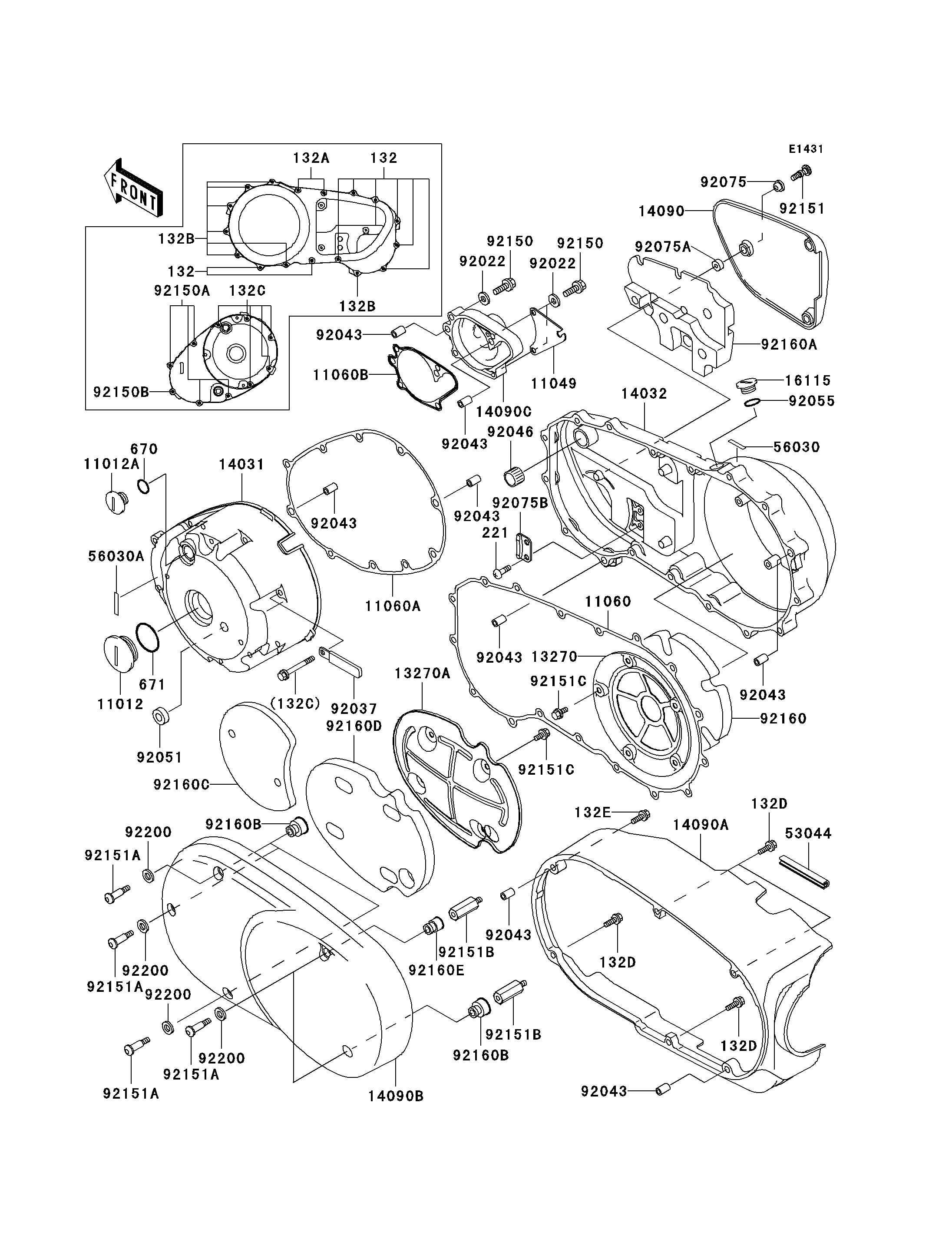

1996 Vulcan 1500 Classic - Engine Cover(s)
11012
11012
11012A
11012A
11049
11049
11060
11060
11060A
11060A
11060B
11060B
13270
13270
13270A
13270A
14031
14031
14032
14032
14090
14090
14090A
14090A
14090B
14090B
14090C
14090C
16115
16115
53044
53044
56030
56030
56030A
56030A
92022
92022
92022
92022
92037
92037
92043
92043
92043
92043
92043
92043
92043
92043
92043
92043
92043
92043
92043
92043
92043
92043
92046
92046
92051
92051
92055
92055
92075
92075
92075A
92075A
92075B
92075B
92150
92150
92150
92150
92150A
92150A
92150B
92150B
92151
92151
92151A
92151A
92151A
92151A
92151A
92151A
92151A
92151A
92151B
92151B
92151B
92151B
92151C
92151C
92151C
92151C
92160
92160
92160A
92160A
92160B
92160B
92160B
92160B
92160C
92160C
92160D
92160D
92160E
92160E
132
132
132
132
132A
132A
132B
132B
132B
132B
132C
132C
132D
132D
132D
132D
132D
132D
132E
132E
221
221
670
670
671
671
92200
92200
92200
92200
92200
92200
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-1362 | 1 | ||
| CAP,TOP MARK | 11012A | 11012-1363 | 1 | ||
| BRACKET | 11049 | 11049-1789 | 1 | ||
| GASKET,CLUTCH COVER | 11060 | 11060-1121 | 1 | ||
| GASKET,GENERATOR | 11060A | 11060-1122 | 1 | ||
| GASKET,WATER PUMP COVER | 11060B | 11060-1124 | 1 | ||
| PLATE | 13270 | 13270-1592 | 1 | ||
| PLATE | 13270A | 13270-1593 | 1 | ||
| COVER-GENERATOR | 14031 | 14031-1352 | 1 | ||
| COVER-CLUTCH | 14032 | 14032-1435 | 1 | ||
| COVER,CLUTCH OUTER | 14090 | 14090-1678 | 1 | ||
| COVER,LH,INNER | 14090A | 14090-1679 | 1 | ||
| COVER,LH,OUTER | 14090B | 14090-1883 | 1 | ||
| COVER,WATER PUMP | 14090C | 14090-1932 | 1 | ||
| CAP-OIL FILLER | 16115 | 16115-1063 | 1 | ||
| TRIM,L=75 | 53044 | 53044-1279 | 1 | ||
| LABEL,OIL CAPACITY | 56030 | 56030-1184 | 1 | ||
| LABEL,CHANGE SHIFT | 56030A | 56030-1193 | 1 | ||
| WASHER,6.1X12X1 | 92022 | 92022-077 | 4 | ||
| CLAMP | 92037 | 92037-1993 | 1 | ||
| PIN,6.2X8X14 | 92043 | 92043-1263 | 8 | ||
| BEARING-NEEDLE,HK1212 | 92046 | 92046-1163 | 1 | ||
| SEAL-OIL,TB13225.5 | 92051 | 92051-005 | 1 | ||
| RING-O,31.5X2.6 | 92055 | 92055-049 | 1 | ||
| DAMPER | 92075 | 92075-1855 | 3 | ||
| DAMPER | 92075A | 92075-1856 | 3 | ||
| DAMPER | 92075B | 92075-1905 | 1 | ||
| BOLT,6X30 | 92150 | 92150-1021 | 4 | ||
| BOLT,6X25 | 92150A | 92150-1779 | 4 | ||
| BOLT,6X35 | 92150B | 92150-1967 | 1 | ||
| BOLT | 92151 | 92151-1060 | 3 | ||
| BOLT | 92151A | 92151-1061 | 5 | ||
| BOLT | 92151B | 92151-1062 | 2 | ||
| BOLT,6X10 | 92151C | 92151-1064 | 9 | ||
| DAMPER | 92160 | 92160-1716 | 1 | ||
| DAMPER | 92160A | 92160-1717 | 1 | ||
| DAMPER | 92160B | 92160-1718 | 4 | ||
| DAMPER | 92160C | 92160-1719 | 1 | ||
| DAMPER | 92160D | 92160-1720 | 1 | ||
| DAMPER | 92160E | 92160-1730 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132E0625 | 8 | ||
| BOLT-FLANGED-SMALL | 132A | 132E0630 | 2 | ||
| BOLT-FLANGED-SMALL | 132B | 132E0635 | 7 | ||
| BOLT-FLANGED-SMALL | 132C | 132J0665 | 5 | ||
| BOLT-FLANGED-SMALL | 132D | 132V0620 | 4 | ||
| BOLT-FLANGED-SMALL | 132E | 132V0630 | 2 | ||
| SCREW-CSK-CROS,6X12 | 221 | 221B0612 | 2 | ||
| O RING,18MM | 670 | 670B2018 | 1 | ||
| O RING,40MM | 671 | 671B2540 | 1 | ||
| WASHER | 92200 | 92200-1296 | 5 |
