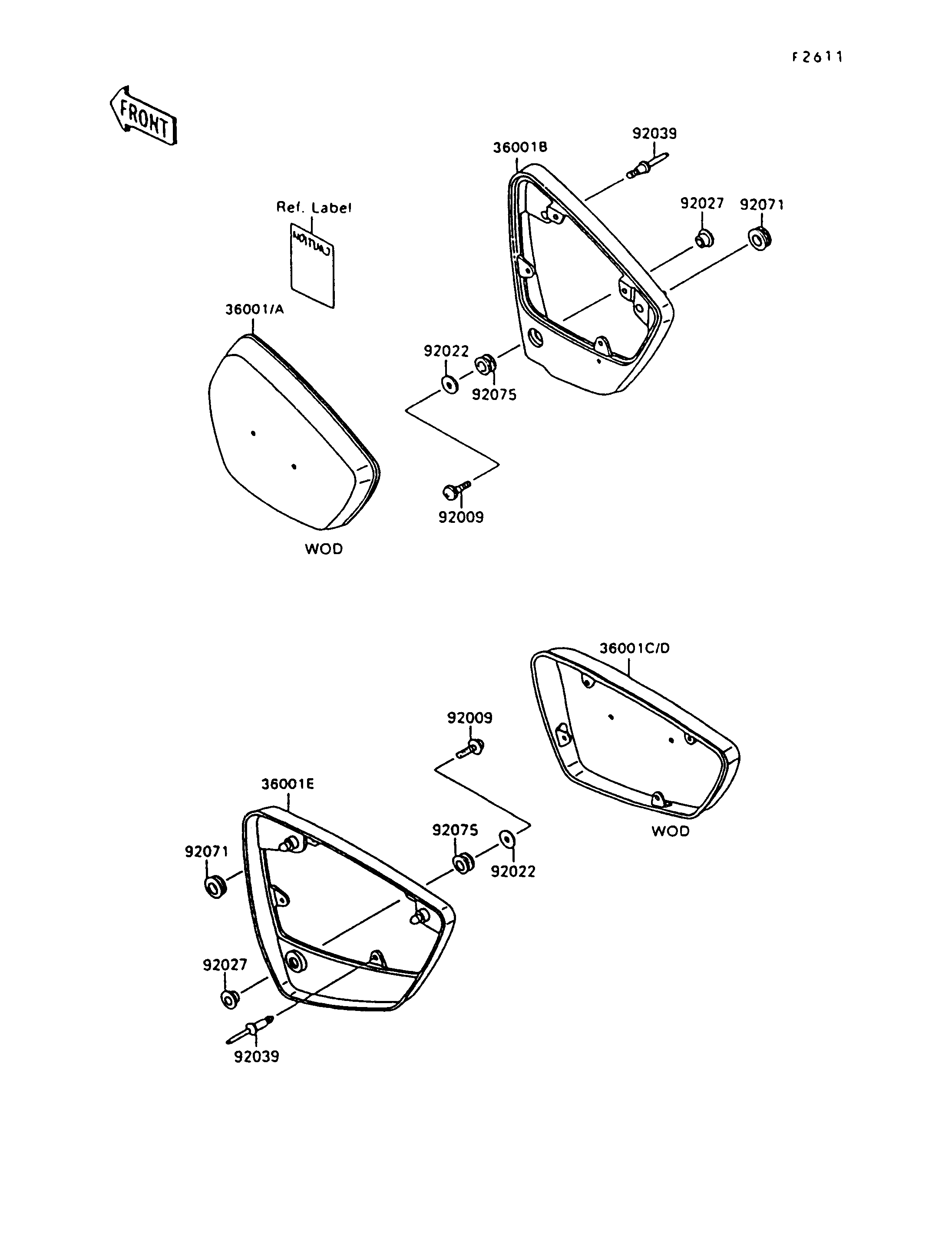

Parts Diagrams |
36001
36001A
36001B
36001C
36001D
36001E
92009
92009
92022
92022
92027
92027
92039
92039
92071
92071
92075
92075
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER-SIDE,LH,P.C.YELLOW | 36001 | 36001-1355-1G | 1 | ||
| COVER-SIDE,LH,BLACK MICA | 36001A | 36001-1355-20 | 1 | ||
| COVER-SIDE,BASE,LH,F.BLACK | 36001B | 36001-1356-21 | 1 | ||
| COVER-SIDE,RH,P.C.YELLOW | 36001C | 36001-1357-1G | 1 | ||
| COVER-SIDE,RH,BLACK MICA | 36001D | 36001-1357-20 | 1 | ||
| COVER-SIDE,BASE,RH,F.BLACK | 36001E | 36001-1358-21 | 1 | ||
| SCREW,6X18 | 92009 | 92009-1663 | 2 | ||
| WASHER,6.5X20X1.6,BLACK | 92022 | 92022-1619 | 2 | ||
| COLLAR,L=9.1,WHITE | 92027 | 92027-1795 | 2 | ||
| RIVET | 92039 | 92039-1232 | 8 | ||
| GROMMET | 92071 | 92071-1164 | 4 | ||
| DAMPER | 92075 | 92075-1634 | 2 |
| COVER-SIDE,LH,P.C.YELLOW | |
| REF # | 36001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,LH,BLACK MICA | |
| REF # | 36001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,BASE,LH,F.BLACK | |
| REF # | 36001B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,P.C.YELLOW | |
| REF # | 36001C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,BLACK MICA | |
| REF # | 36001D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,BASE,RH,F.BLACK | |
| REF # | 36001E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X18 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.6,BLACK | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=9.1,WHITE | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
