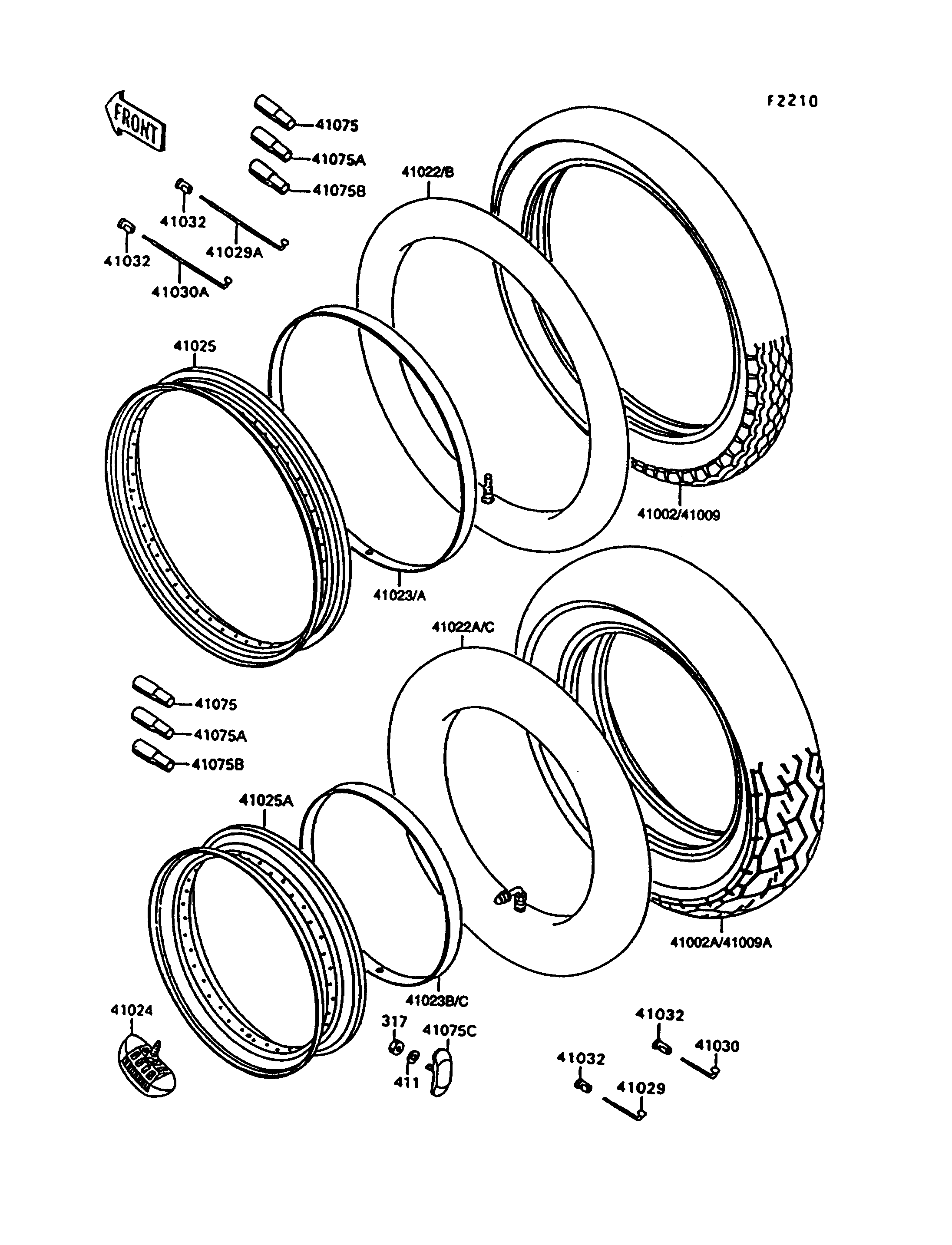

1996 Vulcan 1500 L - Tires

DOWNLOAD PDF
SELECT A NEW PART
317
411
41002
41002A
41022
41022A
41022B
41022C
41023
41023A
41023B
41023C
41024
41025
41025A
41029
41029A
41030
41030A
41032
41032
41032
41032
41075
41075
41075A
41075A
41075B
41075B
41075C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX-SMALL,8MM 317 317H0800 1
WASHER-PLAIN 411 411E0800 1
TIRE,FR,100/90-19 57H,F11L(D) 41002 41002-1697 1
TIRE,RR,150/90-15 74H,K425AM(D 41002A 41002-1978 1
TUBE-TIRE,100/90-19(D) 41022 41022-1129 1
TUBE-TIRE,RR,150/90-15(D) 41022A 41022-1133 1
TUBE-TIRE,100/90-19(BS) 41022B 41022-1142 1
TUBE-TIRE,150/90-15(BS) 41022C 41022-1176 1
BAND-RIM,90.100/90-19(D) 41023 41023-1074 1
BAND-RIM,110/90-19(BS) 41023A 41023-1081 1
BAND-RIM,150/80-15(D) 41023B 41023-1083 1
BAND-RIM,140/90-15(BS) 41023C 41023-1096 1
STOPPER-RIM,3.00(DUNLOP) 41024 41024-1004 1
RIM,FR,2.15X19 41025 41025-1284 1
RIM,RR,3.00X15 41025A 41025-1293 1
SPOKE-INNER,RR,74MMX110D 41029 41029-1175 20
SPOKE-INNER,FR,191MMX122D 41029A 41029-1235 24
SPOKE-OUTER,RR,72MMX68D 41030 41030-1115 20
SPOKE-OUTER,FR,185MMX124D 41030A 41030-1132 24
NIPPLE-SPOKE 41032 41032-1063 88
BALANCER-WHEEL,10G 41075 41075-1007 AR
BALANCER-WHEEL,20G 41075A 41075-1008 AR
BALANCER-WHEEL,30G 41075B 41075-1009 AR
BALANCER-WHEEL 41075C 41075-1055 1
TIRE,FR,100/90-19 57H,L307(BS) 41009 41009-1102 1
TIRE,RR,150/90-15 74H,G526(BS) 41009A 41009-1103 1
