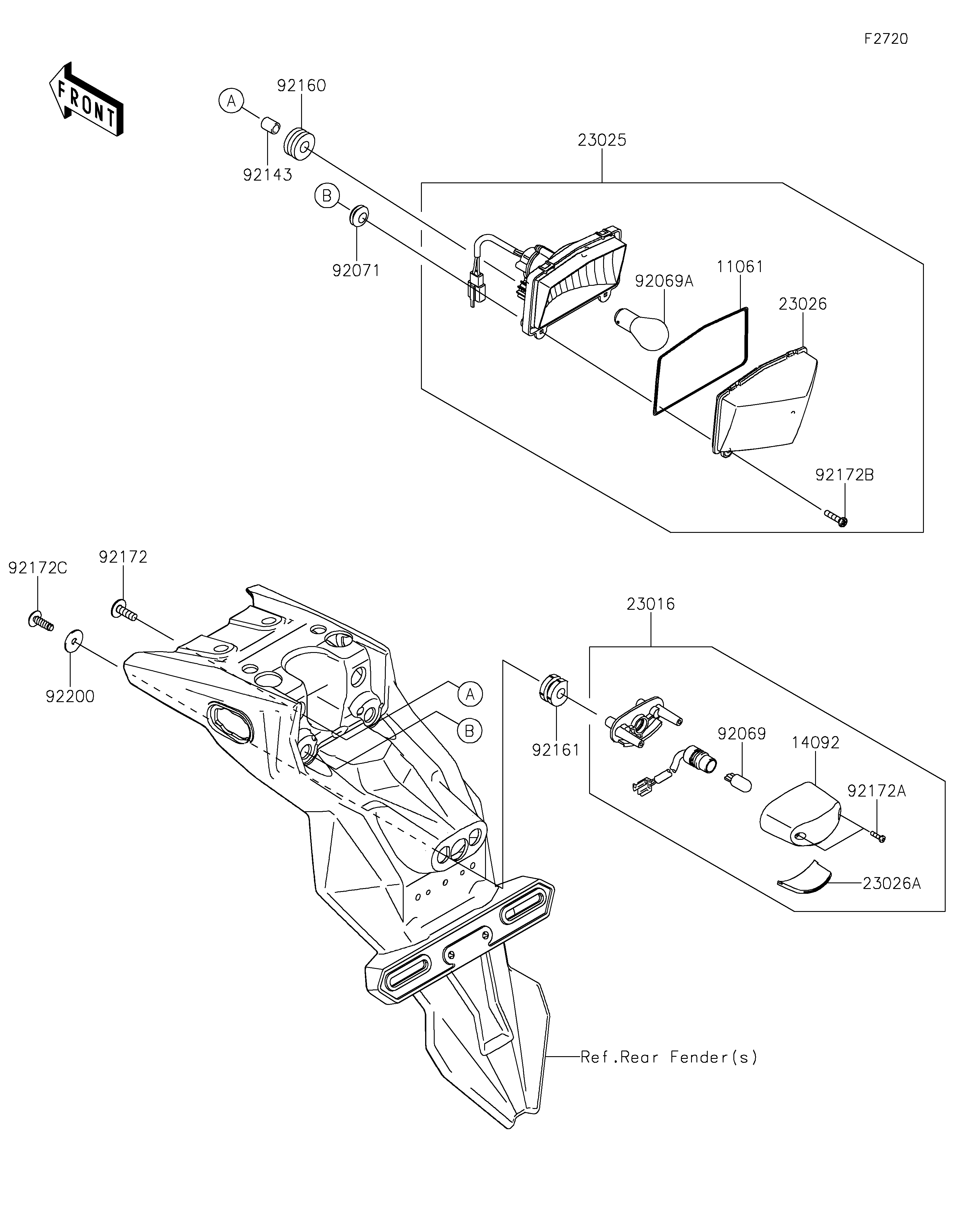

2019 KLX®150L - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
14092
23016
23025
23026
23026A
92069
92069A
92071
92143
92160
92161
92172
92172A
92172B
92172C
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TAIL LAMP LENS 11061 11061-0393 1
COVER,LICENSE LAMP 14092 14092-0001 1
LAMP-ASSY,LICENCE 23016 23016-0608 1
LAMP-TAIL 23025 23025-0355 1
LENS,TAIL LAMP 23026 23026-0024 1
LENS,LICENCE LAMP 23026A 23026-0028 1
BULB,12V 5W 92069 92069-1016 1
BULB,12V 21/5W 92069A 92069-1084 1
GROMMET 92071 92071-024 2
COLLAR,6.8X10X13 92143 92143-1825 2
DAMPER 92160 92160-1162 2
DAMPER 92161 92161-0776 2
SCREW,6X18 92172 92172-0192 2
SCREW,TAPPING,2.9X13 92172A 92172-0343 2
SCREW,4.2X19 92172B 92172-0411 2
SCREW,5X16 92172C 92172-0834 2
WASHER,5.5X20X1.2 92200 92200-0585 2
