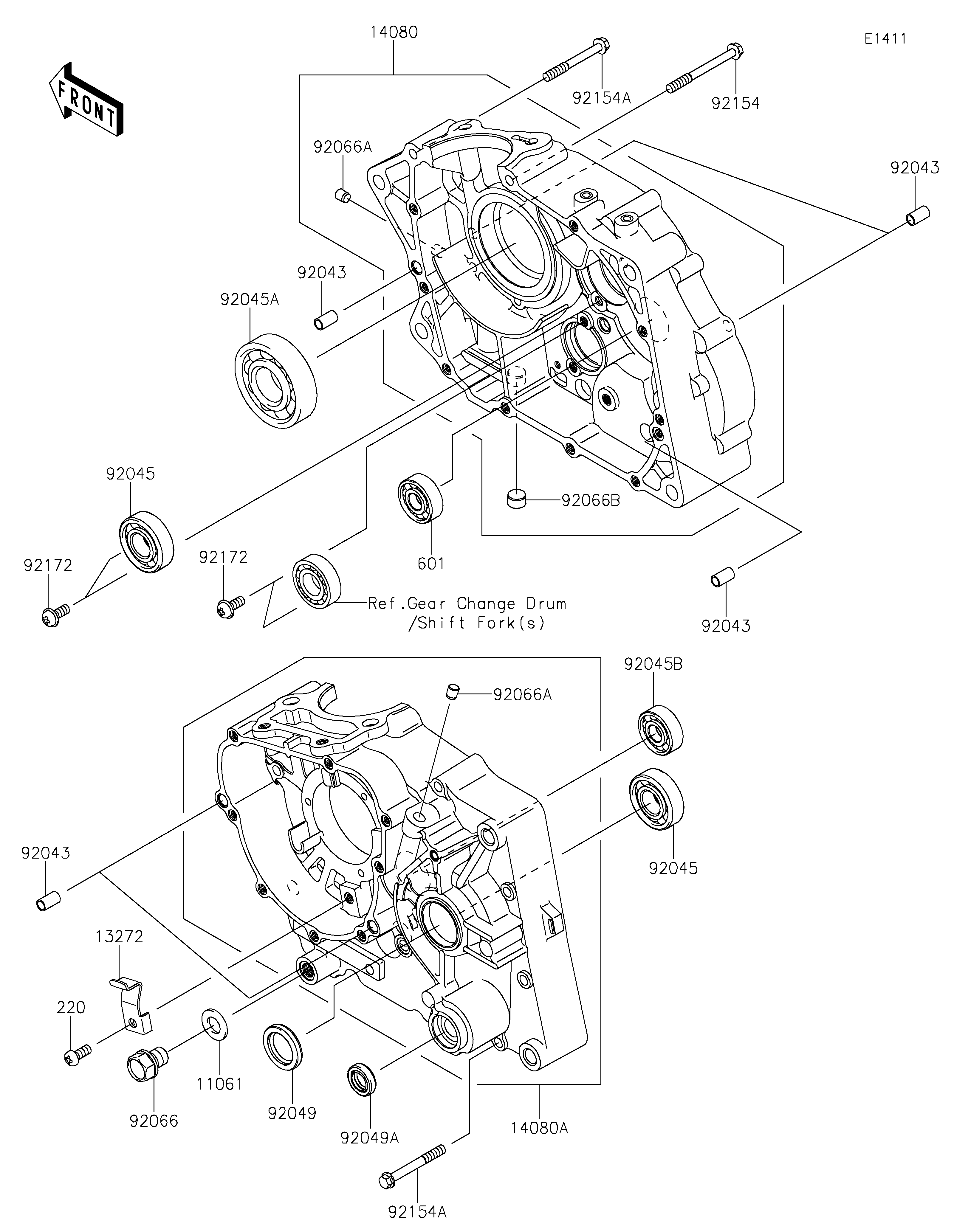

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11061
13272
14080
14080A
92043
92043
92043
92043
92045
92045
92045A
92045B
92049
92049A
92066
92066A
92066A
92066B
92154
92154A
92154A
92172
92172
220
601
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,DRAIN PLUG | 11061 | 11061-0421 | 1 | ||
| PLATE | 13272 | 13272-1384 | 1 | ||
| CRANKCASE,RH | 14080 | 14080-0251 | 1 | ||
| CRANKCASE,LH | 14080A | 14080-0295 | 1 | ||
| PIN,6.2X8X14 | 92043 | 92043-0099 | 6 | ||
| BEARING-BALL,#6203C2 | 92045 | 92045-0745 | 2 | ||
| BEARING-BALL,25X62X17 | 92045A | 92045-0895 | 1 | ||
| BEARING-BALL,12X32X10 | 92045B | 92045-0896 | 1 | ||
| SEAL-OIL | 92049 | 92049-0011 | 1 | ||
| SEAL-OIL | 92049A | 92049-1431 | 1 | ||
| PLUG,OIL DRAIN,12X15 | 92066 | 92066-0768 | 1 | ||
| PLUG,OIL LINE,7.2X8 | 92066A | 92066-1012 | 2 | ||
| PLUG | 92066B | 92066-1110 | 1 | ||
| BOLT,6X60 | 92154 | 92154-1161 | 1 | ||
| BOLT,6X50 | 92154A | 92154-1168 | 10 | ||
| SCREW,6X14 | 92172 | 92172-0850 | 4 | ||
| SCREW-PAN-CROS,6X14 | 220 | 220AA0614 | 1 | ||
| BEARING-BALL | 601 | 601A6201 | 1 |
