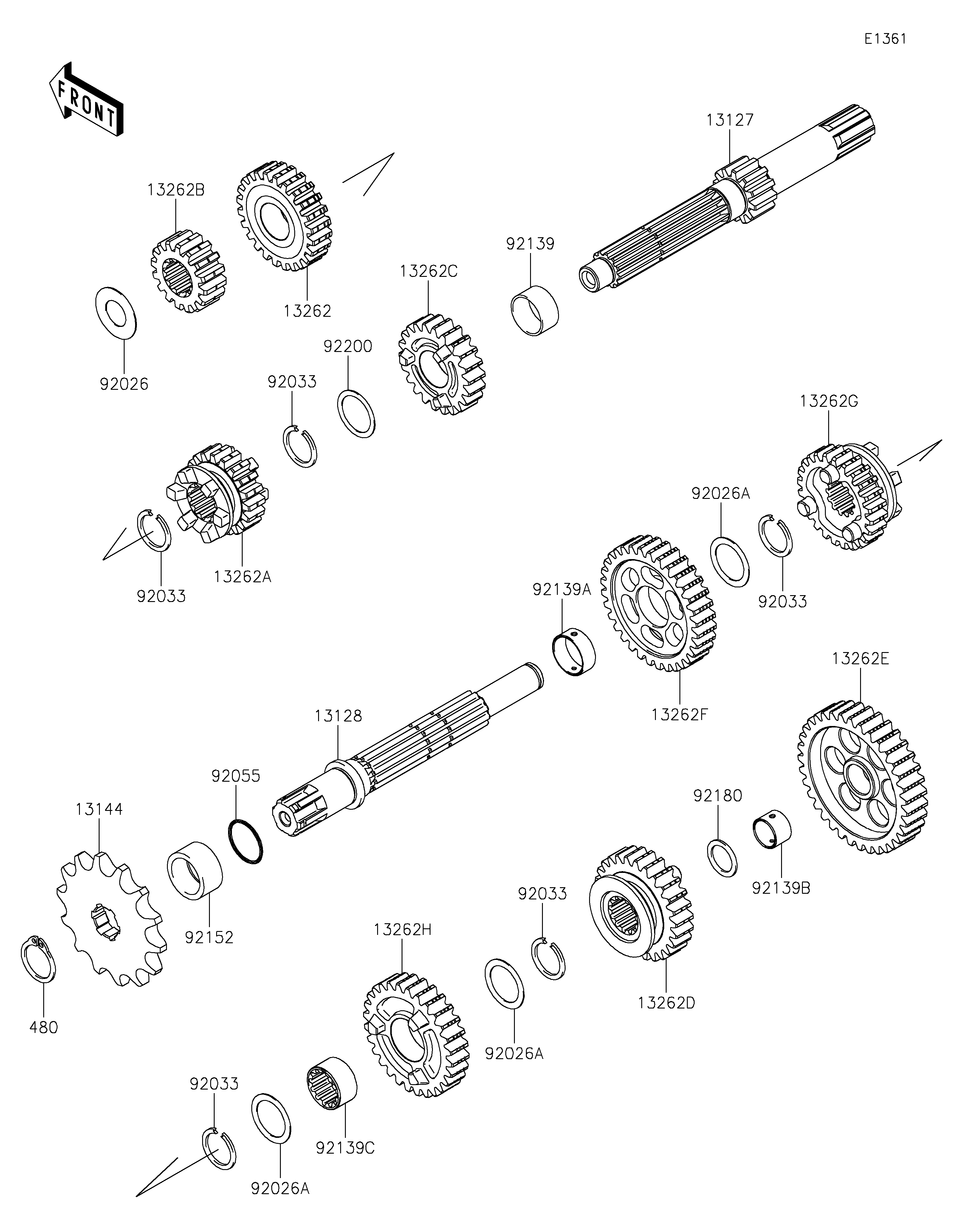

2019 KLX®150L - Transmission

DOWNLOAD PDF
SELECT A NEW PART
13127
13128
13144
13262
13262A
13262B
13262C
13262D
13262E
13262F
13262G
13262H
92026
92026A
92026A
92026A
92033
92033
92033
92033
92033
92055
92139
92139A
92139B
92139C
92152
92180
92200
480
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION INPUT,12T 13127 13127-0648 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-0679 1
SPROCKET-OUTPUT,14T 13144 13144-0562 1
GEAR,INPUT 5TH,24T 13262 13262-0965 1
GEAR,INPUT 3RD,19T 13262A 13262-0966 1
GEAR,INPUT 2ND,16T 13262B 13262-0967 1
GEAR,INPUT 4TH,22T 13262C 13262-0968 1
GEAR,OUTPUT 4TH,26T 13262D 13262-0969 1
GEAR,OUTPUT LOW,35T 13262E 13262-0970 1
GEAR,OUTPUT 2ND,32T 13262F 13262-0971 1
GEAR,OUTPUT 5TH,24T 13262G 13262-0972 1
GEAR,OUTPUT 3RD,28T 13262H 13262-0973 1
SPACER,12.2X24X0.5 92026 92026-0754 1
SPACER,17.2X23X0.5 92026A 92026-0755 3
RING-SNAP 92033 92033-0731 5
RING-O,16.8X1.9 92055 92055-0151 1
BUSHING,17X19X9.5 92139 92139-0795 1
BUSHING,17X19X7.4 92139A 92139-0796 1
BUSHING,12X14X9.4 92139B 92139-0797 1
BUSHING 92139C 92139-0913 1
COLLAR,SPROCKET 92152 92152-0998 1
SHIM 92180 92180-0774 1
WASHER,17.3X22X0.5 92200 92200-0865 1
CIRCLIP-TYPE-C,17MM 480 480J1700 1
