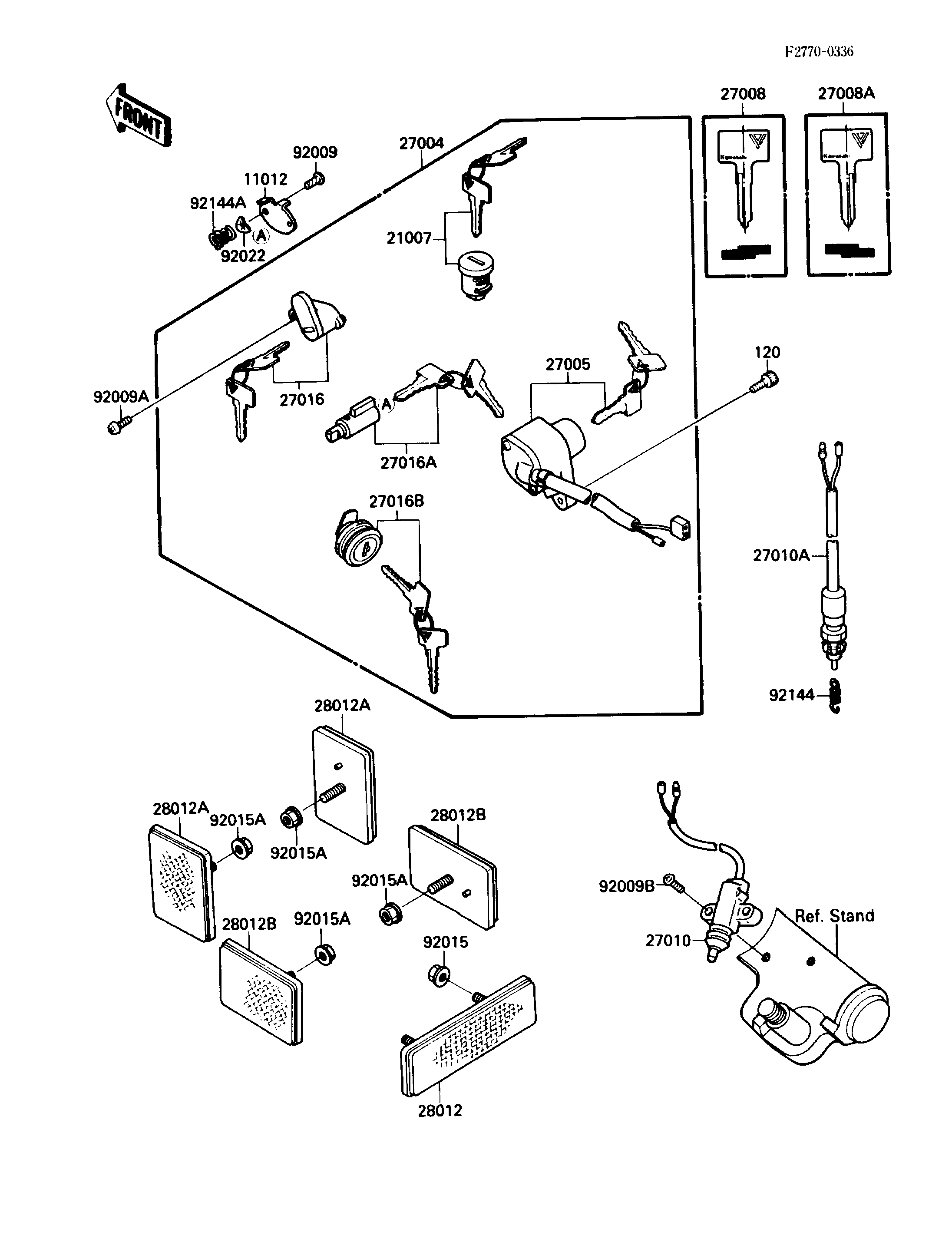

1989 Vulcan 88 SE - Ignition Switch/Locks/Reflectors
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,STEERING LOCK | 11012 | 11012-1586 | 1 | ||
| ROTOR,LOCK,TANK CAP | 21007 | 21007-5024 | 1 | ||
| SWITCH-ASSY | 27004 | 27004-5319 | 1 | ||
| SWITCH-ASSY-IGNITION | 27005 | 27005-1128 | 1 | ||
| KEY-LOCK,BLANK,#A | 27008 | 27008-1138 | 1 | (OPTION) | |
| KEY-LOCK,BLANK,#B | 27008A | 27008-1139 | 1 | (OPTION) | |
| SWITCH,SIDE STAND | 27010 | 27010-1223 | 1 | ||
| SWITCH,REAR BRAKE | 27010A | 27010-1238 | 1 | ||
| LOCK-ASSY,HELMET | 27016 | 27016-5129 | 1 | ||
| LOCK-ASSY,STEERING | 27016A | 27016-5131 | 1 | ||
| LOCK-ASSY,TOOL CASE COVER | 27016B | 27016-5133 | 1 | ||
| REFLECTOR-REFLEX,RR | 28012 | 28012-1005 | 1 | ||
| REFLECTOR-REFLEX,FR | 28012A | 28012-1009 | 2 | ||
| REFLECTOR-REFLEX,RR | 28012B | 28012-1051 | 2 | ||
| SCREW,3.51MM | 92009 | 92008-007 | 1 | ||
| SCREW,5X12 | 92009A | 92009-1296 | 1 | ||
| SCREW,5X20 | 92009B | 92009-1459 | 2 | ||
| NUT,FLANGED,5MM | 92015 | 92015-1259 | 2 | ||
| NUT,FLANGED,5MM | 92015A | 92015-1656 | 4 | ||
| WASHER,WAVE | 92022 | 92097-003 | 1 | ||
| SPRING,REAR BRAKE SWITCH | 92144 | 92144-1141 | 1 | ||
| SPRING,STEERING LOCK | 92144A | 92144-1222 | 1 | ||
| BOLT-SOCKET | 120 | 120P0512 | 1 |
