Parts Diagrams |

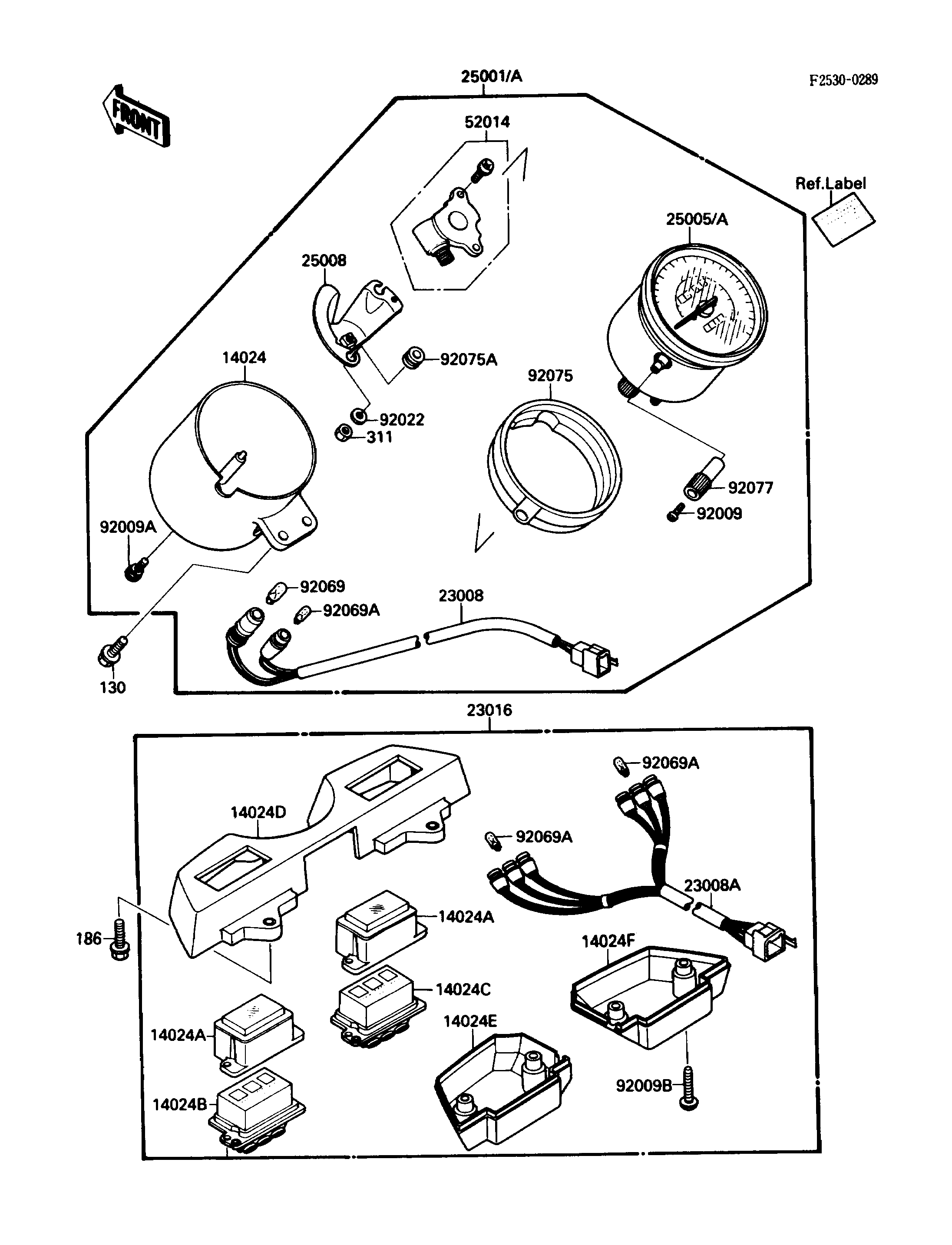

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,METER,LWR | 14024 | 14024-1504 | 1 | ||
| COVER,PILOT BOX,UPP | 14024A | 14024-1505 | 2 | ||
| COVER,PILOT BOX,LH,LWR | 14024B | 14024-1506 | 1 | ||
| COVER,PILOT BOX,RH,LWR | 14024C | 14024-1507 | 1 | ||
| COVER,PILOT BOX,UPP | 14024D | 14024-1524 | 1 | ||
| COVER,PILOT BOX,LH,LWR | 14024E | 14024-1525 | 1 | ||
| COVER,PILOT BOX,RH,LWR | 14024F | 14024-1526 | 1 | ||
| SOCKET-ASSY,METER | 23008 | 23008-1340 | 1 | ||
| SOCKET-ASSY,PILOT BOX | 23008A | 23008-1346 | 1 | ||
| LAMP-ASSY,PILOT BOX | 23016 | 23016-1084 | 1 | ||
| METER-ASSY,KPH | 25001A | 25001-1697 | 1 | ||
| SPEEDOMETER,KPH | 25005A | 25005-1368 | 1 | ||
| BRACKET-METER | 25008 | 25008-1139 | 1 | ||
| ELBOW,SPEEDOMETER GEAR | 52014 | 52014-1006 | 1 | ||
| SCREW,2X6,BLACK | 92009 | 92009-1172 | 1 | ||
| SCREW,5X10 | 92009A | 92009-1478 | 1 | ||
| SCREW,TAPPING,4X25 | 92009B | 92009-1485 | 4 | ||
| WASHER,4.3X12.5X1 | 92022 | 92022-1888 | 2 | ||
| BULB,12V 3.4W | 92069 | 92069-1007 | 1 | ||
| BULB,12V 3W | 92069A | 92069-1068 | 7 | ||
| DAMPER,SHOCK,METER | 92075 | 92075-1953 | 1 | ||
| DAMPER,METER FITTING | 92075A | 92075-1956 | 2 | ||
| KNOB,METER | 92077 | 92077-1077 | 1 | ||
| BOLT-FLANGED,6X16 | 130 | 130B0616 | 2 | ||
| BOLT-UPSET-WP,5X18 | 186 | 186B0518 | 2 | ||
| NUT-HEX | 311 | 311B0400 | 2 |
| COVER,METER,LWR | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,PILOT BOX,UPP | |
| REF # | 14024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,PILOT BOX,LH,LWR | |
| REF # | 14024B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,PILOT BOX,RH,LWR | |
| REF # | 14024C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,PILOT BOX,UPP | |
| REF # | 14024D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,PILOT BOX,LH,LWR | |
| REF # | 14024E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,PILOT BOX,RH,LWR | |
| REF # | 14024F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY,METER | |
| REF # | 23008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY,PILOT BOX | |
| REF # | 23008A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP-ASSY,PILOT BOX | |
| REF # | 23016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METER-ASSY,KPH | |
| REF # | 25001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPEEDOMETER,KPH | |
| REF # | 25005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-METER | |
| REF # | 25008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELBOW,SPEEDOMETER GEAR | |
| REF # | 52014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,2X6,BLACK | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X10 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X25 | |
| REF # | 92009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,4.3X12.5X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 3.4W | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 3W | |
| REF # | 92069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| DAMPER,SHOCK,METER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,METER FITTING | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| KNOB,METER | |
| REF # | 92077 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WP,5X18 | |
| REF # | 186 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
