Parts Diagrams |

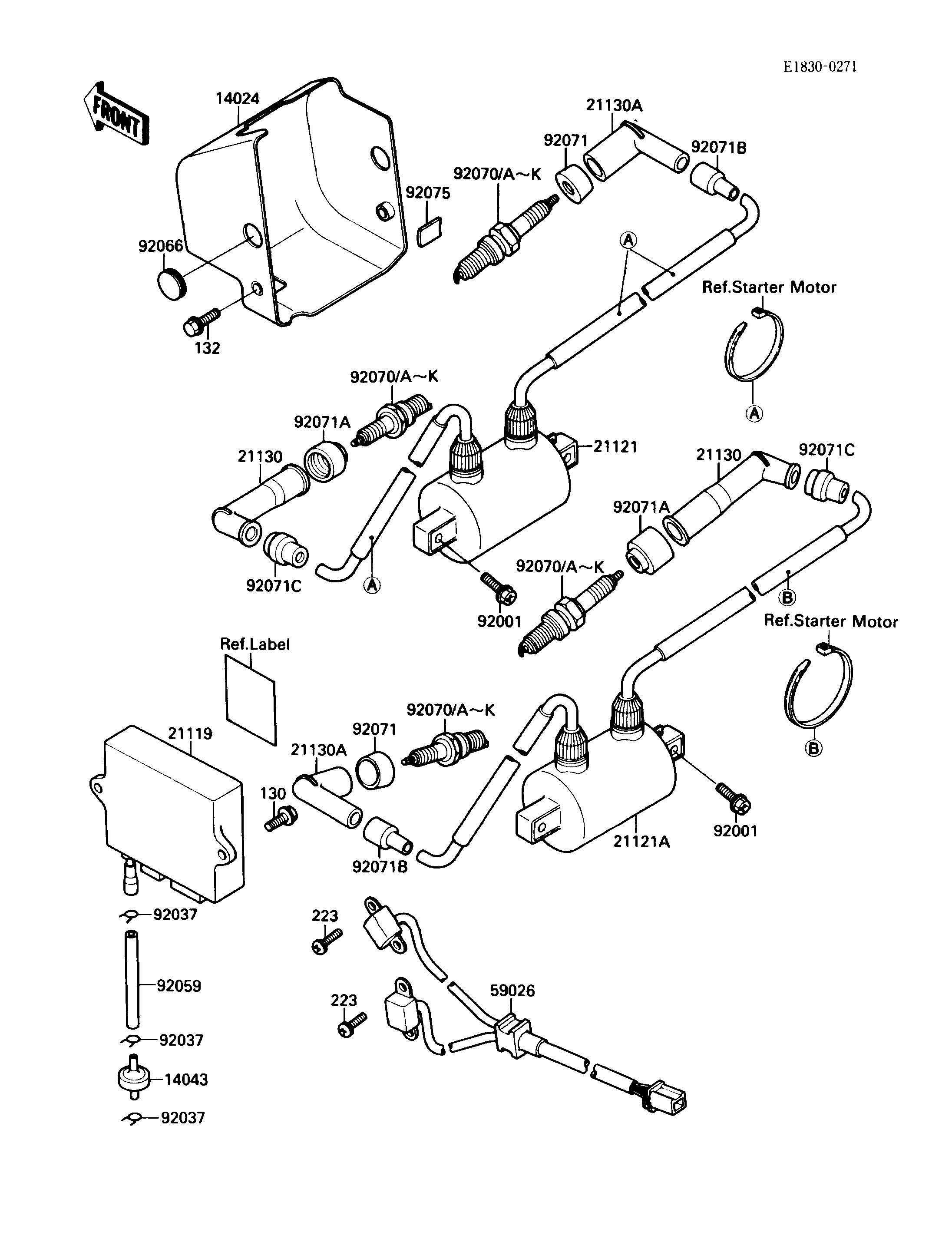

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,IGNITION COIL | 14024 | 14024-1527 | 1 | ||
| FILTER | 14043 | 14043-1060 | 1 | ||
| IGNITER | 21119 | 21119-1217 | 1 | ||
| COIL-IGNITION,FR | 21121 | 21121-1154 | 1 | ||
| COIL-IGNITION,RR | 21121A | 21121-1155 | 1 | ||
| CAP-SPARK PLUG | 21130 | 21130-1002 | 2 | ||
| CAP-SPARK PLUG | 21130A | 21130-1003 | 2 | ||
| COIL-PULSING | 59026 | 59026-1085 | 1 | ||
| BOLT,6X20 | 92001 | 92001-1091 | 4 | ||
| CLAMP,TUBE | 92037 | 92037-1482 | 3 | ||
| TUBE,3X7X140 | 92059 | 92059-1687 | 1 | ||
| PLUG | 92066 | 92066-1286 | 2 | ||
| PLUG-SPARK,DPR8EA-9(NGK) | 92070 | 92070-1065 | 4 | (OPTION) | |
| PLUG-SPARK,X24EPR-U9(ND) | 92070B | 4 | (OPTION) | ||
| PLUG-SPARK,X22EPR-U9(ND) | 92070E | 4 | (LOCAL PROCUREMENT ITEM) | ||
| PLUG-SPARK,DPR7EA9(NGK) | 92070G | 92070-1125 | 4 | ||
| PLUG-SPARK,DPR6EA9(NGK) | 92070J | 92070-1138 | 4 | (OPTION) | |
| PLUG-SPARK,X20EPR-U9(DN) | 92070K | 4 | (OPTION) | ||
| GROMMET,SPARK PLUG CAP | 92071 | 92071-1015 | 2 | ||
| GROMMET,PLUG CAP | 92071A | 92071-1124 | 2 | ||
| GROMMET,HIGH TENSION | 92071B | 92071-1154 | 2 | ||
| GROMMET,HIGH TENSION | 92071C | 92071-1155 | 2 | ||
| DAMPER,IGNITION | 92075 | 92075-1982 | 1 | ||
| BOLT-FLANGED,6X14 | 130 | 130G0614 | 2 | ||
| BOLT-FLANGED-SMALL | 132 | 132J0616 | 2 | ||
| SCREW-PAN-WS-CROS | 223 | 223B0516 | 4 |
| COVER,IGNITION COIL | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER | |
| REF # | 14043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| IGNITER | |
| REF # | 21119 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL-IGNITION,FR | |
| REF # | 21121 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL-IGNITION,RR | |
| REF # | 21121A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-SPARK PLUG | |
| REF # | 21130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP-SPARK PLUG | |
| REF # | 21130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COIL-PULSING | |
| REF # | 59026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| TUBE,3X7X140 | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLUG-SPARK,DPR8EA-9(NGK) | |
| REF # | 92070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | (OPTION) |
| PLUG-SPARK,X24EPR-U9(ND) | |
| REF # | 92070B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | (OPTION) |
| PLUG-SPARK,X22EPR-U9(ND) | |
| REF # | 92070E |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | (LOCAL PROCUREMENT ITEM) |
| PLUG-SPARK,DPR7EA9(NGK) | |
| REF # | 92070G |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLUG-SPARK,DPR6EA9(NGK) | |
| REF # | 92070J |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | (OPTION) |
| PLUG-SPARK,X20EPR-U9(DN) | |
| REF # | 92070K |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | (OPTION) |
| GROMMET,SPARK PLUG CAP | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GROMMET,PLUG CAP | |
| REF # | 92071A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GROMMET,HIGH TENSION | |
| REF # | 92071B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GROMMET,HIGH TENSION | |
| REF # | 92071C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,IGNITION | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WS-CROS | |
| REF # | 223 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
