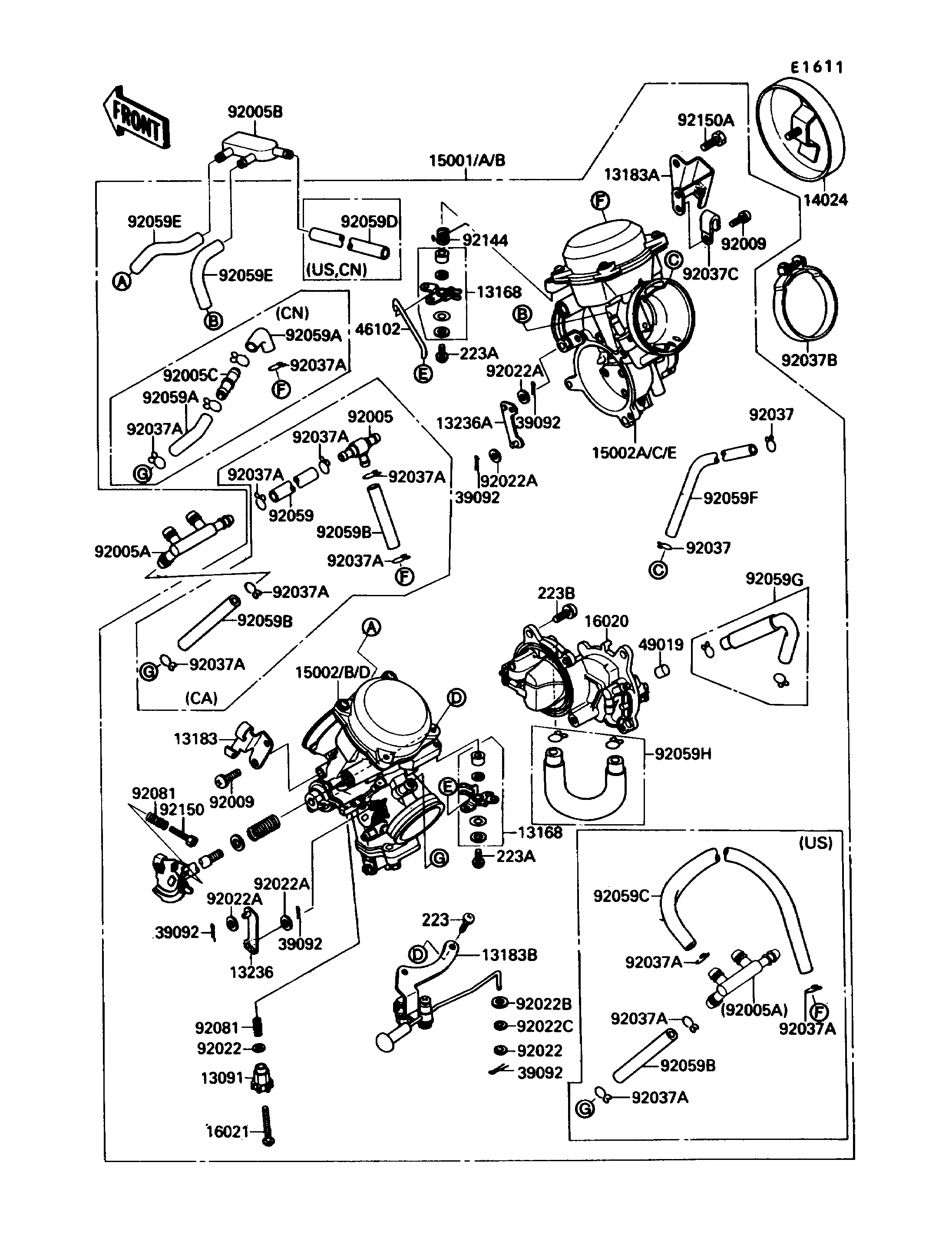

1989 Vulcan 88 SE - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,THROTTLE STOP SCREW 13091 13091-1382 1
LEVER,STARTER 13168 13168-1384 2
PLATE,THROTTLE CABLE 13183 13183-1213 1
PLATE,COVER 13183A 13183-1215 1
PLATE,STARTER 13183B 13183-1244 1
LEVER-COMP,LINK,RR 13236 13236-1165 1
LEVER-COMP,LINK,FR 13236A 13236-1166 1
COVER 14024 14024-1586 1
CARBURETOR-ASSY 15001 15001-1375 1
CARBURETOR,RR 15002D 15002-1588 1
CARBURETOR,FR 15002E 15002-1589 1
CHAMBER-FLOAT 16020 16020-1059 1
SCREW-THROTTLE STOP 16021 16021-1122 1
PIN-HAIR 39092 39092-1051 5
ROD,STARTER 46102 46102-1232 1
FILTER-FUEL 49019 49019-1059 1
FITTING 92005B 92005-1165 1
FITTING,TUBE 92005C 92005-1175 1
SCREW,5X10 92009 92009-1365 2
WASHER,PLAIN,STOP SPRING 92022 92022-1480 2
WASHER,3.1X8X0.5,POLYACETAL 92022A 92022-1676 4
WASHER,4.3X9.0X1.0,POLYACETAL 92022B 92022-1913 1
WASHER,5.0X7.5X1.0,POLYACETAL 92022C 92022-1914 1
CLAMP,TUBE 92037 92037-1142 2
CLAMP,TUBE 92037A 92037-1477 4
CLAMP 92037B 92037-1637 2
CLAMP 92037C 92037-1958 1
TUBE,5X9X150 92059A 92059-1378 2
TUBE,7X11X460 92059D 92059-1882 1
TUBE,7X11X160 92059E 92059-1883 2
TUBE,3X7X750 92059F 92059-1884 1
TUBE,5.3X10.5X190 92059G 92059-1885 1
TUBE,5.3X10.5X140 92059H 92059-1886 1
SPRING,THROTTLE STOP SCREW 92081 92081-1617 2
SPRING 92144 92144-1220 1
BOLT,4X20 92150 92150-1032 1
BOLT,10X16 92150A 92150-1033 1
SCREW-PAN-WS-CROS 223 223C0420 2
SCREW-PAN-WS-CROS 223A 223D0425 2
SCREW-PAN-WS-CROS 223B 223D0512 6
