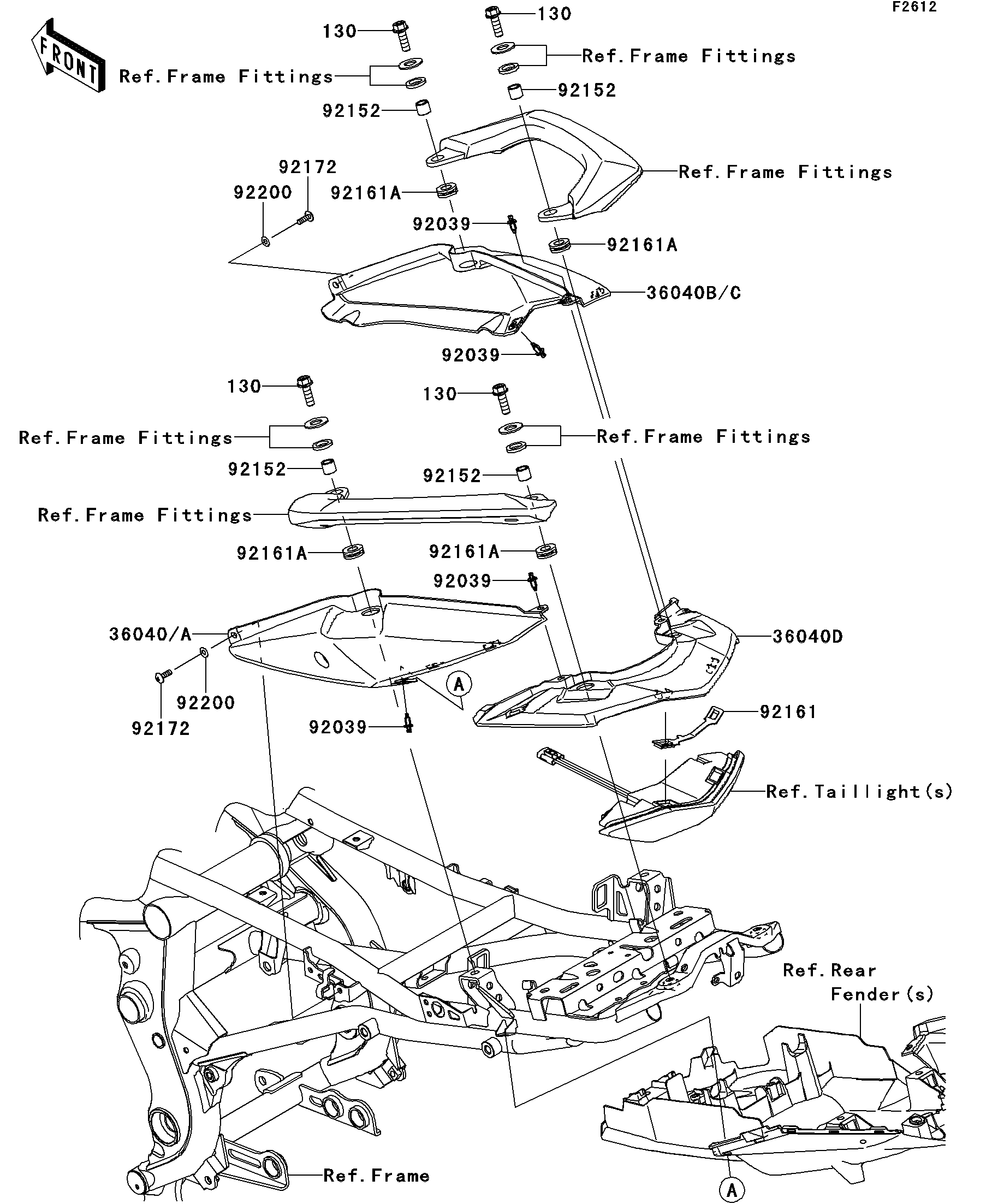

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
36040
36040A
36040B
36040C
36040D
92039
92039
92039
92039
92152
92152
92152
92152
92161
92161A
92161A
92161A
92161A
92172
92172
92200
92200
130
130
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER-TAIL,LH,C.L.GREEN | 36040 | 36040-0096-35P | 1 | ||
| COVER-TAIL,LH,M.S.BLACK | 36040A | 36040-0096-660 | 1 | CA,US | |
| COVER-TAIL,RH,C.L.GREEN | 36040B | 36040-0097-35P | 1 | ||
| COVER-TAIL,RH,M.S.BLACK | 36040C | 36040-0097-660 | 1 | CA,US | |
| COVER-TAIL,CNT | 36040D | 36040-0111 | 1 | ||
| RIVET | 92039 | 92039-0023 | 4 | ||
| COLLAR,9.2X13.8X12.5 | 92152 | 92152-0546 | 4 | ||
| DAMPER,TAIL LAMP | 92161 | 92161-0808 | 1 | ||
| DAMPER | 92161A | 92161-0868 | 4 | ||
| SCREW,5X16 | 92172 | 92172-0322 | 2 | ||
| WASHER,NYLON,5.3X11.5X0.5 | 92200 | 92200-1480 | 2 | ||
| BOLT-FLANGED,8X30 | 130 | 130CA0830 | 4 |
