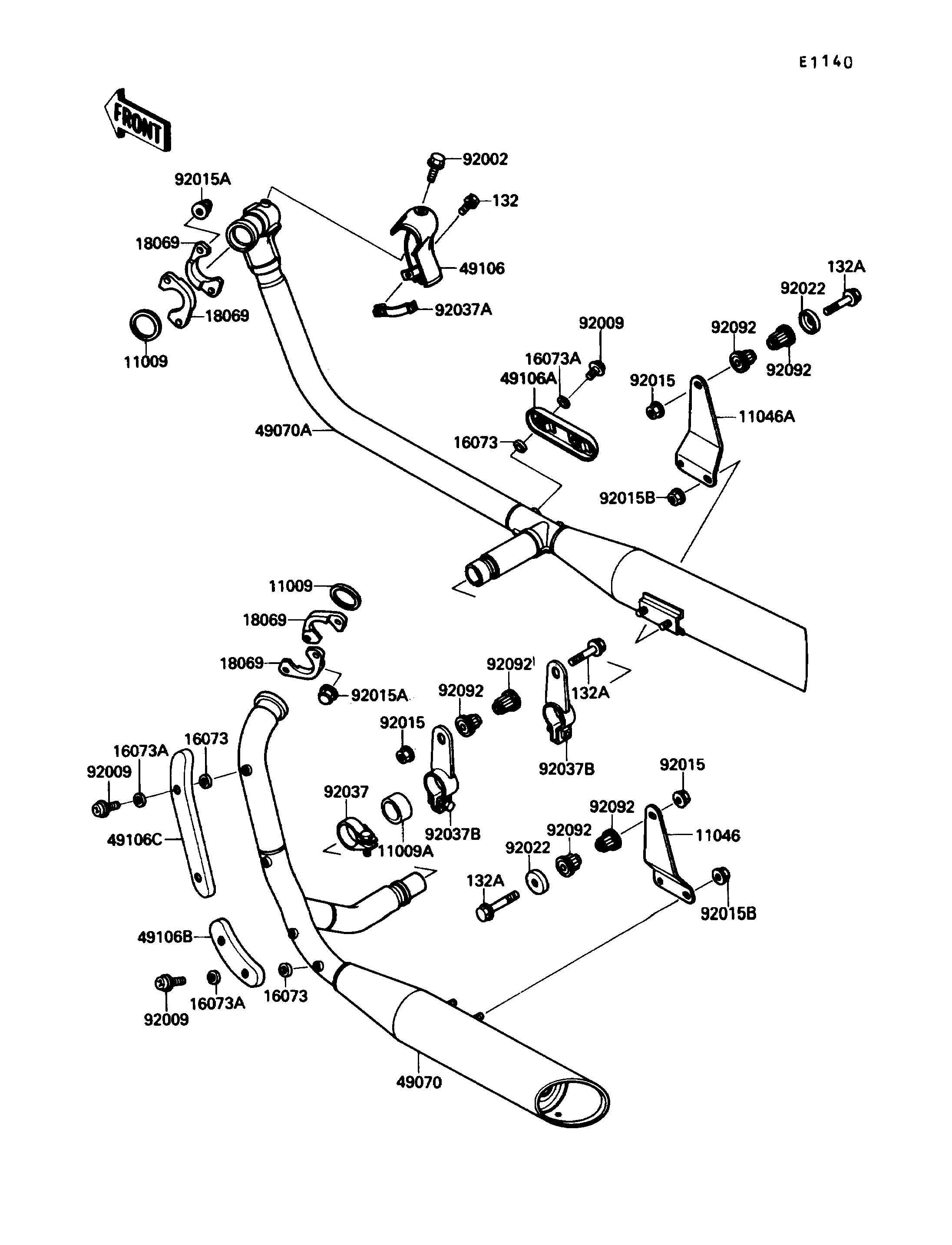

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,EXHAUST PIPE | 11009 | 11009-1476 | 2 | ||
| GASKET,EXHAUST MANUFOLD | 11009A | 11009-1668 | 1 | ||
| BRACKET,MUFFLER,LH | 11046 | 11046-1038 | 1 | ||
| BRACKET,MUFFLER,RH | 11046A | 11046-1039 | 1 | ||
| INSULATOR,6.5X12.5X4 | 16073 | 16073-1069 | 6 | ||
| INSULATOR,6.5X12.5X2 | 16073A | 16073-1070 | 6 | ||
| HOLDER-EXHAUST PIPE | 18069 | 18069-1074 | 4 | ||
| MUFFLER-COMP,LH | 49070 | 49070-1119 | 1 | ||
| MUFFLER-COMP,RH | 49070A | 49070-1120 | 1 | ||
| COVER-EXHAUST PIPE,FR | 49106 | 49106-1095 | 1 | ||
| COVER-MUFFLER,FR | 49106A | 49106-1104 | 1 | ||
| COVER-MUFFLER,RR,LWR | 49106B | 49106-1105 | 1 | ||
| COVER-MUFFLER,PIPE,RR | 49106C | 49106-1109 | 1 | ||
| BOLT,6X8 | 92002 | 92002-1604 | 1 | ||
| SCREW | 92009 | 92009-1517 | 6 | ||
| NUT,FLANGED,8MM | 92015 | 92015-1014 | 3 | ||
| NUT,CAP,8MM | 92015A | 92015-1371 | 4 | ||
| NUT,8MM | 92015B | 92015-1398 | 4 | ||
| WASHER,CUP TYPE | 92022 | 92022-1270 | 2 | ||
| CLAMP,MUFFLER | 92037 | 92037-1536 | 1 | ||
| CLAMP | 92037A | 92037-1874 | 1 | ||
| CLAMP,EXHAUST PIPE | 92037B | 92037-1970 | 2 | ||
| BUSHING-RUBBER,MUFFLER | 92092 | 92092-1013 | 6 | ||
| BOLT-FLANGED-SMALL | 132 | 132E0620 | 1 | ||
| BOLT-FLANGED-SMALL,8X55 | 132A | 132E0855 | 3 |
