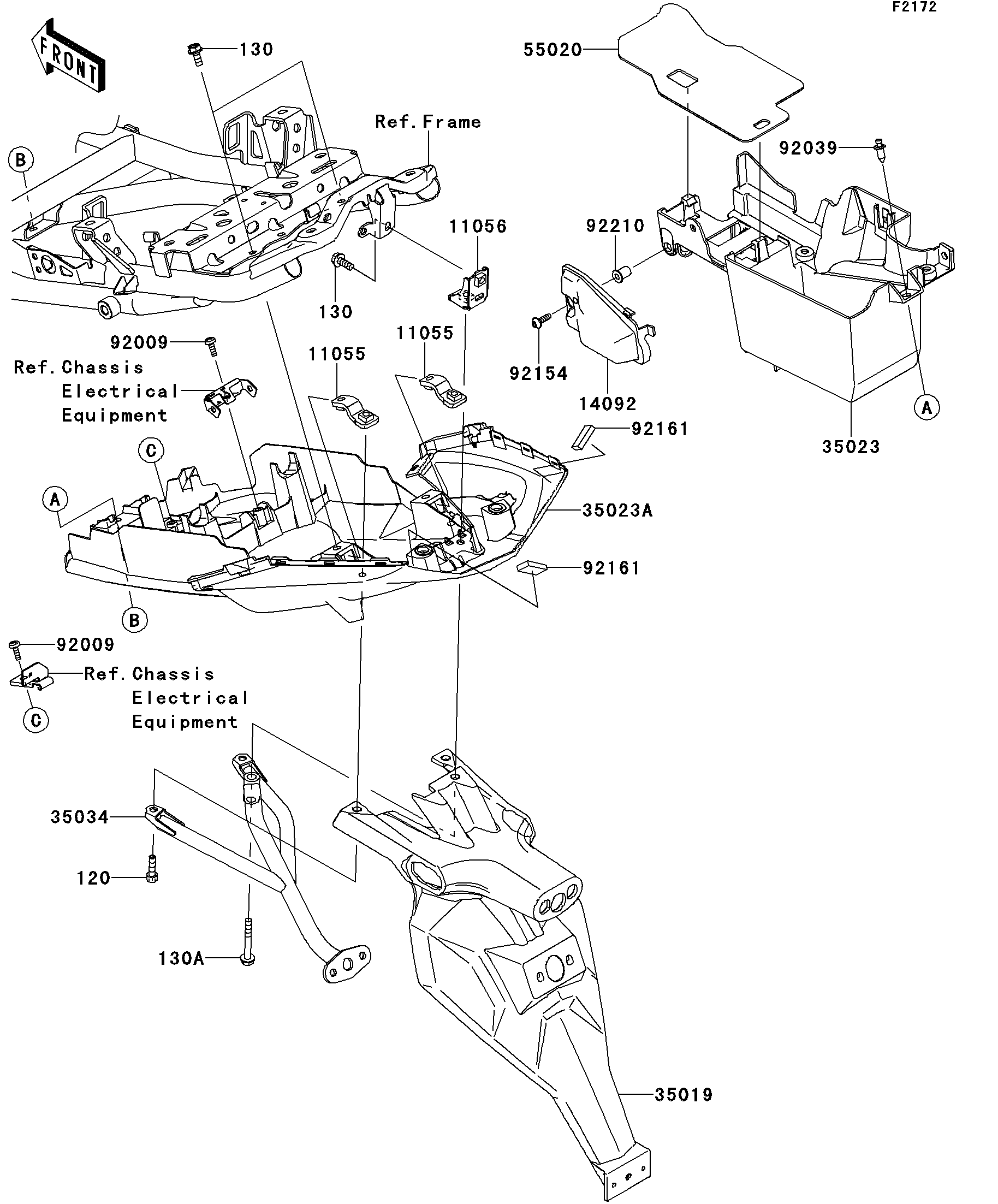

2014 VERSYS® ABS - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11055
11055
11056
14092
35019
35023
35023A
35034
55020
92009
92009
92039
92154
92161
92161
92210
120
130
130
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FLAP,RR,L&R 11055 11055-1873 2
BRACKET,FLAP,RR,CNT 11056 11056-0236 1
COVER,SWITCH MAINTE. 14092 14092-0174 1
FLAP,RR FENDER 35019 35019-0102 1
FENDER-REAR,FR 35023 35023-0163 1
FENDER-REAR,RR 35023A 35023-0196 1
REINFORCE 35034 35034-0123 1
GUARD,HEAT 55020 55020-0220 1
SCREW,6X14 92009 92009-3845 2
RIVET 92039 92039-1283 1
BOLT,SOCKET,5X16 92154 92154-0182 1
DAMPER 92161 92161-0717 2
NUT,WELL,5MM 92210 92210-0498 1
BOLT-SOCKET,6X22 120 120CA0622 2
BOLT-FLANGED,6X16 130 130BA0616 3
BOLT-FLANGED,6X45 130A 130BB0645 1
