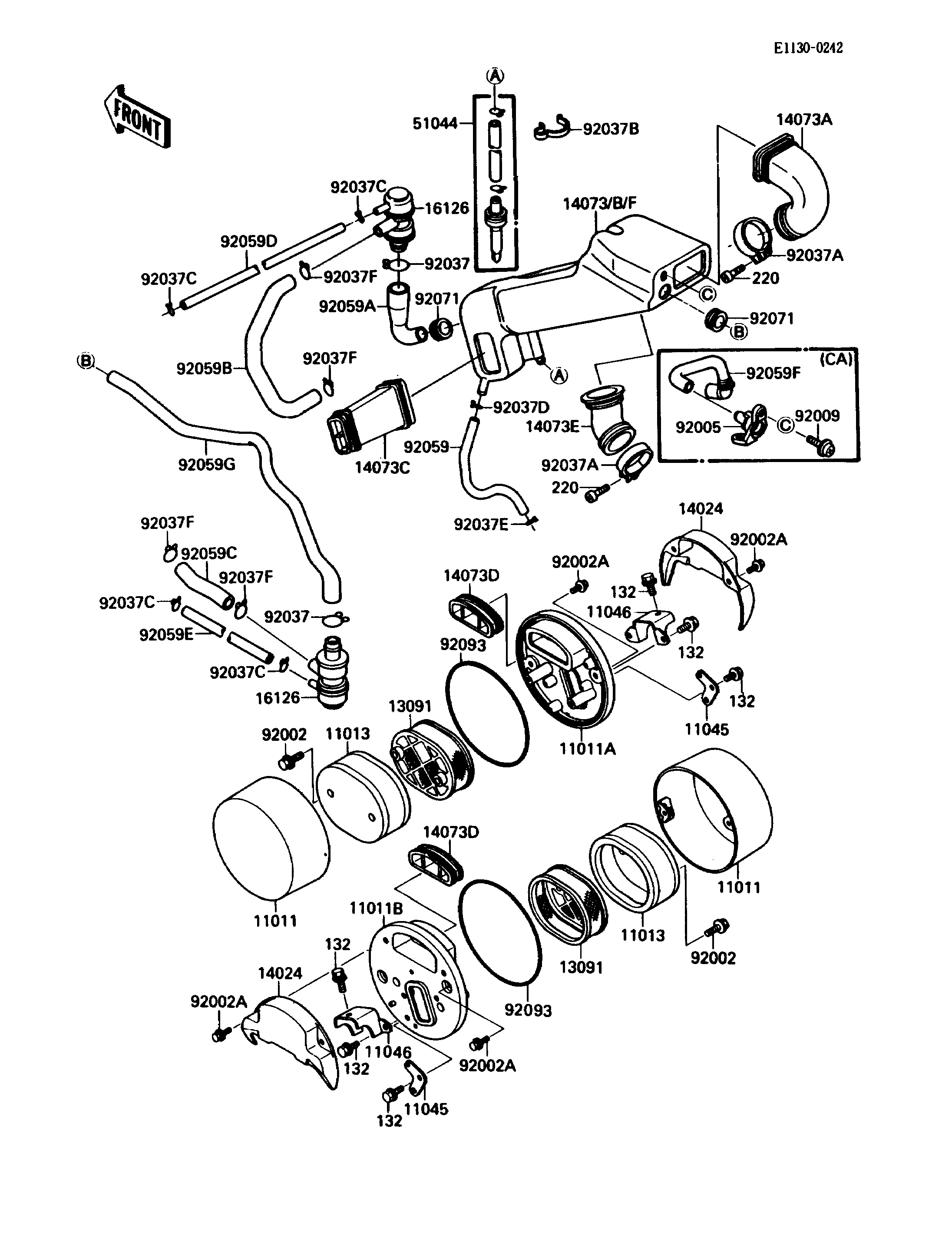

1989 Vulcan 88 SE - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER,OUTSIDE 11011 11011-1257 2
CASE-AIR FILTER,LH,INSIDE 11011A 11011-1258 1
CASE-AIR FILTER,RH,INSIDE 11011B 11011-1259 1
ELEMENT-AIR FILTER 11013 11013-1122 2
BRACKET,AIR FILTER,LWR 11045 11045-1709 2
BRACKET,AIR FILTER,UPP 11046 11046-1035 2
HOLDER,ELEMENT 13091 13091-1345 2
COVER,AIR FILTER 14024 14024-1681 2
DUCT,FR,CARBURETOR 14073A 14073-1299 1
DUCT,AIR FILTER 14073C 14073-1310 2
DUCT,INLET 14073D 14073-1319 2
DUCT,RR,CARBURETOR 14073E 14073-1326 1
DUCT,SURGE TANK 14073F 14073-1357 1
TUBE-ASSY 51044 51044-1089 1
BOLT,6X25 92002 92002-1137 4
BOLT,6X16 92002A 92002-1242 8
CLAMP,BOOT FITTING 92037A 92037-1112 2
CLAMP,HOSE 92037B 92037-1552 1
CLAMP,14MM 92037D 92037-1862 1
CLAMP,BREATHER TUBE 92037E 92037-192 1
TUBE,BREATHER 92059 92059-1777 1
SEAL,AIR FILTER 92093 92093-1240 2
BOLT-FLANGED-SMALL,6X10 132 132J0610 10
SCREW-PAN-CROS 220 220C0430 2
