Parts Diagrams |

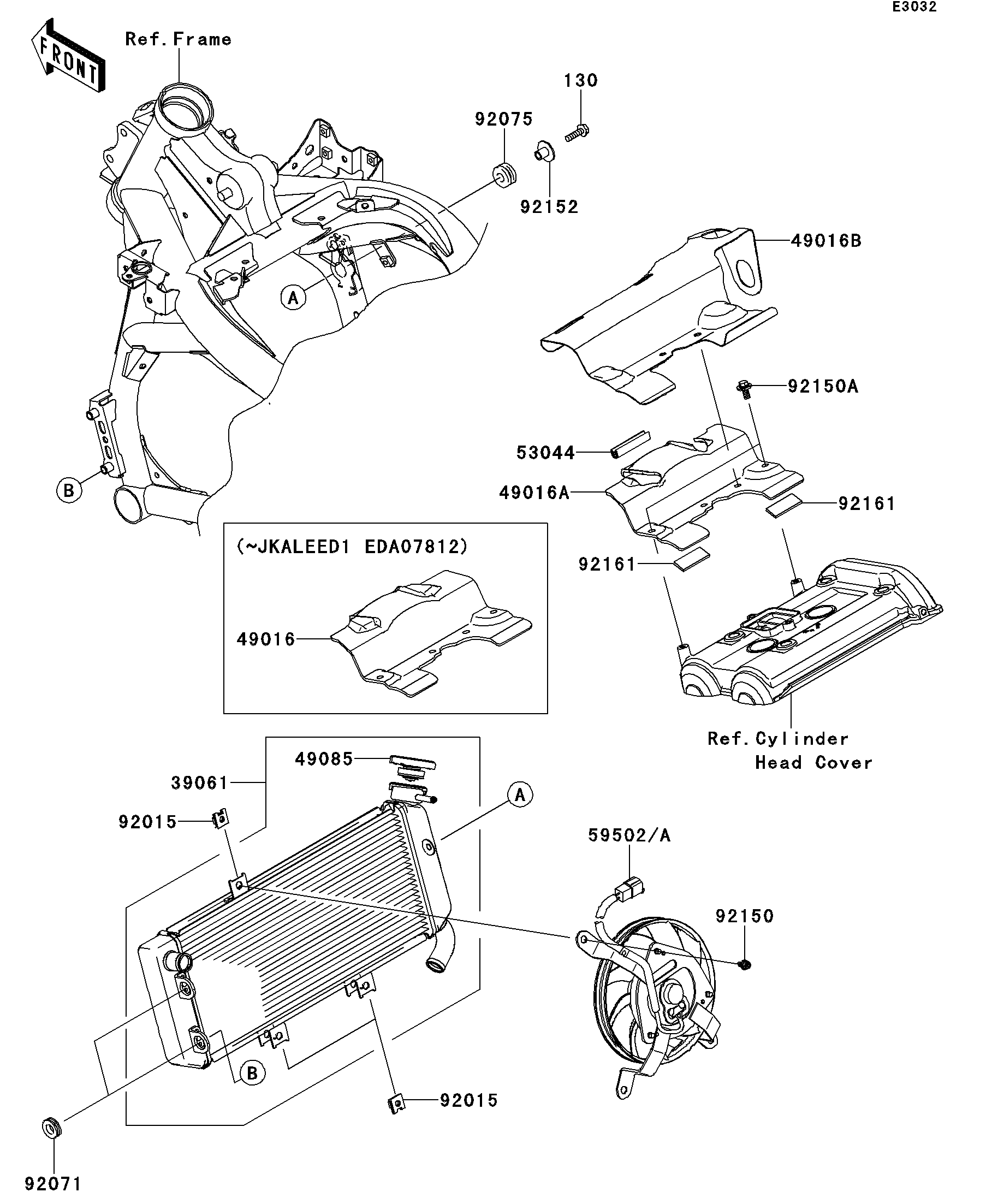

39061
49016
49016A
49016B
49085
53044
59502
59502A
92015
92015
92071
92075
92150
92150A
92152
92161
92161
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RADIATOR-ASSY | 39061 | 39061-0217 | 1 | ||
| COVER-SEAL | 49016 | 49016-0566 | 1 | ( - JKALEED1 EDA07812) | |
| COVER-SEAL | 49016A | 49016-0618 | 1 | (JKALEED1 EDA07813 - ) | |
| COVER-SEAL | 49016B | 49016-0624 | 1 | (JKALEED1 EDA07813 - ) | |
| CAP-ASSY-PRESSURE | 49085 | 49085-1066 | 1 | ||
| TRIM,L=50 | 53044 | 53044-1185 | 1 | ||
| FAN-ASSY | 59502 | 59502-0041 | 1 | ( - JKALEED1 EDA07812) | |
| FAN-ASSY | 59502A | 59502-0570 | 1 | (JKALEED1 EDA07813 - ) | |
| NUT | 92015 | 92015-1487 | 3 | ||
| GROMMET | 92071 | 92071-1115 | 2 | ||
| DAMPER | 92075 | 92075-1690 | 1 | ||
| BOLT,6X12 | 92150 | 92150-1186 | 3 | ||
| BOLT,FLANGED,6X14 | 92150A | 92150-1689 | 2 | ||
| COLLAR,6.5X10X13.1 | 92152 | 92152-0910 | 1 | ||
| DAMPER | 92161 | 92161-0301 | 2 | ||
| BOLT-FLANGED,6X22 | 130 | 130BA0622 | 1 |
| RADIATOR-ASSY | |
| REF # | 39061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SEAL | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - JKALEED1 EDA07812) |
| COVER-SEAL | |
| REF # | 49016A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (JKALEED1 EDA07813 - ) |
| COVER-SEAL | |
| REF # | 49016B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (JKALEED1 EDA07813 - ) |
| CAP-ASSY-PRESSURE | |
| REF # | 49085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM,L=50 | |
| REF # | 53044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FAN-ASSY | |
| REF # | 59502 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - JKALEED1 EDA07812) |
| FAN-ASSY | |
| REF # | 59502A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (JKALEED1 EDA07813 - ) |
| NUT | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X14 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.5X10X13.1 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X22 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
