Parts Diagrams |

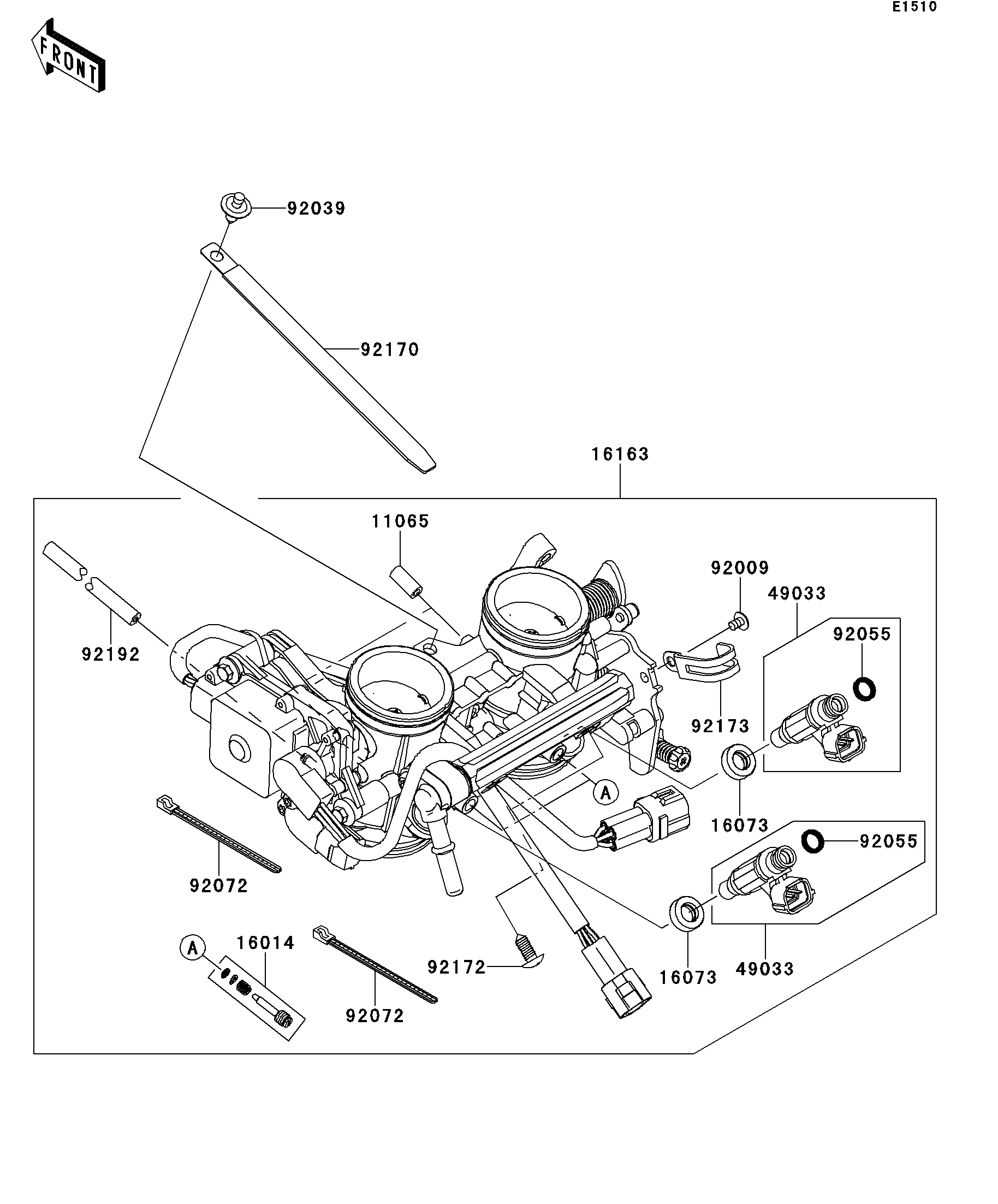

11065
16014
16073
16073
16163
49033
49033
92009
92039
92055
92055
92072
92072
92170
92172
92173
92192
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11065 | 11065-0018 | 2 | ||
| SCREW-PILOT AIR | 16014 | 16014-0002 | 2 | ||
| INSULATOR | 16073 | 16073-3707 | 2 | ||
| THROTTLE-ASSY,TTK38 | 16163 | 16163-0166 | 1 | ||
| NOZZLE-INJECTION | 49033 | 49033-0011 | 2 | ||
| SCREW,CLAMP | 92009 | 92009-1860 | 1 | ||
| RIVET | 92039 | 92039-0068 | 1 | ||
| RING-O,INJECTION NOZZLE | 92055 | 92055-1622 | 2 | ||
| BAND,SUB-HARNESS | 92072 | 92072-0012 | 2 | ||
| CLAMP,L=150 | 92170 | 92170-1114 | 1 | ||
| SCREW,PIPE INJECTION | 92172 | 92172-0064 | 2 | ||
| CLAMP | 92173 | 92173-0288 | 1 | ||
| TUBE,RUBBER,3X7X265 | 92192 | 92192-1375 | 1 |
| CAP | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PILOT AIR | |
| REF # | 16014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| INSULATOR | |
| REF # | 16073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| THROTTLE-ASSY,TTK38 | |
| REF # | 16163 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NOZZLE-INJECTION | |
| REF # | 49033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,CLAMP | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,INJECTION NOZZLE | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,SUB-HARNESS | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,L=150 | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,PIPE INJECTION | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,RUBBER,3X7X265 | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
