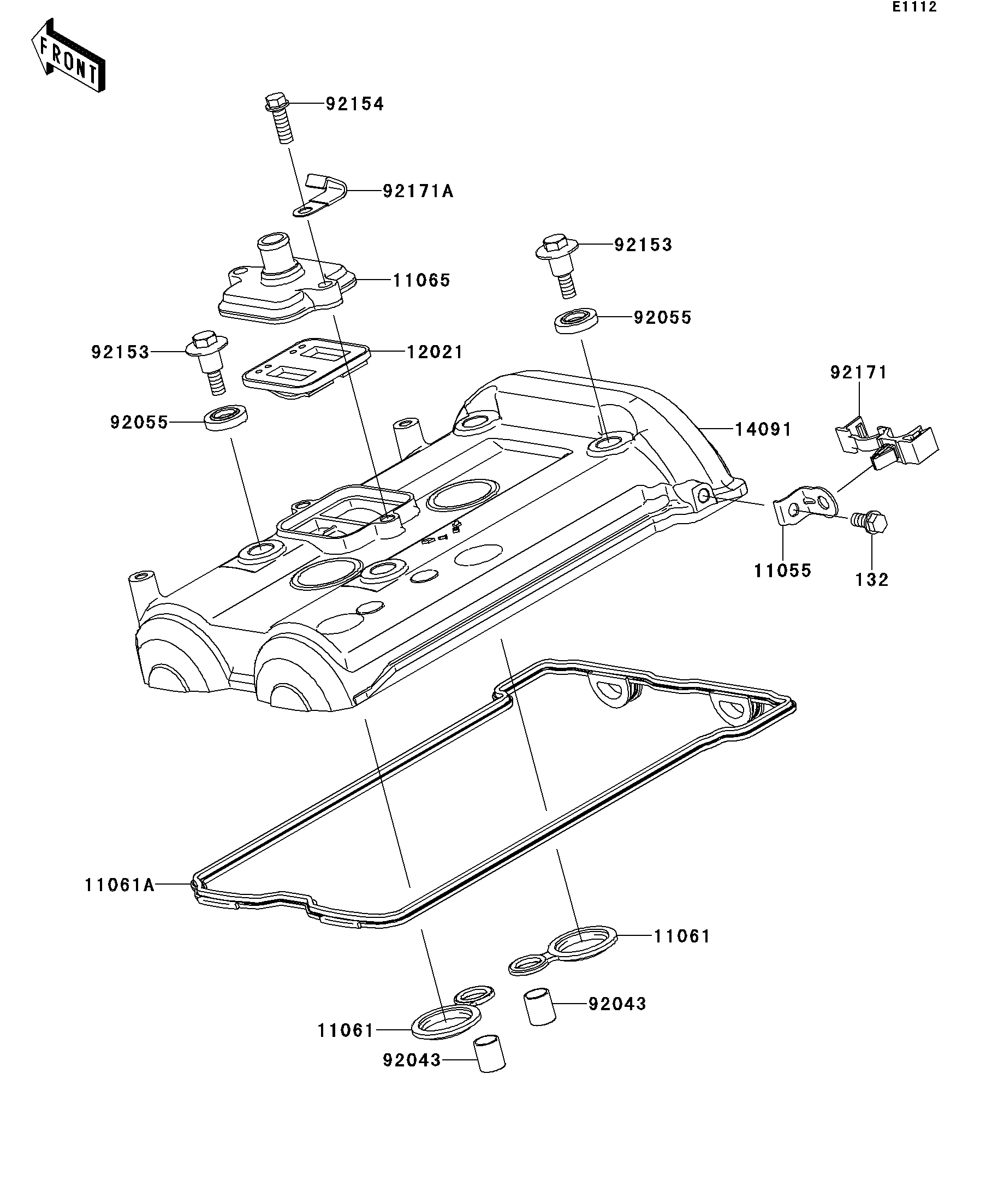

2014 VERSYS® ABS - Cylinder Head Cover
11055
11061
11061
11061A
11065
12021
14091
92043
92043
92055
92055
92153
92153
92154
92171
92171A
132
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11055 | 11055-1122 | 1 | ||
| GASKET,SPARK PLUG HOLE | 11061 | 11061-0105 | 2 | ||
| GASKET,HEAD COVER | 11061A | 11061-0170 | 1 | ||
| CAP | 11065 | 11065-0349 | 1 | ||
| VALVE-ASSY-REED | 12021 | 12021-0708 | 1 | ||
| COVER,HEAD | 14091 | 14091-1702 | 1 | ||
| PIN,10.1X12X14 | 92043 | 92043-4009 | 2 | ||
| RING-O,HEAD COVER BOLT | 92055 | 92055-0195 | 4 | ||
| BOLT,HEAD COVER | 92153 | 92153-0793 | 4 | ||
| BOLT,FLANGED,6X18 | 92154 | 92154-0784 | 2 | ||
| CLAMP,BRAKE HOSE | 92171 | 92171-0789 | 1 | ||
| CLAMP | 92171A | 92171-0813 | 1 | ||
| BOLT-FLANGED-SMALL,6X12 | 132 | 132BB0612 | 1 |
| BRACKET | |
| REF # | 11055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,SPARK PLUG HOLE | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,HEAD COVER | |
| REF # | 11061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-ASSY-REED | |
| REF # | 12021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,HEAD | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,10.1X12X14 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,HEAD COVER BOLT | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEAD COVER | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X18 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,BRAKE HOSE | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X12 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
