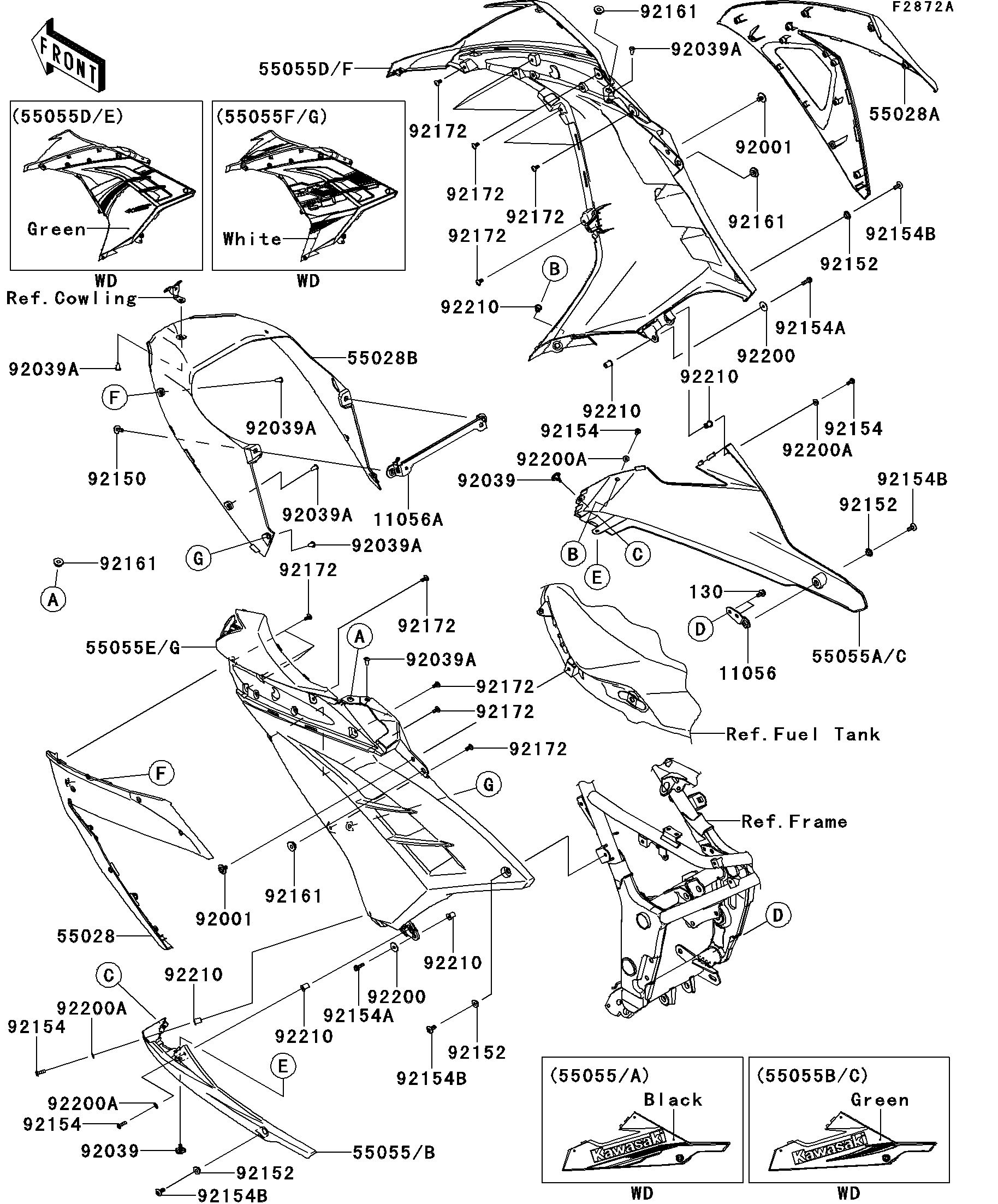

2014 NINJA® 300 ABS SE - Cowling Lowers(BEFA)

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
55028
55028A
55028B
55055
55055A
55055B
55055C
55055D
55055E
55055F
55055G
92001
92001
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92150
92152
92152
92152
92152
92154
92154
92154
92154
92154A
92154A
92154B
92154B
92154B
92154B
92161
92161
92161
92161
92172
92172
92172
92172
92172
92172
92172
92172
92172
92200
92200
92200A
92200A
92200A
92200A
92210
92210
92210
92210
92210
92210
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LWR COWL.,RH 11056 11056-1641 1
BRACKET,RADIATOR 11056A 11056-1909 1
COWLING,SIDE,LH 55028 55028-0418 1
COWLING,SIDE,RH 55028A 55028-0419 1
COWLING,FR,INNER 55028B 55028-0422 1
COWLING,LWR,LH,F.S.BLACK 55055 55055-5299-18T 1
COWLING,LWR,RH,F.S.BLACK 55055A 55055-5300-18T 1
COWLING,LWR,LH,L.GREEN 55055B 55055-5303-777 1
COWLING,LWR,RH,L.GREEN 55055C 55055-5304-777 1
COWLING,CNT,RH.L.GREEN 55055D 55055-5350-777 1
COWLING,CNT,LH.L.GREEN 55055E 55055-5351-777 1
COWLING,CNT,RH.P.S.WHITE 55055F 55055-5384-25Y 1
COWLING,CNT,LH,P.S.WHITE 55055G 55055-5385-25Y 1
BOLT,6X12 92001 92001-1771 2
RIVET,HOLE 8MM 92039 92039-0014 2
RIVET 92039A 92039-0709 9
BOLT,6X16 92150 92150-1198 2
COLLAR 92152 92152-0445 4
BOLT,SOCKET,5X16 92154 92154-0182 4
BOLT,FLANGED,5X18 92154A 92154-0785 2
BOLT,SOCKET,6X14 92154B 92154-0932 4
DAMPER 92161 92161-1531 4
SCREW,5X12 92172 92172-0821 14
WASHER,5.5X20X1.2 92200 92200-0284 2
WASHER,5.2X12X1.0 92200A 92200-0784 4
NUT,WELL,5MM 92210 92210-0498 6
BOLT-FLANGED,6X14 130 130BA0614 2
