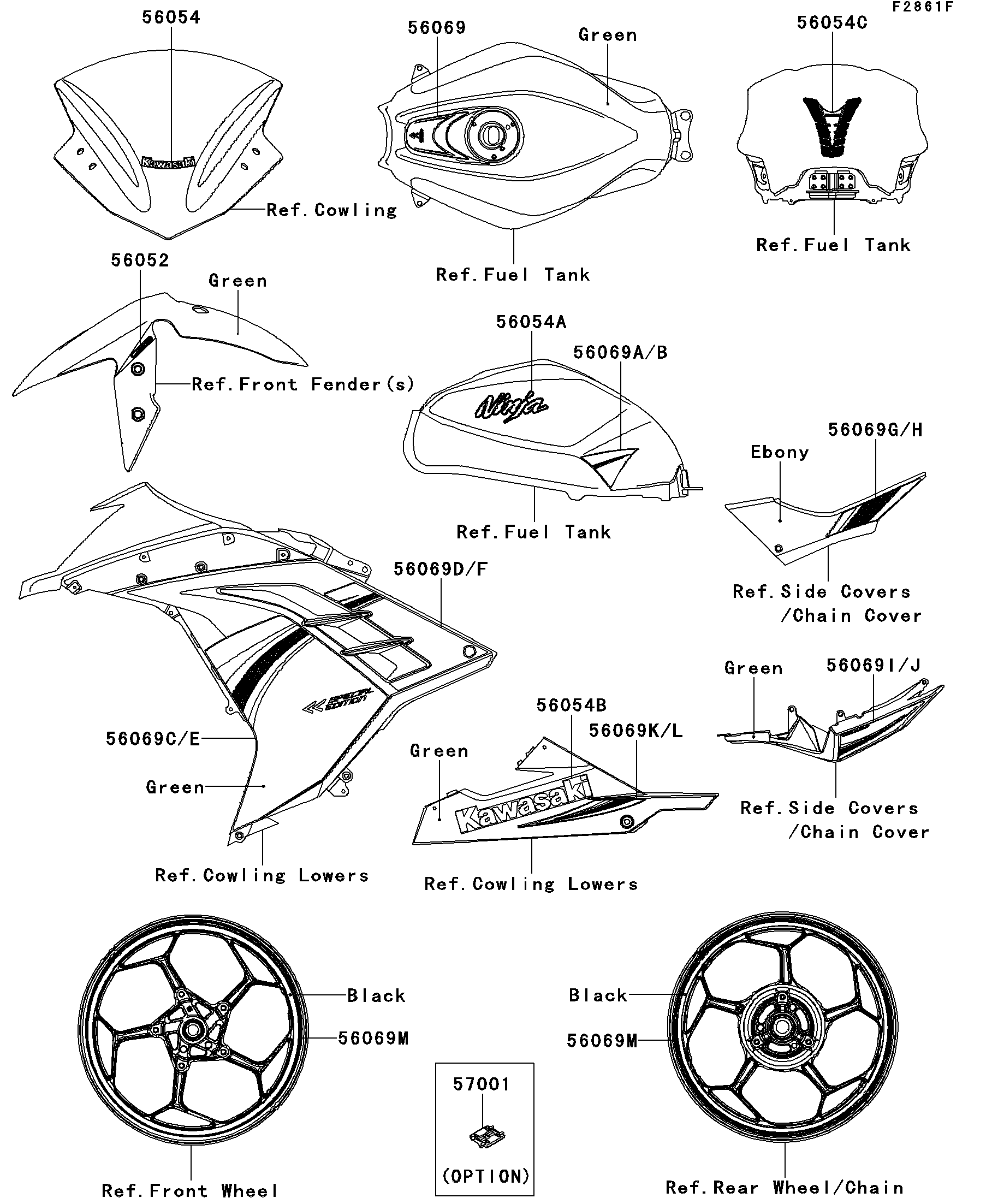

2014 NINJA® 300 ABS SE - Decals(Green)(BEFA)

DOWNLOAD PDF
SELECT A NEW PART
56052
56054
56054A
56054B
56054C
56069
56069A
56069B
56069C
56069D
56069E
56069F
56069G
56069H
56069I
56069J
56069K
56069L
56069M
56069M
57001
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FR FENDER,ABS 56052 56052-0784 2
MARK,WINDSHIELD,KAWASAKI 56054 56054-1088 1
MARK,TANK,NINJA 56054A 56054-1179 2
MARK,LWR COWLING,KAWASAKI 56054B 56054-1180 2
MARK,TANK PAD 56054C 56054-1313 1
PATTERN,TANK,UPP 56069 56069-4180 1
PATTERN,TANK,LH 56069A 56069-4181 1
PATTERN,TANK,RH 56069B 56069-4182 1
PATTERN,COWLING,FR,LH 56069C 56069-4183 1
PATTERN,COWLING,RR,LH 56069D 56069-4184 1
PATTERN,COWLING,FR,RH 56069E 56069-4185 1
PATTERN,COWLING,RR,RH 56069F 56069-4186 1
PATTERN,SIDE COWL.,LH 56069G 56069-4187 1
PATTERN,SIDE COWL.,RH 56069H 56069-4188 1
PATTERN,SEAT COVER,TAIL,LH 56069I 56069-4189 1
PATTERN,SEAT COVER,TAIL,RH 56069J 56069-4190 1
PATTERN,LWR COWL.,LH 56069K 56069-4191 1
PATTERN,LWR COWL.,RH 56069L 56069-4192 1
PATTERN,WHEEL,RED,4X1353 56069M 56069-7024 4
RIM STRIPE APPLICATOR 57001 57001-1752 AR (OPTION)
