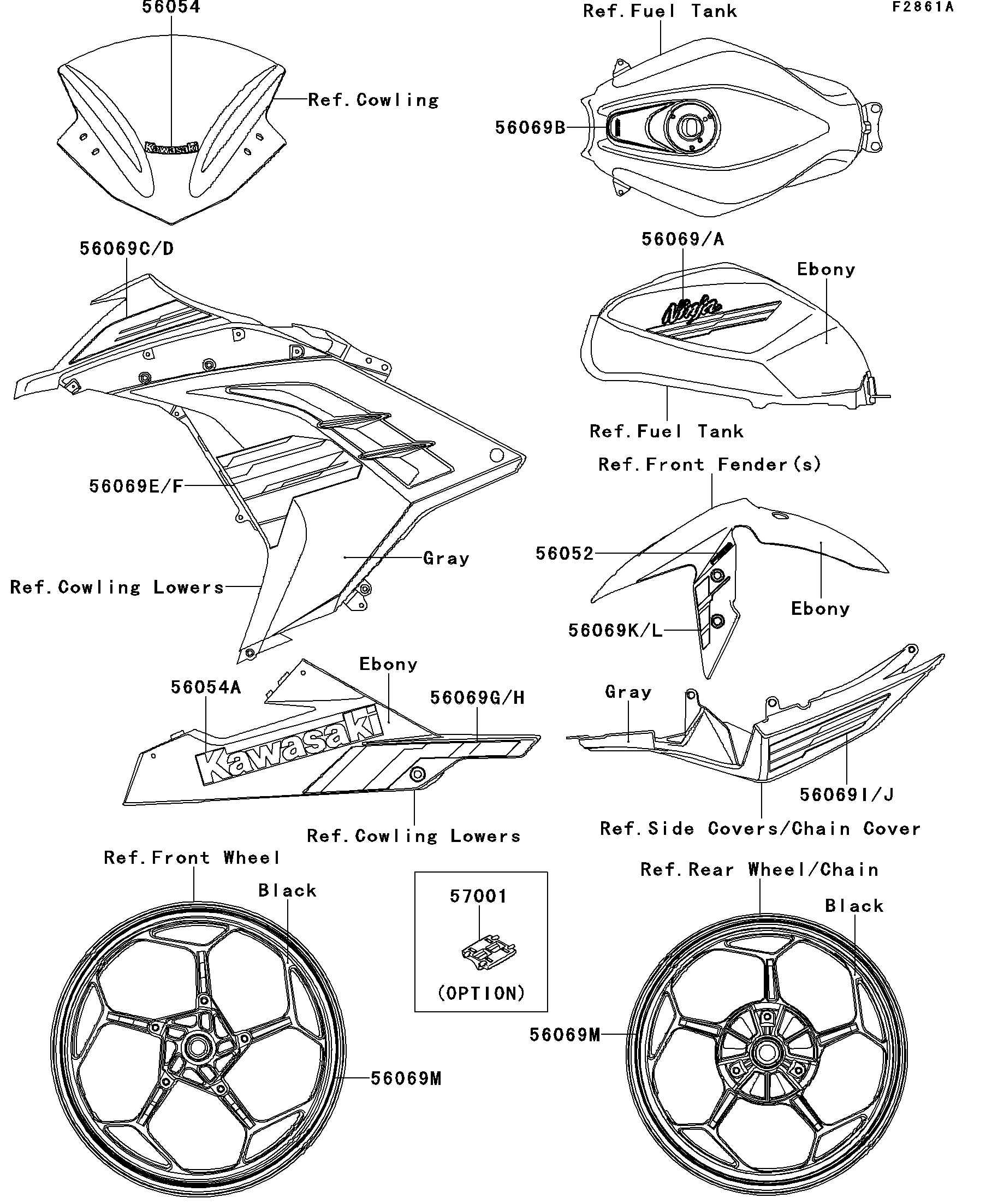

2013 Ninja® 300 ABS - Decals(Ebony)(BDFA)(CN)
56052
56054
56054A
56069
56069A
56069B
56069C
56069D
56069E
56069F
56069G
56069H
56069I
56069J
56069K
56069L
56069M
56069M
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FR FENDER,ABS | 56052 | 56052-0869 | 2 | CN | |
| MARK,WINDSHIELD,KAWASAKI | 56054 | 56054-1088 | 1 | CN | |
| MARK,LWR COWLING,KAWASAKI | 56054A | 56054-1178 | 2 | CN | |
| PATTERN,TANK,LH | 56069 | 56069-2682 | 1 | CN | |
| PATTERN,TANK,RH | 56069A | 56069-2683 | 1 | CN | |
| PATTERN,TANK,UPP | 56069B | 56069-2684 | 1 | CN | |
| PATTERN,COWLING,UPP,LH | 56069C | 56069-2685 | 1 | CN | |
| PATTERN,COWLING,UPP,RH | 56069D | 56069-2686 | 1 | CN | |
| PATTERN,COWLING,FR,LH | 56069E | 56069-2687 | 1 | CN | |
| PATTERN,COWLING,FR,RH | 56069F | 56069-2688 | 1 | CN | |
| PATTERN,COWLING,LWR,LH | 56069G | 56069-2689 | 1 | CN | |
| PATTERN,COWLING,LWR,RH | 56069H | 56069-2690 | 1 | CN | |
| PATTERN,SEAT COVER,RR,LH | 56069I | 56069-2691 | 1 | CN | |
| PATTERN,SEAT COVER,RR,RH | 56069J | 56069-2692 | 1 | CN | |
| PATTERN,FR FENDER,LH | 56069K | 56069-2693 | 1 | CN | |
| PATTERN,FR FENDER,RH | 56069L | 56069-2694 | 1 | CN | |
| PATTERN,WHEEL,RED,6X1353 | 56069M | 56069-2695 | 4 | CN | |
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | CN |
| MARK,FR FENDER,ABS | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,WINDSHIELD,KAWASAKI | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,LWR COWLING,KAWASAKI | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,TANK,LH | |
| REF # | 56069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,TANK,RH | |
| REF # | 56069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,TANK,UPP | |
| REF # | 56069B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,COWLING,UPP,LH | |
| REF # | 56069C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,COWLING,UPP,RH | |
| REF # | 56069D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,COWLING,FR,LH | |
| REF # | 56069E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,COWLING,FR,RH | |
| REF # | 56069F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,COWLING,LWR,LH | |
| REF # | 56069G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,COWLING,LWR,RH | |
| REF # | 56069H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SEAT COVER,RR,LH | |
| REF # | 56069I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SEAT COVER,RR,RH | |
| REF # | 56069J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FR FENDER,LH | |
| REF # | 56069K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FR FENDER,RH | |
| REF # | 56069L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,WHEEL,RED,6X1353 | |
| REF # | 56069M |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CN |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | CN |
| REMARKS | |
