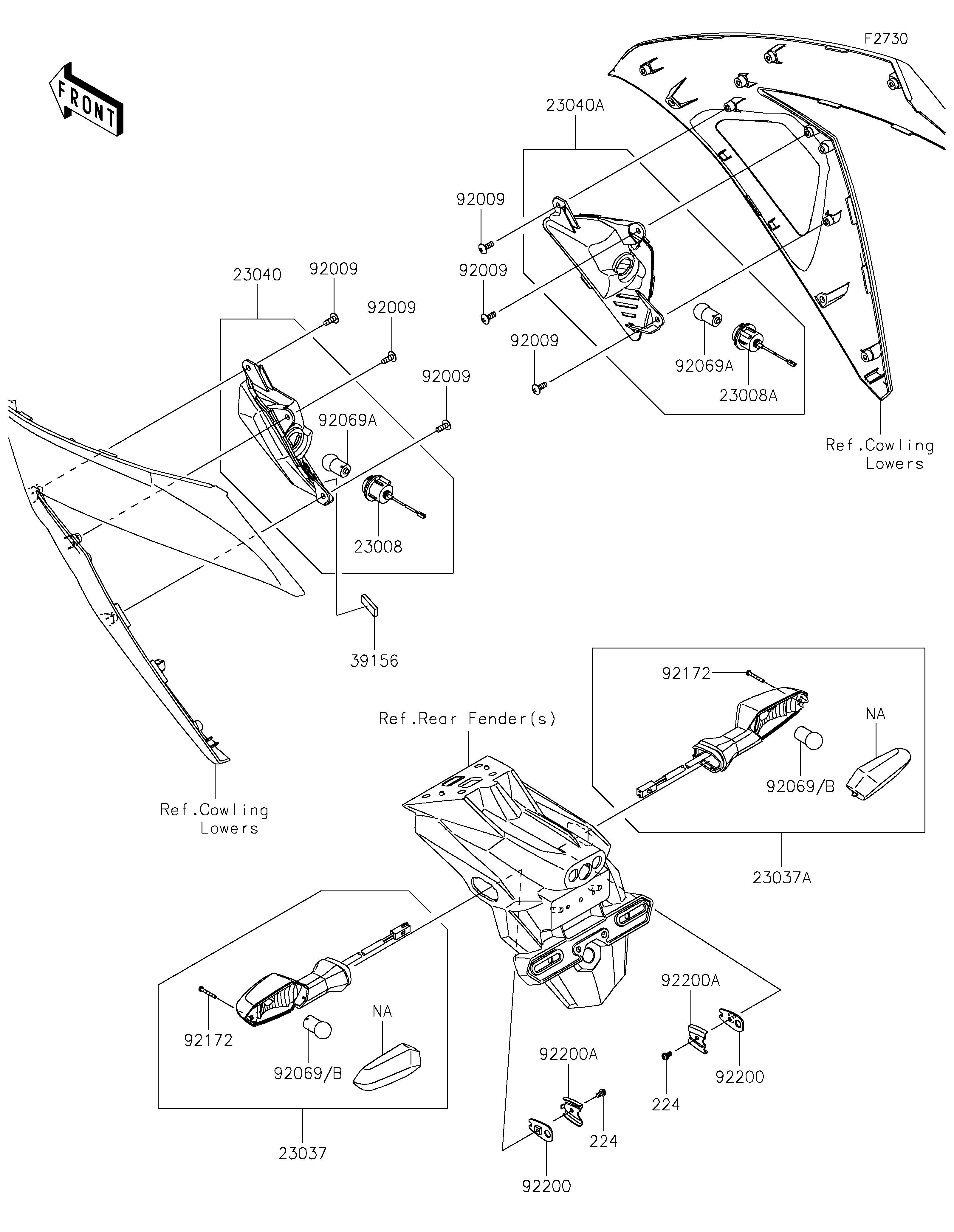

2014 NINJA® 300 ABS SE - Turn Signals

DOWNLOAD PDF
SELECT A NEW PART
23008
23008A
23037
23037A
23040
23040A
39156
92009
92009
92009
92009
92009
92009
92069A
92069A
92069B
92069B
92172
92172
92200
92200
92200A
92200A
224
224
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SOCKET-ASSY,FR,LH 23008 23008-0139 1
SOCKET-ASSY,FR,RH 23008A 23008-0144 1
LAMP-ASSY-SIGNAL,RR,LH 23037 23037-0247 1
LAMP-ASSY-SIGNAL,RR,RH 23037A 23037-0248 1
LAMP-SIGNAL,FR,LH 23040 23040-0107 1
LAMP-SIGNAL,FR,RH 23040A 23040-0108 1
PAD,10X30X4 39156 39156-0927 1
SCREW,TAPPING,5X14 92009 92009-1197 6
BULB,12V 10W 92069A 92069-0058 2
BULB,12V 10W 92069B 92069-0076 2
SCREW,2.9X22 92172 92172-0395 2
WASHER,SIGNAL LAMP 92200 92200-0164 2
WASHER,SIGNAL LAMP 92200A 92200-0165 2
SCREW-PAN-WP-CROS,4X8 224 224AB0408 2
