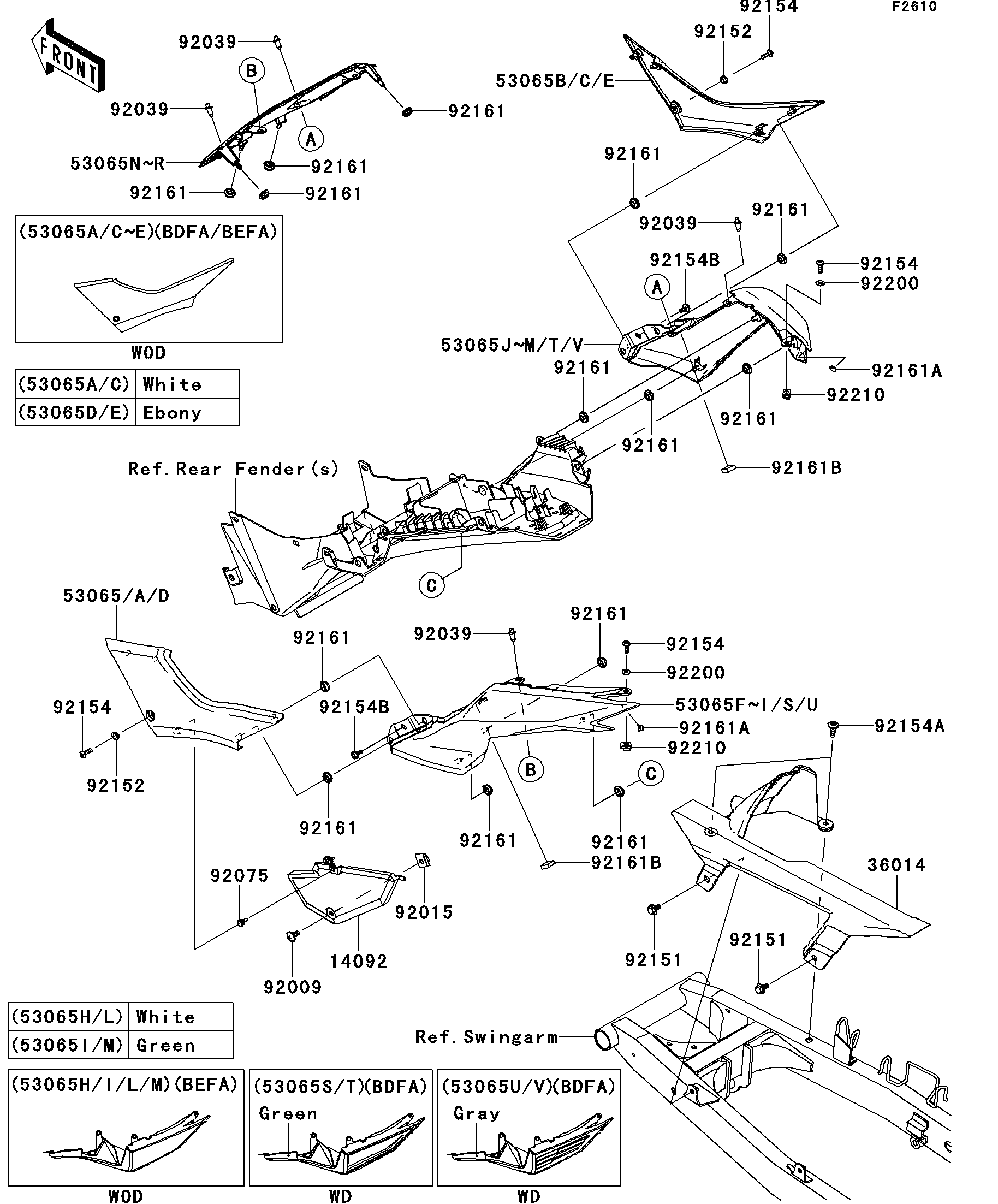

2014 NINJA® 300 ABS SE - Side Covers/Chain Cover
14092
14092
36014
36014
53065A
53065A
53065C
53065C
53065D
53065D
53065E
53065E
53065H
53065H
53065I
53065I
53065L
53065L
53065M
53065M
53065N
53065N
53065P
53065P
92009
92009
92015
92015
92039
92039
92039
92039
92039
92039
92039
92039
92075
92075
92151
92151
92151
92151
92152
92152
92152
92152
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154B
92154B
92154B
92154B
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92161B
92161B
92200
92200
92200
92200
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,FILTER CAP | 14092 | 14092-0954 | 1 | ||
| CASE-CHAIN | 36014 | 36014-0555 | 1 | ||
| COVER SEAT,SIDE,LH,P.S.WHITE | 53065A | 53065-0026-25Y | 1 | _________________________________________CN | |
| COVER SEAT,SIDE,RH,P.S.WHITE | 53065C | 53065-0027-25Y | 1 | _________________________________________CN | |
| COVER SEAT,SIDE,LH,EBONY | 53065D | 53065-0058-H8 | 1 | ||
| COVER SEAT,SIDE,RH,EBONY | 53065E | 53065-0059-H8 | 1 | ||
| COVER SEAT,TAIL,LH,P.S.WHITE | 53065H | 53065-0060-25Y | 1 | _________________________________________CN | |
| COVER SEAT,TAIL,LH,L.GREEN | 53065I | 53065-0060-777 | 1 | ||
| COVER SEAT,TAIL,RH,P.S.WHITE | 53065L | 53065-0061-25Y | 1 | _________________________________________CN | |
| COVER SEAT,TAIL,RH,L.GREEN | 53065M | 53065-0061-777 | 1 | ||
| COVER SEAT,CNT,EBONY | 53065N | 53065-0062-H8 | 1 | ||
| COVER SEAT,CNT,P.S.WHITE | 53065P | 53065-0062-25Y | 1 | _________________________________________CN | |
| SCREW,6X14 | 92009 | 92009-1662 | 1 | ||
| NUT,CLAMP,6MM | 92015 | 92015-1531 | 1 | ||
| RIVET | 92039 | 92039-0709 | 4 | ||
| DAMPER | 92075 | 92075-1808 | 1 | ||
| BOLT,FLANGED,6X13 | 92151 | 92151-1703 | 2 | ||
| COLLAR,5.8X8.2X4.7 | 92152 | 92152-1697 | 2 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-0182 | 4 | ||
| BOLT,SOCKET,6X20 | 92154A | 92154-0918 | 2 | ||
| BOLT,FLANGED,5X12 | 92154B | 92154-1003 | 2 | ||
| DAMPER | 92161 | 92161-0631 | 14 | ||
| DAMPER | 92161A | 92161-1459 | 2 | ||
| DAMPER,15X15X5 | 92161B | 92161-1522 | 2 | ||
| WASHER,5.2X12X1.0 | 92200 | 92200-0784 | 2 | ||
| NUT,5MM | 92210 | 92210-0817 | 2 |
