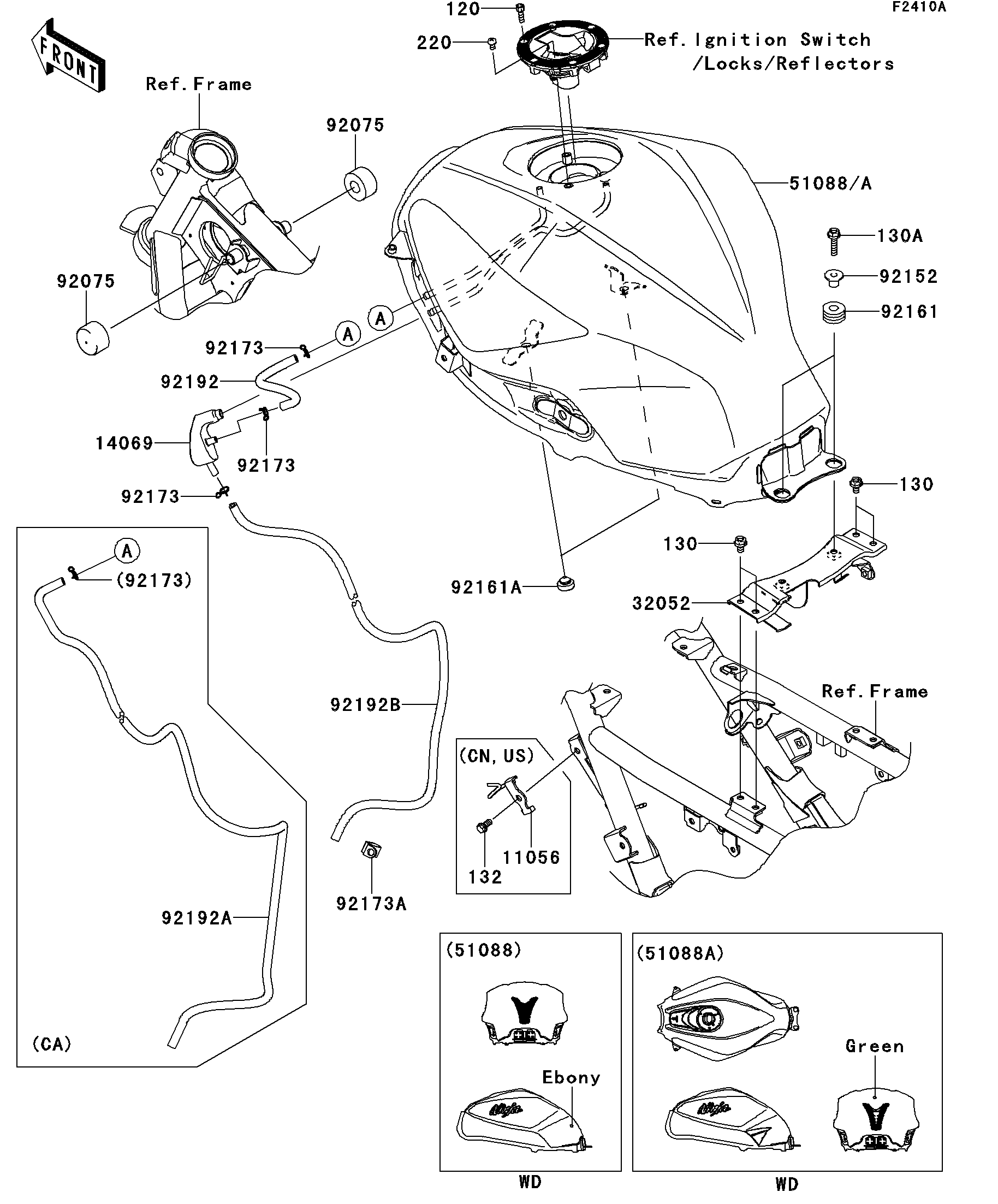

2014 NINJA® 300 ABS SE - Fuel Tank(BEFA)

DOWNLOAD PDF
SELECT A NEW PART
11056
14069
32052
51088
51088A
92075
92075
92152
92161
92161A
92173
92173
92173
92173A
92192
92192A
92192B
120
130
130
130A
132
220
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,DRAIN TUBE 11056 11056-1633 1 CN,US
BREATHER 14069 14069-0011 1 CN,US
BRACKET-TANK 32052 32052-0733 1
TANK-COMP-FUEL,EBONY 51088 51088-5215-H8 1
TANK-COMP-FUEL,L.GREEN 51088A 51088-5216-777 1
DAMPER,FUEL TANK,FR 92075 92075-1115 2
COLLAR 92152 92152-0332 2
DAMPER,10X24X12 92161 92161-0927 2
DAMPER 92161A 92161-1473 2
CLAMP 92173 92173-0049 1 CA
CLAMP 92173 92173-0049 3 CN,US
CLAMP 92173A 92173-0978 1
TUBE,FUEL 92192 92192-0310 1 CN,US
TUBE,DRAIN 92192A 92192-1096 1 CA
TUBE,5X9X900 92192B 92192-1237 1 CN,US
BOLT-SOCKET,5X16 120 120CB0516 6
BOLT-FLANGED,6X10 130 130BA0610 4
BOLT-FLANGED,6X25 130A 130BA0625 2
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1 CN,US
SCREW-PAN-CROS,5X8 220 220AB0508 1
