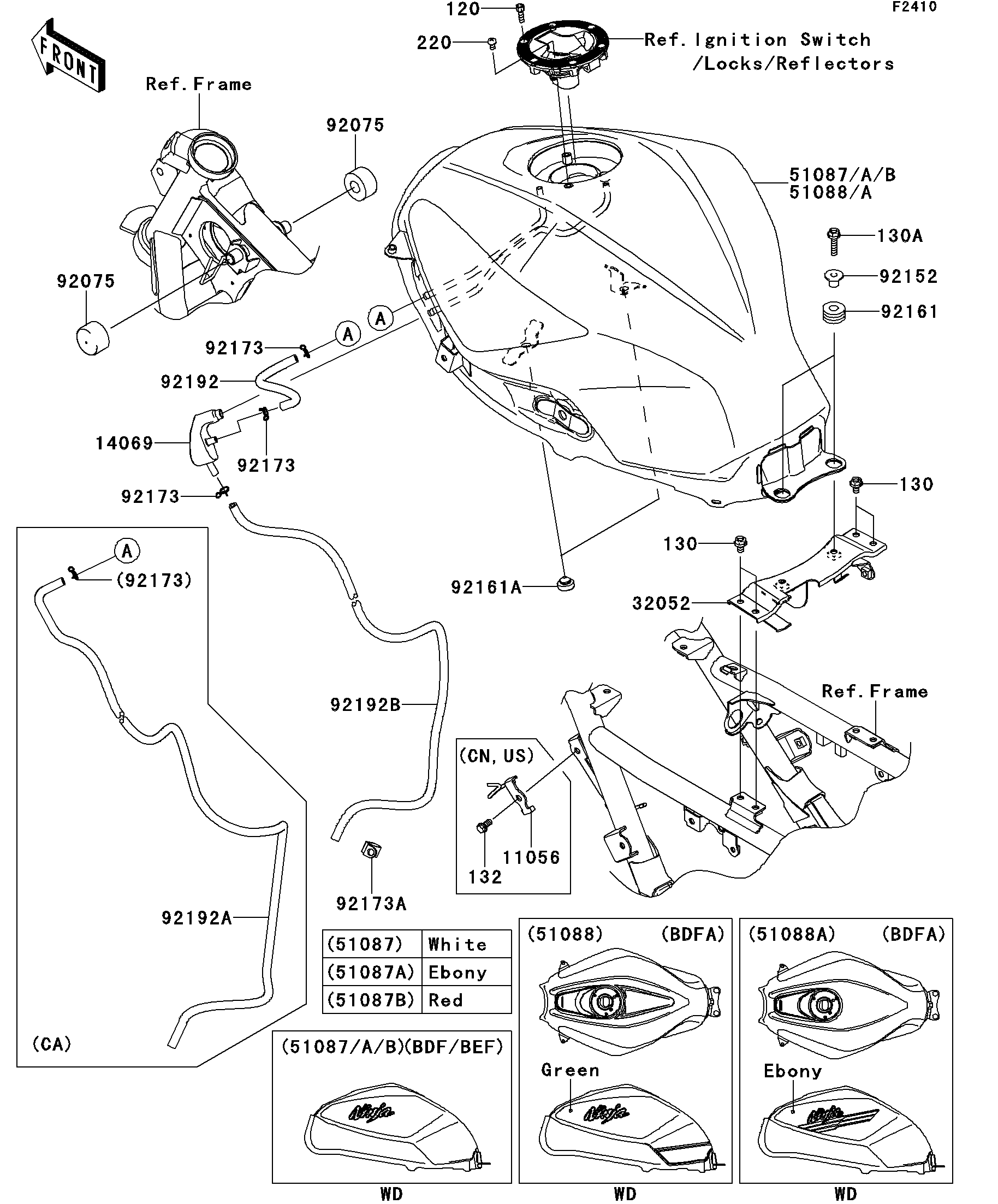

2013 Ninja® 300 ABS - Fuel Tank(BDF-BEF)
32052
32052
51088
51088
51088A
51088A
92075
92075
92075
92075
92152
92152
92161
92161
92161A
92161A
92173A
92173A
92192A
92192A
120
120
130
130
130
130
130A
130A
220
220
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-TANK | 32052 | 32052-0733 | 1 | ||
| TANK-COMP-FUEL,L.GREEN | 51088 | 51088-5059-777 | 1 | ||
| TANK-COMP-FUEL,EBONY | 51088A | 51088-5063-H8 | 1 | CN | |
| DAMPER,FUEL TANK,FR | 92075 | 92075-1115 | 2 | ||
| COLLAR | 92152 | 92152-0332 | 2 | ||
| DAMPER,10X24X12 | 92161 | 92161-0927 | 2 | ||
| DAMPER | 92161A | 92161-1473 | 2 | ||
| CLAMP | 92173A | 92173-0978 | 1 | ||
| TUBE,DRAIN | 92192A | 92192-1096 | 1 | CA | |
| BOLT-SOCKET,5X16 | 120 | 120CB0516 | 6 | ||
| BOLT-FLANGED,6X10 | 130 | 130BA0610 | 4 | ||
| BOLT-FLANGED,6X25 | 130A | 130BA0625 | 2 | ||
| SCREW-PAN-CROS,5X8 | 220 | 220AB0508 | 1 |
