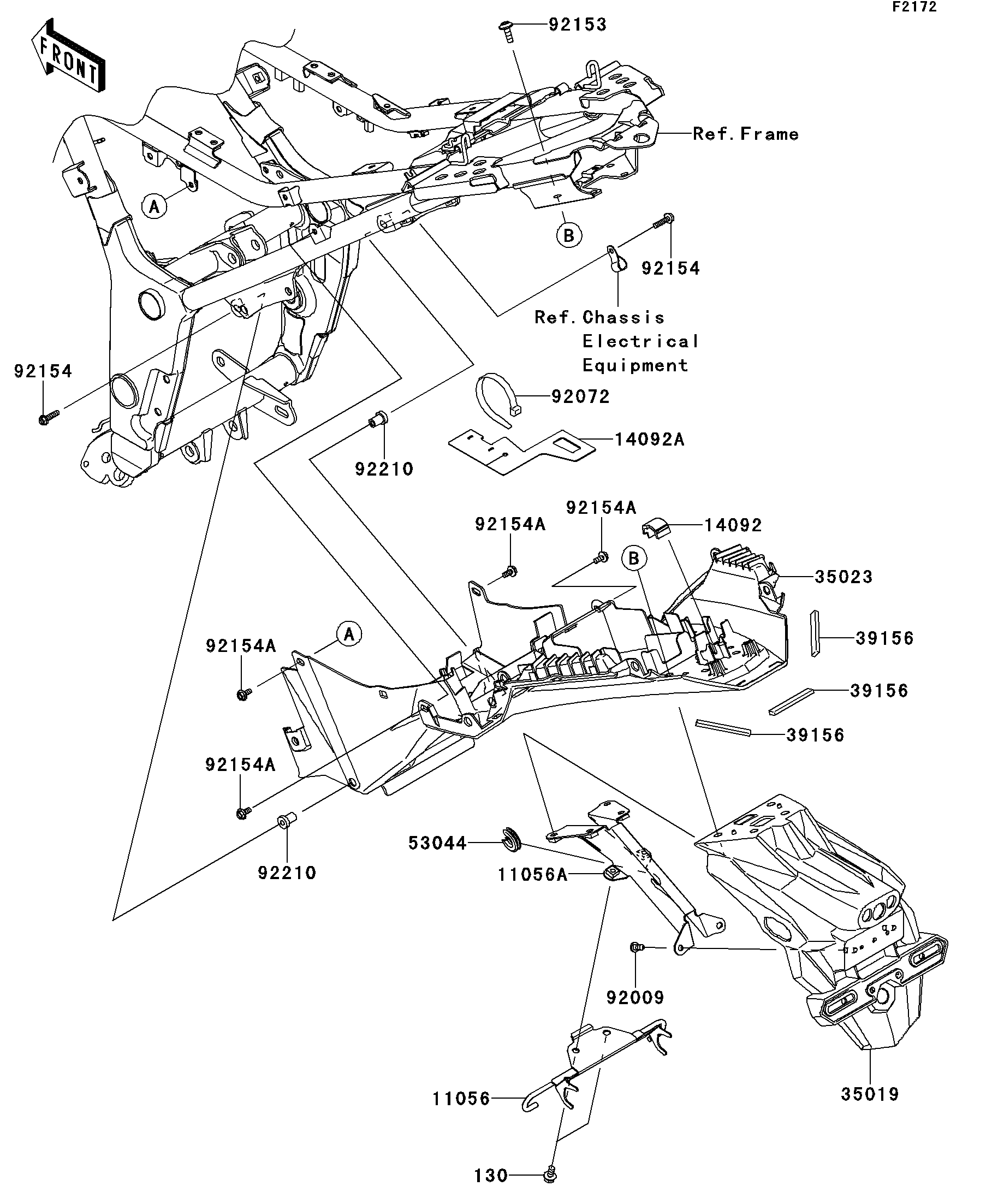

2014 NINJA® 300 ABS SE - Rear Fender(s)
11056
11056A
14092
14092A
35019
35023
39156
39156
39156
53044
92009
92072
92153
92154
92154
92154A
92154A
92154A
92154A
92210
92210
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,FLAP,HOOK | 11056 | 11056-1569 | 1 | ||
| BRACKET,FLAP | 11056A | 11056-2310 | 1 | ||
| COVER | 14092 | 14092-0951 | 1 | ||
| COVER,RR FENDER | 14092A | 14092-1079 | 1 | ||
| FLAP | 35019 | 35019-0566 | 1 | ||
| FENDER-REAR | 35023 | 35023-0340 | 1 | ||
| PAD,9X60X4 | 39156 | 39156-0820 | 3 | ||
| TRIM | 53044 | 53044-0565 | 1 | ||
| SCREW,6X14 | 92009 | 92009-3845 | 2 | ||
| BAND,L=202 | 92072 | 92072-1195 | 1 | ||
| BOLT,6X18 | 92153 | 92153-0816 | 4 | ||
| BOLT,FLANGED,5X20 | 92154 | 92154-1002 | 2 | ||
| BOLT,FLANGED,5X12 | 92154A | 92154-1003 | 4 | ||
| NUT,5MM | 92210 | 92210-0001 | 2 | ||
| BOLT-FLANGED,6X12 | 130 | 130BA0612 | 2 |
