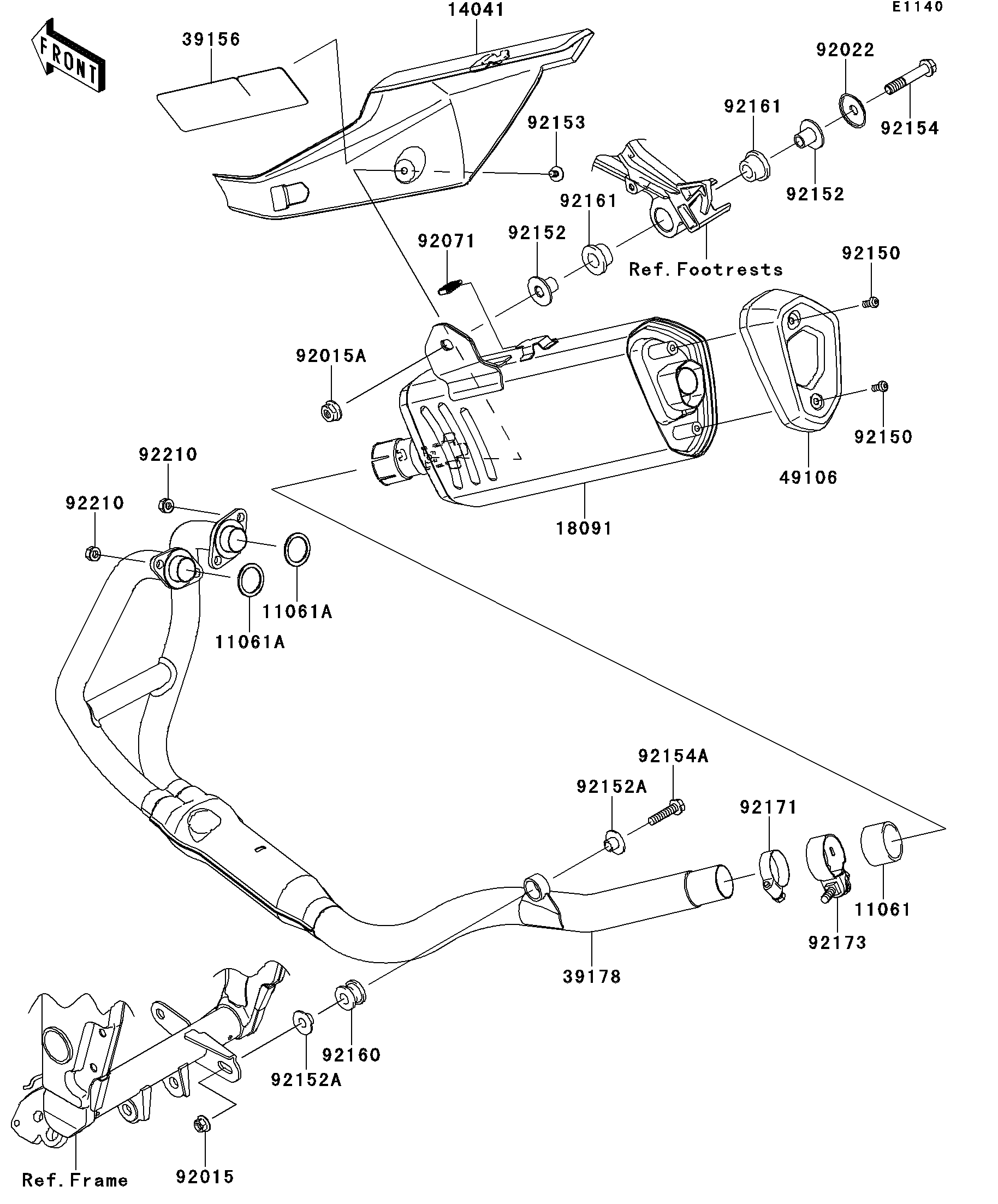

2014 NINJA® 300 ABS SE - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
11061A
14041
18091
39156
39178
49106
92015
92015A
92022
92071
92150
92150
92152
92152
92152A
92152A
92153
92154
92154A
92160
92161
92161
92171
92173
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE CONNECTING 11061 11061-0432 1
GASKET,EXHAUST PIPE 11061A 11061-0791 2
COVER-COMP,MUFFLER 14041 14041-0564 1
BODY-COMP-MUFFLER 18091 18091-0860 1
PAD 39156 39156-0928 1
MANIFOLD-COMP-EXHAUST 39178 39178-0179 1
COVER-MUFFLER,END 49106 49106-0727 1
NUT,FLANGED,8MM 92015 92015-1014 1
NUT,FLANGED,10MM 92015A 92015-1387 1
WASHER 92022 92022-289 1
GROMMET 92071 92071-0712 1
BOLT,SOCKET,6X14 92150 92150-1836 2
COLLAR 92152 92152-1682 2
COLLAR 92152A 92152-1692 2
BOLT,SOCKET,6X10 92153 92153-1800 1
BOLT,FLANGED,10X55 92154 92154-0070 1
BOLT,FLANGED,8X35 92154A 92154-1061 1
DAMPER,MUFFLER MOUNT 92160 92160-1116 1
DAMPER 92161 92161-1497 2
CLAMP 92171 92171-0059 1
CLAMP,42MM 92173 92173-0942 1
NUT,8MM 92210 92210-1242 4
