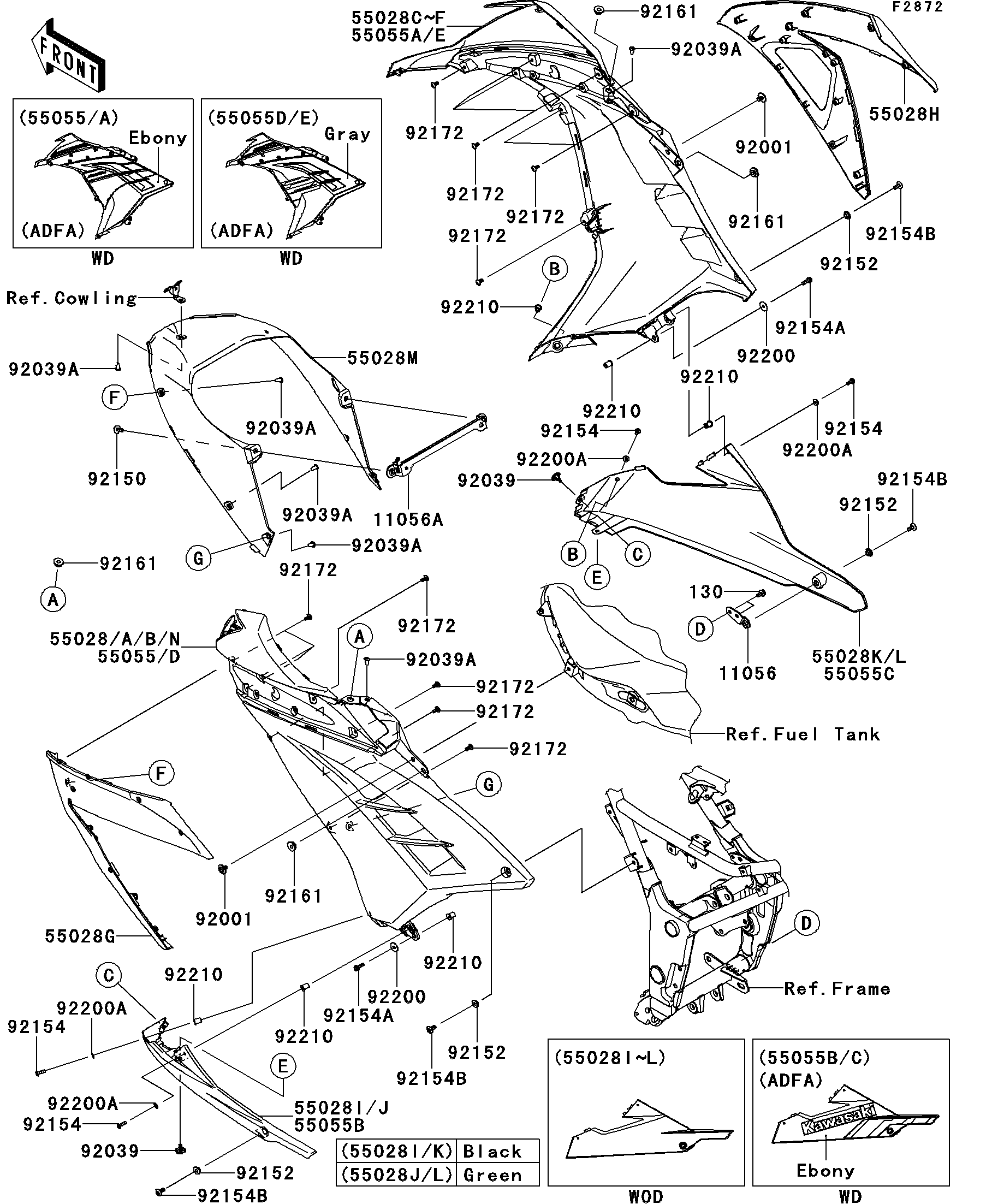

2014 Ninja® 300 - Cowling Lowers(ADF-AEF)
11056
11056
11056A
11056A
55028
55028
55028C
55028C
55028F
55028F
55028G
55028G
55028H
55028H
55028I
55028I
55028K
55028K
55028M
55028M
55028N
55028N
92001
92001
92001
92001
92039
92039
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92150
92150
92152
92152
92152
92152
92152
92152
92152
92152
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92154B
92154B
92154B
92154B
92161
92161
92161
92161
92161
92161
92161
92161
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LWR COWL.,RH | 11056 | 11056-1641 | 1 | ||
| BRACKET,RADIATOR | 11056A | 11056-1909 | 1 | ||
| COWLING,CNT,LH,EBONY | 55028 | 55028-0416-H8 | 1 | ||
| COWLING,CNT,RH,EBONY | 55028C | 55028-0417-H8 | 1 | ||
| COWLING,CNT,RH,P.S.WHITE | 55028F | 55028-0417-25Y | 1 | ||
| COWLING,SIDE,LH | 55028G | 55028-0418 | 1 | ||
| COWLING,SIDE,RH | 55028H | 55028-0419 | 1 | ||
| COWLING,LWR,LH,F.S.BLACK | 55028I | 55028-0420-18T | 1 | ||
| COWLING,LWR,RH,F.S.BLACK | 55028K | 55028-0421-18T | 1 | ||
| COWLING,FR,INNER | 55028M | 55028-0422 | 1 | ||
| COWLING,CNT,LH,P.S.WHITE | 55028N | 55028-0475-25Y | 1 | ||
| BOLT,6X12 | 92001 | 92001-1771 | 2 | ||
| RIVET,HOLE 8MM | 92039 | 92039-0014 | 2 | ||
| RIVET | 92039A | 92039-0709 | 9 | ||
| BOLT,6X16 | 92150 | 92150-1198 | 2 | ||
| COLLAR | 92152 | 92152-0445 | 4 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-0182 | 4 | ||
| BOLT,FLANGED,5X18 | 92154A | 92154-0785 | 2 | ||
| BOLT,SOCKET,6X14 | 92154B | 92154-0932 | 4 | ||
| DAMPER | 92161 | 92161-1531 | 4 | ||
| SCREW,5X12 | 92172 | 92172-0821 | 14 | ||
| WASHER,5.5X20X1.2 | 92200 | 92200-0284 | 2 | ||
| WASHER,5.2X12X1.0 | 92200A | 92200-0784 | 4 | ||
| NUT,WELL,5MM | 92210 | 92210-0498 | 6 | ||
| BOLT-FLANGED,6X14 | 130 | 130BA0614 | 2 |
