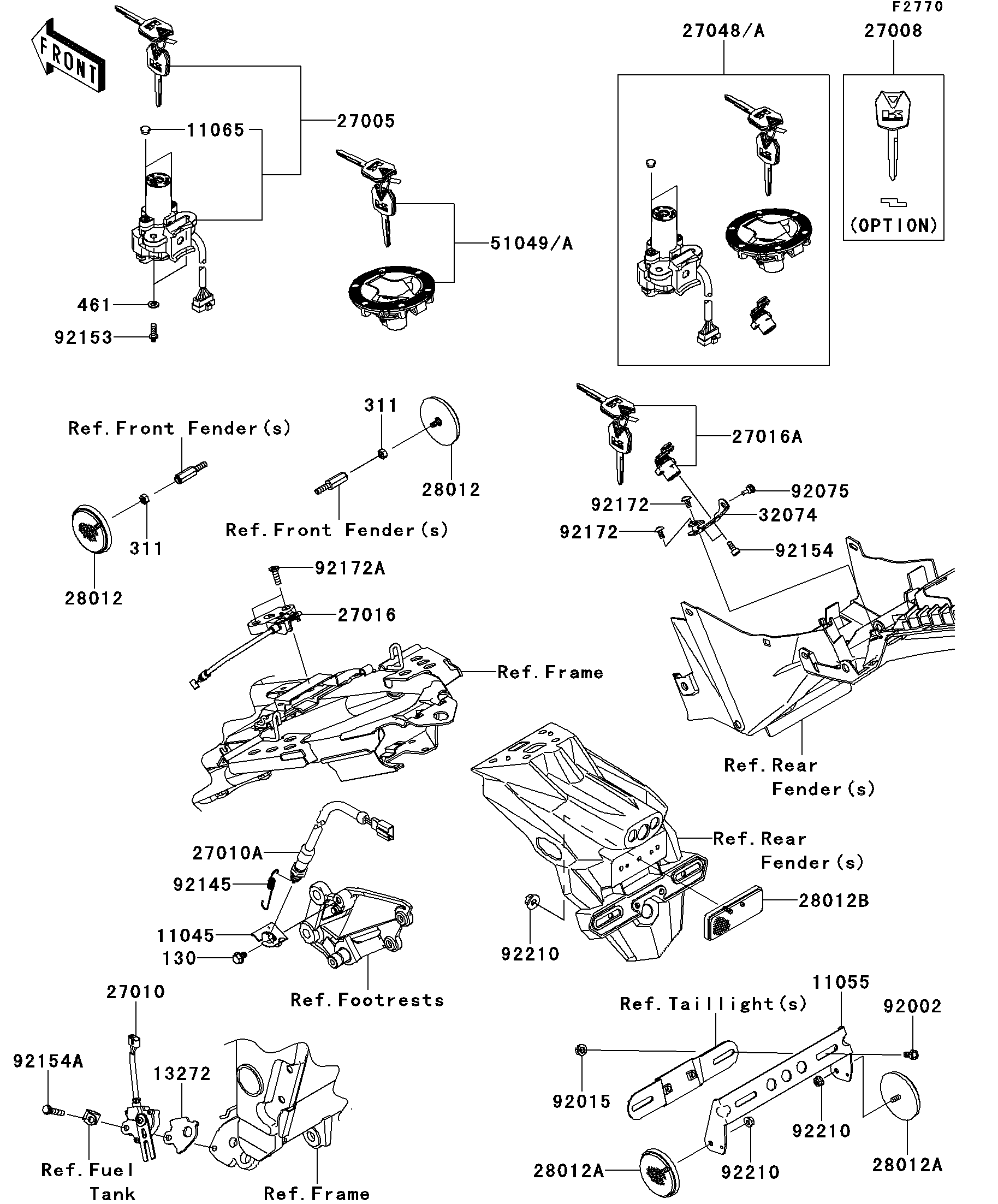

2014 Ninja® 300 - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
11045
11055
11065
13272
27005
27008
27010
27010A
27016
27016A
27048
28012
28012
28012A
28012A
28012B
32074
51049A
92002
92015
92075
92145
92153
92154
92154A
92172
92172
92172A
92210
92210
92210
130
311
311
461
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REAR BRAKE SWITCH 11045 11045-1641 1
BRACKET,REFLECTOR 11055 11055-1092 1
CAP,IGNITION SWITCH 11065 11065-0708 2
PLATE 13272 13272-1330 1
SWITCH-ASSY-IGNITION 27005 27005-5144 1
KEY-LOCK,BLANK 27008 27008-0053 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0097 1
SWITCH,REAR BRAKE 27010A 27010-0726 1
LOCK-ASSY,SEAT STRIKER 27016 27016-0075 1
LOCK-ASSY 27016A 27016-5378 1
SWITCH-ASSY 27048 27048-5008 1 _________________________________________CN,US
REFLECTOR-REFLEX,FR,SIDE 28012 28012-0001 2
REFLECTOR-REFLEX 28012A 28012-0002 2
REFLECTOR-REFLEX 28012B 28012-1077 1
BRACKET-LOCK 32074 32074-0018 1
CAP-TANK,FUEL 51049A 51049-5007 1 _________________________________________CN,US
BOLT,6X12 92002 92002-1132 2
NUT,FLANGED,6MM 92015 92015-1367 2
DAMPER 92075 92075-1808 1
SPRING,BRAKE LAMP SWITCH 92145 92145-0683 1
BOLT,TORX,6X16 92153 92153-0967 2
BOLT,SOCKET,6X12 92154 92154-0933 2
BOLT,FLANGED,6X30 92154A 92154-1040 1
SCREW,TAPPING,5X10 92172 92172-0262 2
SCREW,6X20 92172A 92172-0786 2
NUT,FLANGED,5MM 92210 92210-0007 3
BOLT-FLANGED,6X10 130 130BA0610 1
NUT-HEX 311 311AB0500 2
WASHER-SPRING,6MM 461 461DA0600 2
