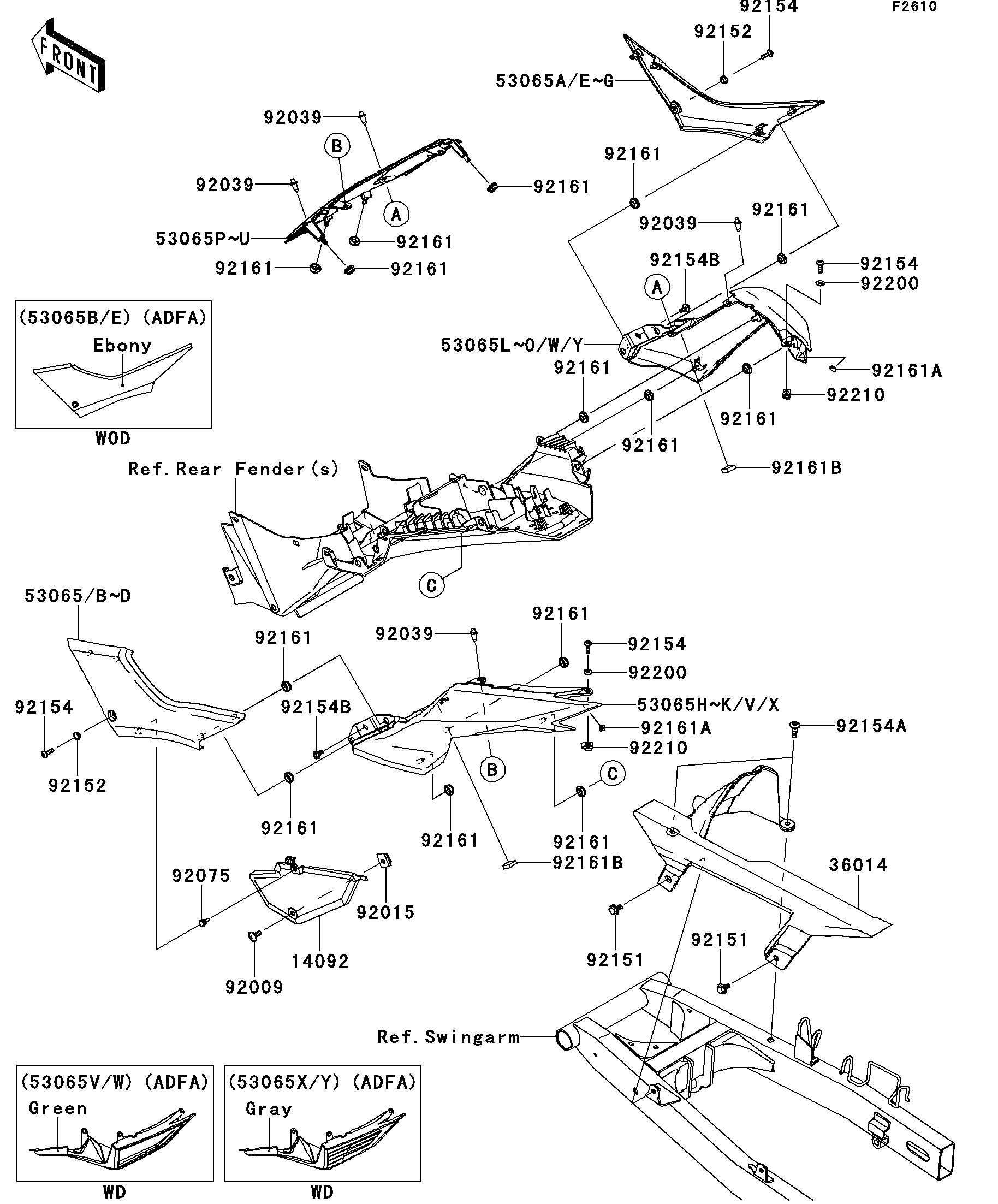

2014 Ninja® 300 - Side Covers/Chain Cover(ADF-AEF)
14092
14092
36014
36014
53065
53065
53065A
53065A
53065B
53065B
53065E
53065E
53065H
53065H
53065K
53065K
53065L
53065L
53065O
53065O
53065P
53065P
53065S
53065S
92009
92009
92015
92015
92039
92039
92039
92039
92039
92039
92039
92039
92075
92075
92151
92151
92151
92151
92152
92152
92152
92152
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154B
92154B
92154B
92154B
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92161B
92161B
92200
92200
92200
92200
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,FILTER CAP | 14092 | 14092-0954 | 1 | ||
| CASE-CHAIN | 36014 | 36014-0555 | 1 | ||
| COVER SEAT,SIDE,LH,P.S.WHITE | 53065 | 53065-0026-25Y | 1 | ||
| COVER SEAT,SIDE,RH,P.S.WHITE | 53065A | 53065-0027-25Y | 1 | ||
| COVER SEAT,SIDE,LH,EBONY | 53065B | 53065-0058-H8 | 1 | ||
| COVER SEAT,SIDE,RH,EBONY | 53065E | 53065-0059-H8 | 1 | ||
| COVER SEAT,TAIL,LH,EBONY | 53065H | 53065-0060-H8 | 1 | ||
| COVER SEAT,TAIL,LH,P.S.WHITE | 53065K | 53065-0060-25Y | 1 | ||
| COVER SEAT,TAIL,RH,EBONY | 53065L | 53065-0061-H8 | 1 | ||
| COVER SEAT,TAIL,RH,P.S.WHITE | 53065O | 53065-0061-25Y | 1 | ||
| COVER SEAT,CNT,EBONY | 53065P | 53065-0062-H8 | 1 | ||
| COVER SEAT,CNT,P.S.WHITE | 53065S | 53065-0062-25Y | 1 | ||
| SCREW,6X14 | 92009 | 92009-1662 | 1 | ||
| NUT,CLAMP,6MM | 92015 | 92015-1531 | 1 | ||
| RIVET | 92039 | 92039-0709 | 4 | ||
| DAMPER | 92075 | 92075-1808 | 1 | ||
| BOLT,FLANGED,6X13 | 92151 | 92151-1703 | 2 | ||
| COLLAR,5.8X8.2X4.7 | 92152 | 92152-1697 | 2 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-0182 | 4 | ||
| BOLT,SOCKET,6X20 | 92154A | 92154-0918 | 2 | ||
| BOLT,FLANGED,5X12 | 92154B | 92154-1003 | 2 | ||
| DAMPER | 92161 | 92161-0631 | 14 | ||
| DAMPER | 92161A | 92161-1459 | 2 | ||
| DAMPER,15X15X5 | 92161B | 92161-1522 | 2 | ||
| WASHER,5.2X12X1.0 | 92200 | 92200-0784 | 2 | ||
| NUT,5MM | 92210 | 92210-0817 | 2 |
| COVER,FILTER CAP | |
| REF # | 14092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-CHAIN | |
| REF # | 36014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER SEAT,SIDE,LH,P.S.WHITE | |
| REF # | 53065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER SEAT,SIDE,RH,P.S.WHITE | |
| REF # | 53065A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER SEAT,SIDE,LH,EBONY | |
| REF # | 53065B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER SEAT,SIDE,RH,EBONY | |
| REF # | 53065E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER SEAT,TAIL,LH,EBONY | |
| REF # | 53065H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER SEAT,TAIL,LH,P.S.WHITE | |
| REF # | 53065K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER SEAT,TAIL,RH,EBONY | |
| REF # | 53065L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER SEAT,TAIL,RH,P.S.WHITE | |
| REF # | 53065O |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER SEAT,CNT,EBONY | |
| REF # | 53065P |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER SEAT,CNT,P.S.WHITE | |
| REF # | 53065S |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,CLAMP,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X13 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,5.8X8.2X4.7 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X16 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X20 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,5X12 | |
| REF # | 92154B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,15X15X5 | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.2X12X1.0 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
