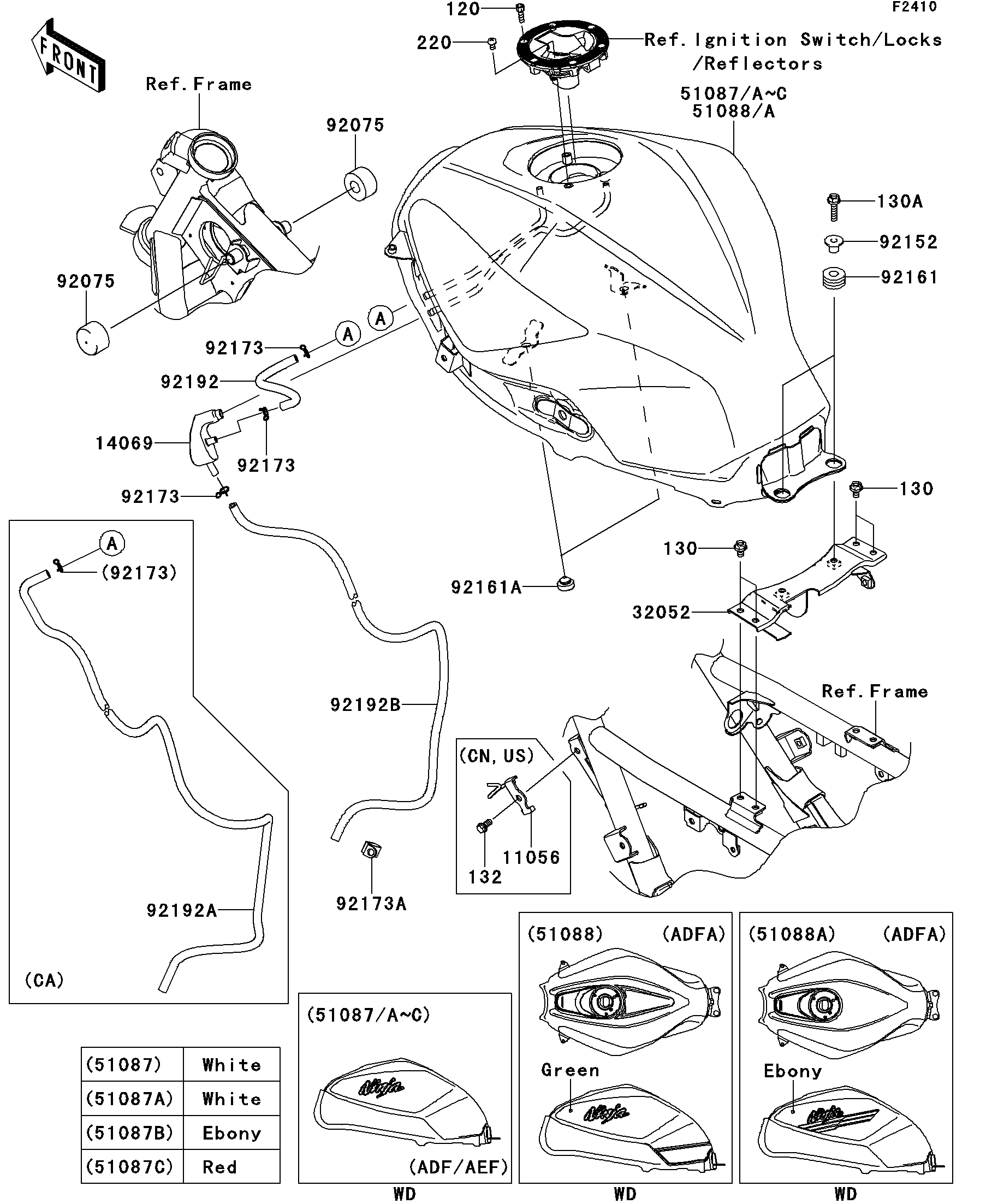

2014 Ninja® 300 - Fuel Tank(ADF-AEF)

DOWNLOAD PDF
SELECT A NEW PART
11056
14069
32052
51087A
51087B
92075
92075
92152
92161
92161A
92173
92173
92173
92173A
92192
92192B
120
130
130
130A
132
220
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,DRAIN TUBE 11056 11056-1633 1 _________________________________________CN,US
BREATHER 14069 14069-0011 1 _________________________________________CN,US
BRACKET-TANK,RR 32052 32052-0718 1
TANK-COMP-FUEL,P.S.WHITE 51087A 51087-5424-25Y 1
TANK-COMP-FUEL,EBONY 51087B 51087-5425-H8 1
DAMPER,FUEL TANK,FR 92075 92075-1115 2
COLLAR 92152 92152-0332 2
DAMPER,10X24X12 92161 92161-0927 2
DAMPER 92161A 92161-1473 2
CLAMP 92173 92173-0049 3 _________________________________________CA
CLAMP 92173A 92173-0978 1
TUBE,FUEL 92192 92192-0310 1 _________________________________________CN,US
TUBE,5X9X900 92192B 92192-1237 1 _________________________________________CN,US
BOLT-SOCKET,5X16 120 120CB0516 6
BOLT-FLANGED,6X10 130 130BA0610 4
BOLT-FLANGED,6X25 130A 130BA0625 2
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1 _________________________________________CN,US
SCREW-PAN-CROS,5X8 220 220AB0508 1
