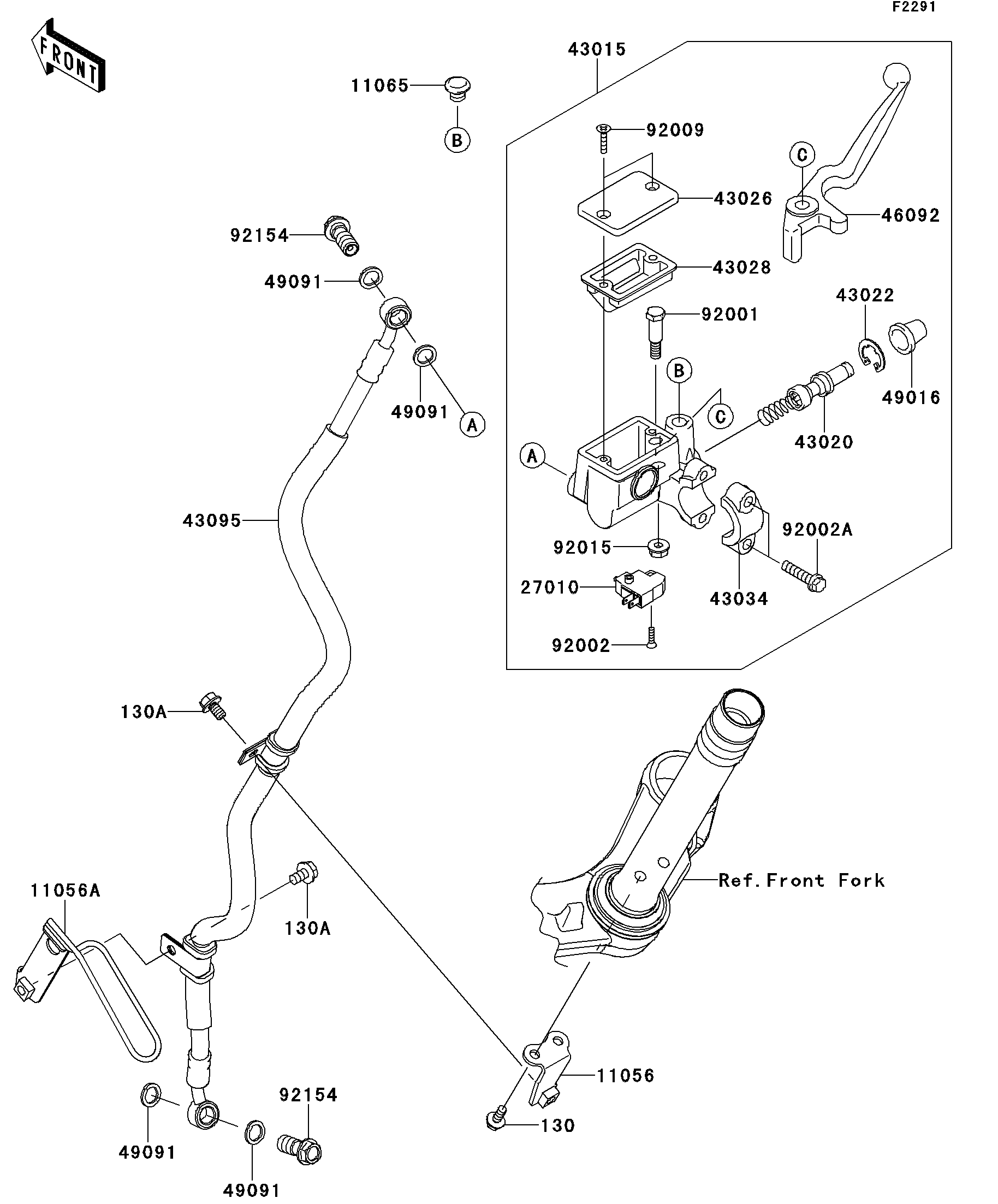

2014 Ninja® 300 - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
11065
27010
43015
43020
43022
43026
43028
43034
43095
46092
49016
49091
49091
49091
49091
92001
92002
92002A
92009
92015
92154
92154
130
130A
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-2214 1
BRACKET 11056A 11056-2300 1
CAP,DUMMY 11065 11065-0218 1
SWITCH,BRAKE 27010 27010-1170 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0110 1
PISTON-COMP-BRAKE 43020 43020-1095 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1074 1
DIAPHRAGM 43028 43028-1061 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
HOSE-BRAKE,FR,L=731 43095 43095-0770 1
LEVER-GRIP,FRONT BRAKE 46092 46092-0028 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
BOLT,FRONT BRAKE LEVER 92001 92001-1728 1
BOLT,SCREW,4X12 92002 92002-1323 1
BOLT 92002A 92002-1894 2
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
BOLT,OIL,L=23 92154 92154-0226 2
BOLT-FLANGED,5X12 130 130BB0512 2
BOLT-FLANGED,6X10 130A 130BB0610 2
