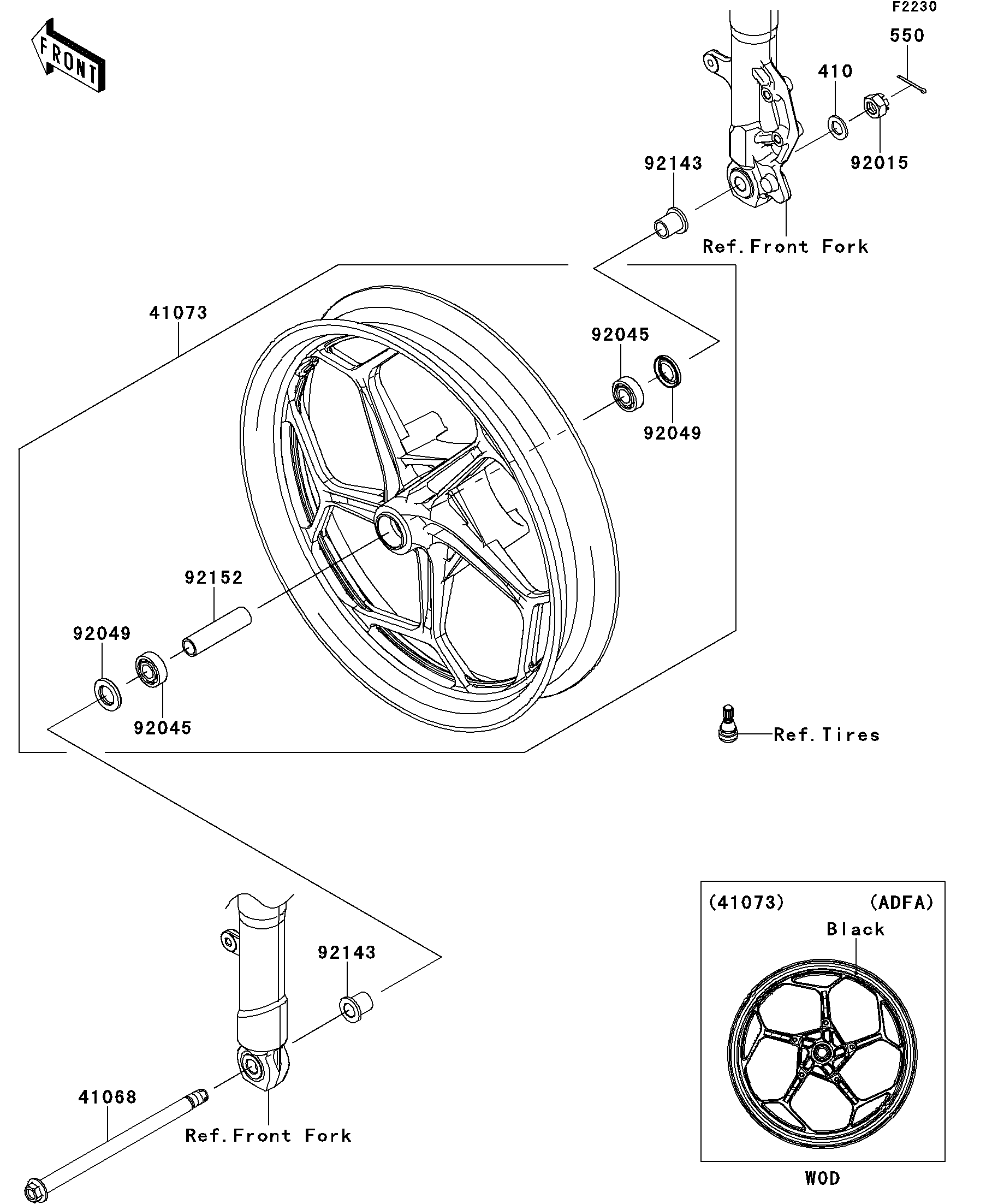

2014 Ninja® 300 - Front Wheel(ADF/AEF)/(ADFA)(CN)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| AXLE,FR | 41068 | 41068-0024 | 1 | _________________________________________CN | |
| WHEEL-ASSY,FR,BLACK | 41073 | 41073-0589-R2 | 1 | _________________________________________CN | |
| NUT,CASTLE,14MM | 92015 | 92015-1765 | 1 | _________________________________________CN | |
| BEARING-BALL,15X35X11 | 92045 | 92045-0734 | 2 | _________________________________________CN | |
| SEAL-OIL | 92049 | 92049-0136 | 2 | _________________________________________CN | |
| COLLAR,FR AXLE,L=24 | 92143 | 92143-1187 | 2 | _________________________________________CN | |
| COLLAR,15.1X20X80 | 92152 | 92152-1586 | 1 | _________________________________________CN | |
| WASHER-PLAIN-SMALL,14MM | 410 | 410AA1400 | 1 | _________________________________________CN | |
| PIN-COTTER,3.0X30 | 550 | 550AA3030 | 1 | _________________________________________CN |
| AXLE,FR | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN |
| WHEEL-ASSY,FR,BLACK | |
| REF # | 41073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN |
| NUT,CASTLE,14MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN |
| BEARING-BALL,15X35X11 | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CN |
| SEAL-OIL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CN |
| COLLAR,FR AXLE,L=24 | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CN |
| COLLAR,15.1X20X80 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN |
| WASHER-PLAIN-SMALL,14MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN |
| PIN-COTTER,3.0X30 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN |
