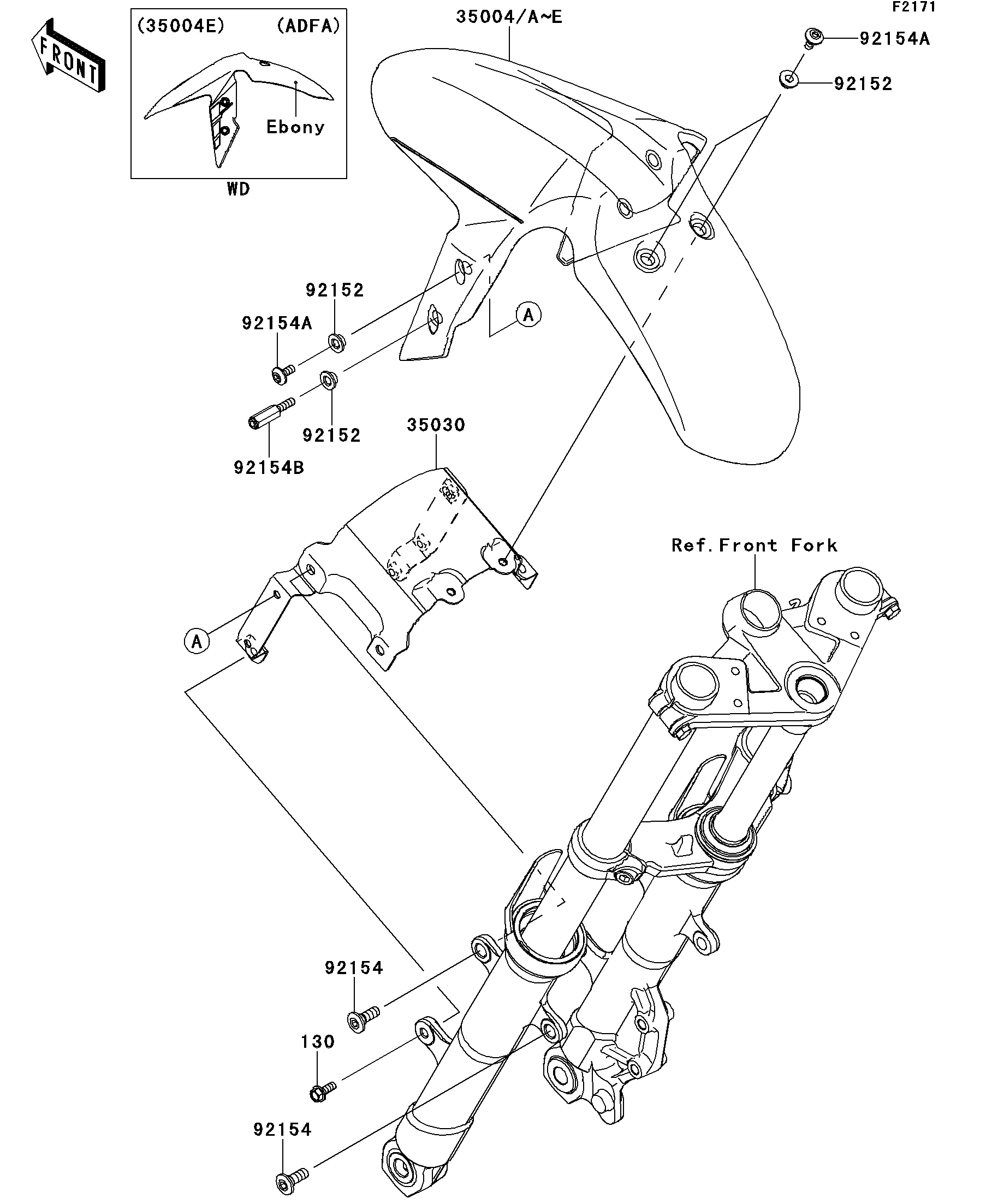

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FENDER-FRONT,EBONY | 35004 | 35004-0318-H8 | 1 | ||
| FENDER-FRONT,P.S.WHITE | 35004C | 35004-0318-25Y | 1 | ||
| BRACE-ASSY,FRONT FENDER | 35030 | 35030-0055 | 1 | ||
| COLLAR,6.8X10(16)X6.6 | 92152 | 92152-0842 | 6 | ||
| BOLT,SOCKET,8X23 | 92154 | 92154-0300 | 4 | ||
| BOLT,SOCKET,6X14 | 92154A | 92154-0932 | 4 | ||
| BOLT,6X20 | 92154B | 92154-1020 | 2 | ||
| BOLT-FLANGED,6X18 | 130 | 130BA0618 | 2 |
