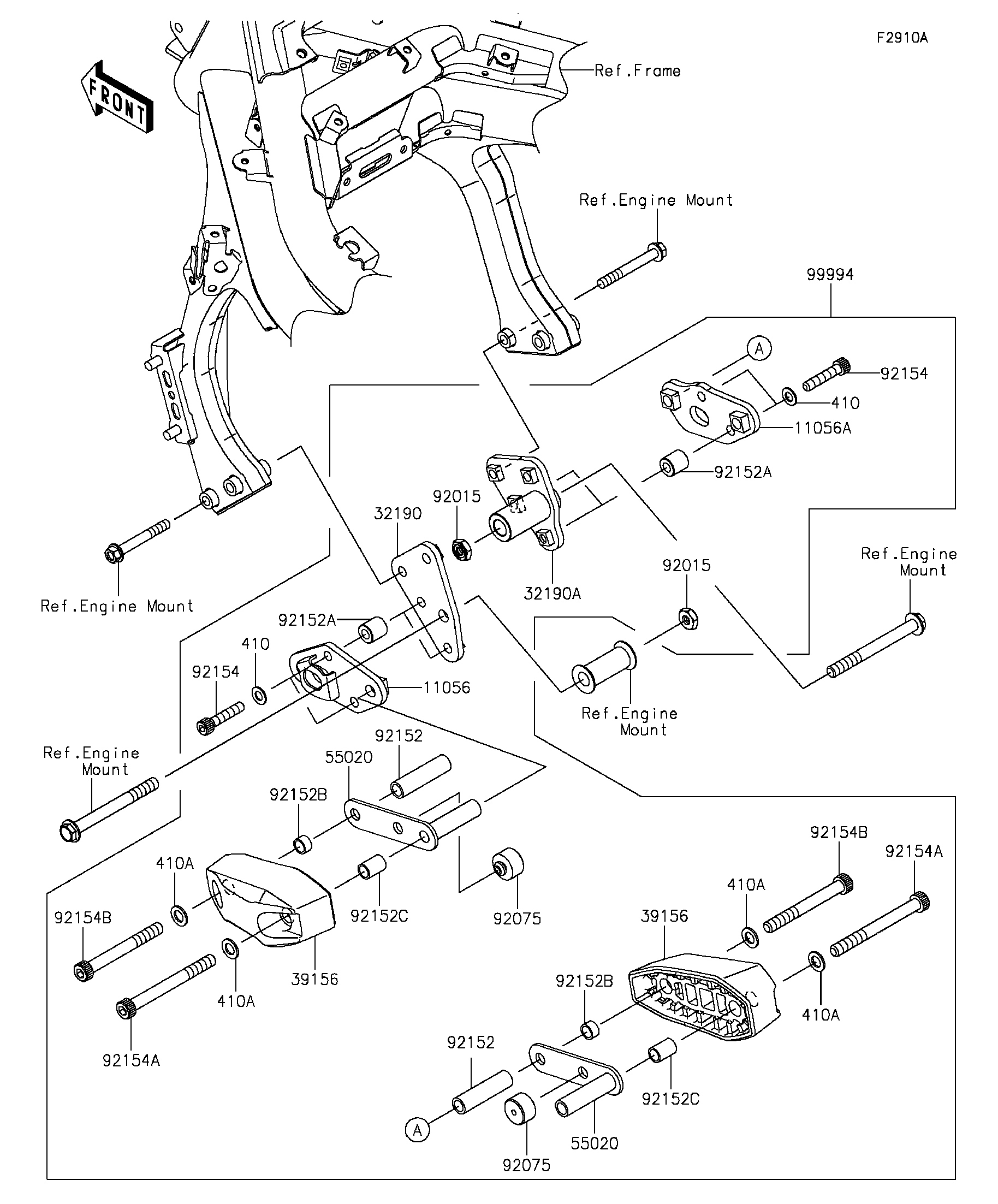

2013 NINJA® 650 ABS - Accessory(Engine Guard)

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
32190
32190A
39156
39156
55020
55020
92015
92015
92075
92075
92152
92152
92152A
92152A
92152B
92152B
92152C
92152C
92154
92154
92154A
92154A
92154B
92154B
99994
410
410
410A
410A
410A
410A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LH 11056 11056-1398 1
BRACKET,RH 11056A 11056-1399 1
BRACKET-ENGINE,LH 32190 32190-0589 1
BRACKET-ENGINE,RH 32190A 32190-0611 1
PAD,ENGINE GUARD 39156 39156-0758 2
GUARD 55020 55020-0763 2
NUT,LOCK,10MM,BLACK 92015 92015-1188 2
DAMPER 92075 92075-1876 2
COLLAR,10.5X15X57.2 92152 92152-1547 2
COLLAR,8.6X17X18 92152A 92152-1636 4
COLLAR,10.6X13.8X7.8 92152B 92152-1661 2
COLLAR,10.6X13.8X19.8 92152C 92152-1662 2
BOLT,SOCKET,8X40 92154 92154-1001 4
BOLT,SOCKET,10X100 92154A 92154-1027 2
BOLT,SOCKET,10X88 92154B 92154-1028 2
KIT-ACCESSORY,ENGINE GUARD 99994 99994-0234 1
WASHER-PLAIN-SMALL,8MM,BLACK 410 410AB0800 4
WASHER-PLAIN-SMALL,10MM,BLACK 410A 410AB1000 4
