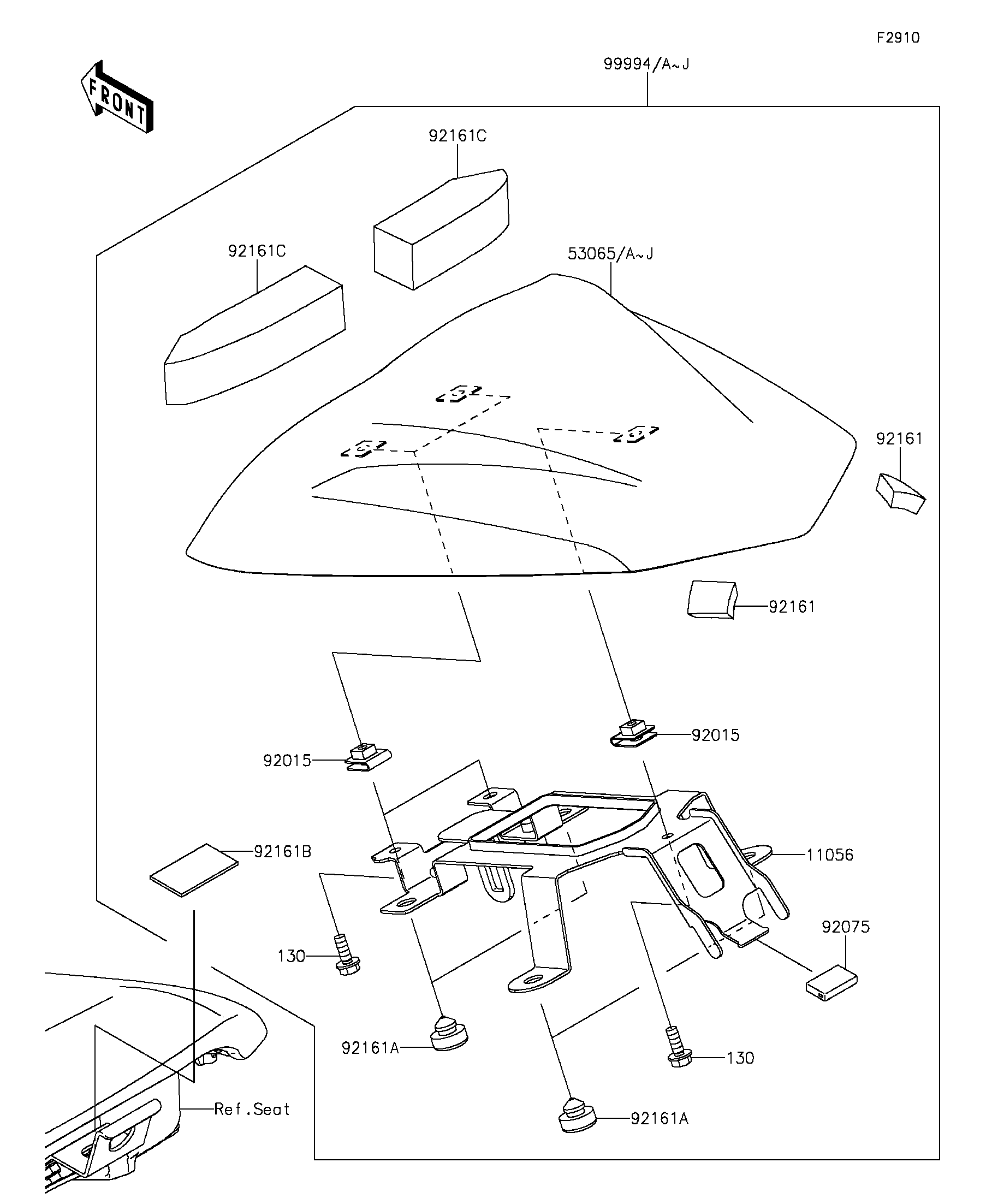

2013 NINJA® 650 ABS - Accessory(Single Seat Cover)
11056
53065A
53065C
53065I
92015
92015
92075
92161
92161
92161A
92161A
92161B
92161C
92161C
99994A
99994C
99994I
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11056 | 11056-1020 | 1 | ||
| COVER SEAT,C.T.BLUE | 53065A | 53065-0054-235 | 1 | CA,US | |
| COVER SEAT,P.S.WHITE | 53065C | 53065-0054-25Y | 1 | ||
| COVER SEAT,M.F.S.BLACK | 53065I | 53065-0054-739 | 1 | ||
| NUT,CLAMP,6MM | 92015 | 92015-1531 | 3 | ||
| DAMPER | 92075 | 92075-1446 | 1 | ||
| DAMPER | 92161 | 92161-0718 | 2 | ||
| DAMPER,10X20X8 | 92161A | 92161-0855 | 4 | ||
| DAMPER,45X25X2 | 92161B | 92161-1381 | 1 | ||
| DAMPER | 92161C | 92161-1471 | 2 | ||
| KIT-ACCESSORY,SEAT COVER,BLUE | 99994A | 99994-0235-235 | 1 | CA,US | |
| KIT-ACCESSORY,SEAT COVER,WHITE | 99994C | 99994-0235-25Y | 1 | ||
| KIT-ACCESSORY,SEAT COVER,BLACK | 99994I | 99994-0235-739 | 1 | ||
| BOLT-FLANGED,6X16 | 130 | 130BB0616 | 3 |
| BRACKET | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER SEAT,C.T.BLUE | |
| REF # | 53065A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| COVER SEAT,P.S.WHITE | |
| REF # | 53065C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER SEAT,M.F.S.BLACK | |
| REF # | 53065I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,CLAMP,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10X20X8 | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,45X25X2 | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| KIT-ACCESSORY,SEAT COVER,BLUE | |
| REF # | 99994A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| KIT-ACCESSORY,SEAT COVER,WHITE | |
| REF # | 99994C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KIT-ACCESSORY,SEAT COVER,BLACK | |
| REF # | 99994I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
