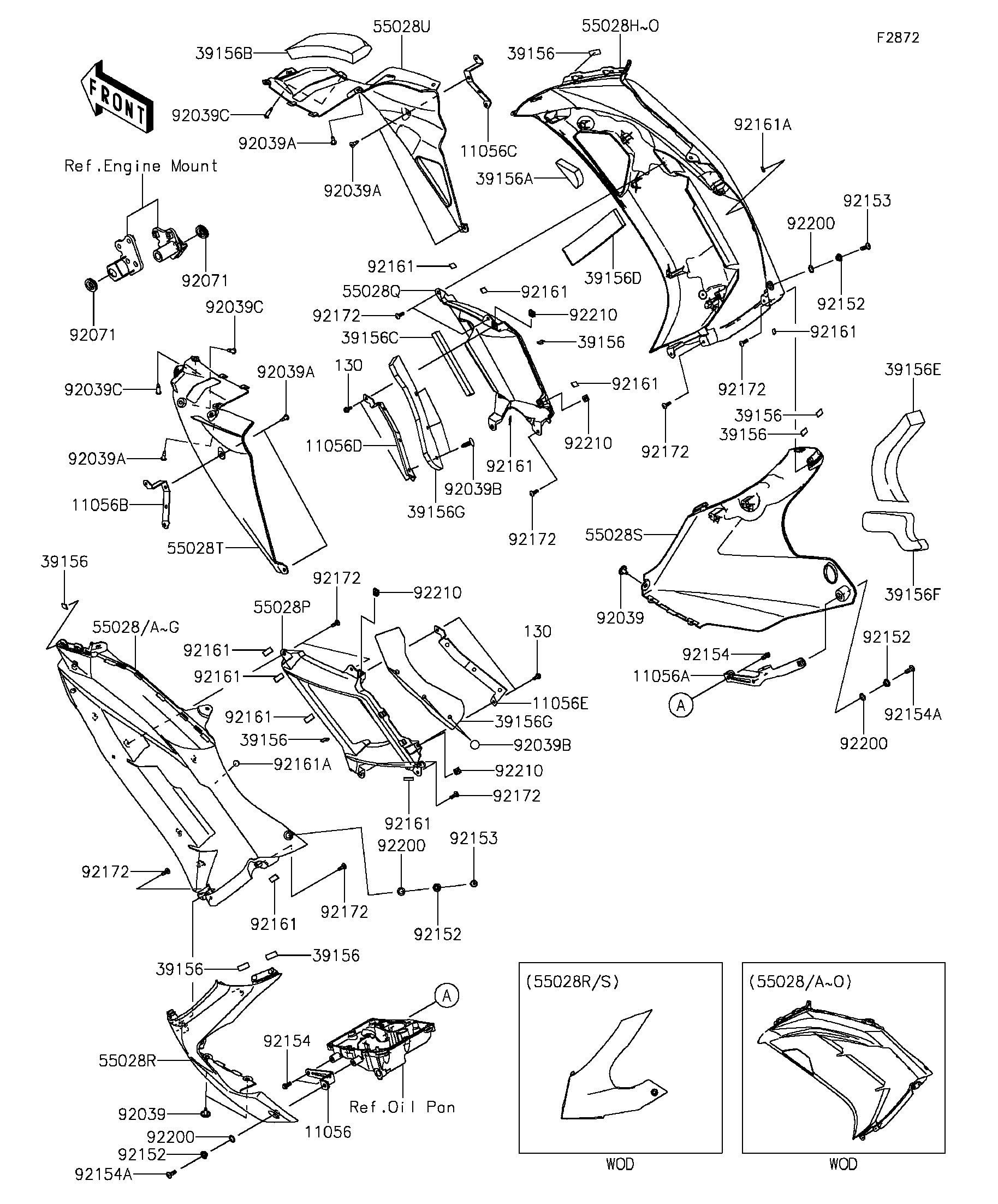

2013 NINJA® 650 ABS - Cowling Lowers(FDS-FFF)

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11056A
11056A
11056B
11056B
11056C
11056C
11056D
11056D
11056E
11056E
39156
39156
39156
39156
39156
39156
39156
39156
39156
39156
39156
39156
39156
39156
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
39156E
39156E
39156F
39156F
39156G
39156G
39156G
39156G
55028A
55028A
55028C
55028C
55028G
55028G
55028I
55028I
55028K
55028K
55028O
55028O
55028P
55028P
55028Q
55028Q
55028R
55028R
55028S
55028S
55028T
55028T
55028U
55028U
92039
92039
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039B
92039B
92039B
92039B
92039C
92039C
92039C
92039C
92039C
92039C
92071
92071
92071
92071
92152
92152
92152
92152
92152
92152
92152
92152
92153
92153
92153
92153
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92200
92200
92200
92200
92200
92200
92200
92200
92210
92210
92210
92210
92210
92210
92210
92210
130
130
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LWR,LH 11056 11056-0994 1
BRACKET,LWR,RH 11056A 11056-0995 1
BRACKET,FR COWLING,LH 11056B 11056-1214 1
BRACKET,FR COWLING,RH 11056C 11056-1215 1
BRACKET,PAD,RH 11056D 11056-1216 1
BRACKET,PAD,LH 11056E 11056-1545 1
PAD,10X25 39156 39156-0721 8
PAD 39156A 39156-0796 1
PAD 39156B 39156-0797 1
PAD,152X20X10 39156C 39156-0798 1
PAD,166X40X10 39156D 39156-0799 1
PAD 39156E 39156-0860 1
PAD 39156F 39156-0861 1
PAD 39156G 39156-0871 2
COWLING,SIDE,LH,C.T.BLUE 55028A 55028-0370-235 1 CA,US
COWLING,SIDE,LH,P.S.WHITE 55028C 55028-0370-25Y 1
COWLING,SIDE,LH,M.S.BLACK 55028G 55028-0370-660 1
COWLING,SIDE,RH,C.T.BLUE 55028I 55028-0371-235 1 CA,US
COWLING,SIDE,RH,P.S.WHITE 55028K 55028-0371-25Y 1
COWLING,SIDE,RH,M.S.BLACK 55028O 55028-0371-660 1
COWLING,FIN,LH,M.F.S.BLACK 55028P 55028-0372-739 1
COWLING,FIN,RH,M.F.S.BLACK 55028Q 55028-0373-739 1
COWLING,LWR,LH,M.F.S.BLACK 55028R 55028-0374-739 1
COWLING,LWR,RH,M.F.S.BLACK 55028S 55028-0375-739 1
COWLING,FR,LH 55028T 55028-0376 1
COWLING,FR,RH 55028U 55028-0377 1
RIVET,HOLE 8MM 92039 92039-0014 3
RIVET 92039A 92039-0068 6
RIVET 92039B 92039-0090 6
RIVET 92039C 92039-1283 3
GROMMET 92071 92071-0710 2
COLLAR 92152 92152-1359 4
BOLT,6X18 92153 92153-0478 2
BOLT,FLANGED,6X14 92154 92154-0777 4
BOLT,FLANGE BUTTON,6X18 92154A 92154-0996 2
DAMPER,10X20X1 92161 92161-1447 10
DAMPER,12X3 92161A 92161-1448 2
SCREW,TAPPING,5X16 92172 92172-0742 14
WASHER,10.4X15.9X0.5 92200 92200-0157 4
NUT 92210 92210-0571 4
BOLT-FLANGED,5X12 130 130BA0512 4
