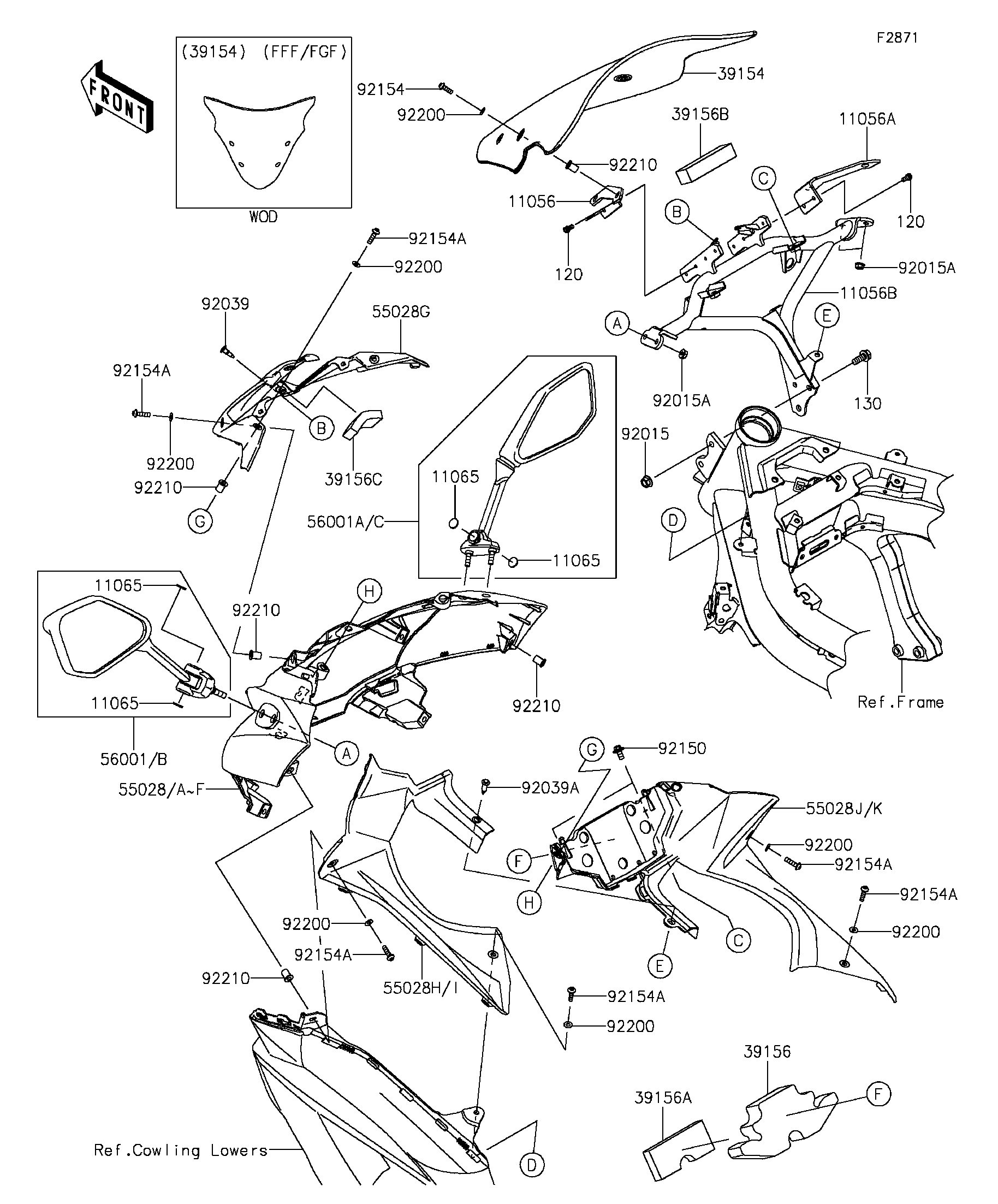

2013 NINJA® 650 ABS - Cowling

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
11056B
11065
11065
11065
11065
39154
39156
39156A
39156B
39156C
55028
55028E
55028G
55028H
55028J
56001
56001A
92015
92015A
92015A
92039
92039A
92150
92154
92154A
92154A
92154A
92154A
92154A
92154A
92200
92200
92200
92200
92200
92200
92200
92210
92210
92210
92210
92210
120
120
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LH 11056 11056-0992 1
BRACKET,RH 11056A 11056-0993 1
BRACKET,COWLING STAY 11056B 11056-2062 1
CAP 11065 11065-0787 4
WINDSHIELD 39154 39154-0307 1
PAD 39156 39156-1823 1
PAD,45X106X15 39156A 39156-1824 1
PAD,25X90X20 39156B 39156-1825 1
PAD,30X65X12 39156C 39156-1826 1
COWLING,UPP,P.S.WHITE 55028 55028-0366-25Y 1
COWLING,UPP,M.F.S.BLACK 55028E 55028-0366-739 1
COWLING,UPP,CNT 55028G 55028-0367 1
COWLING,INNER,LH 55028H 55028-0368 1
COWLING,INNER,RH 55028J 55028-0470 1
MIRROR-ASSY,LH 56001 56001-0223 1
MIRROR-ASSY,RH 56001A 56001-0224 1
NUT,FLANGED,8MM 92015 92015-1014 2
NUT,FLANGED,6MM,BLACK 92015A 92015-1233 4
RIVET 92039 92039-0068 2
RIVET 92039A 92039-1283 1
BOLT,6X14 92150 92150-1340 2
BOLT,SOCKET,5X16 92154 92154-0209 4
BOLT,SOCKET,5X20 92154A 92154-0829 8
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 12
NUT,WELL,5MM 92210 92210-0498 10
BOLT-SOCKET,5X10 120 120CB0510 4
BOLT-FLANGED,8X20 130 130BA0820 2
