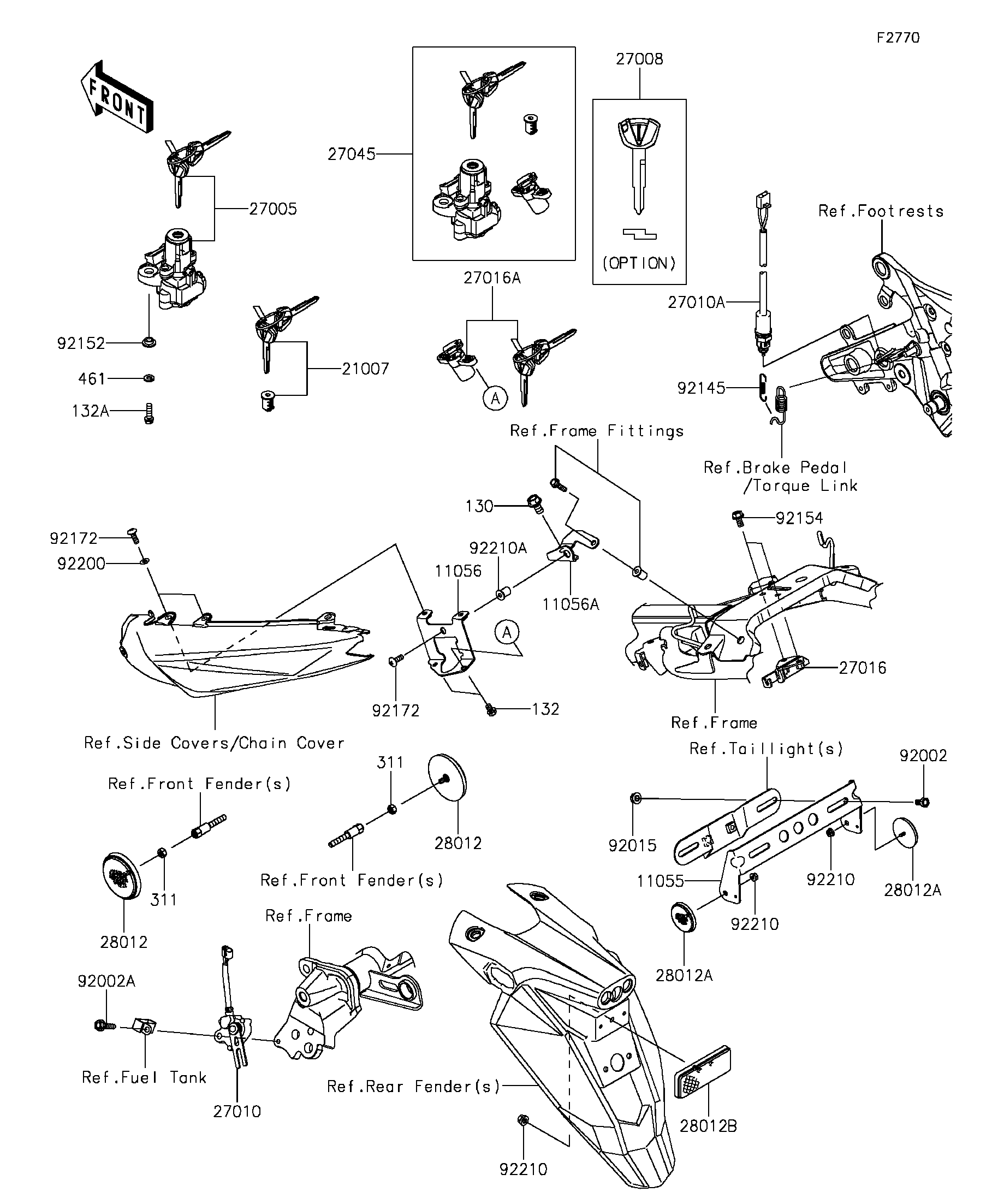

2013 NINJA® 650 ABS - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
11055
11056
11056A
21007
27005
27008
27010
27010A
27016
27016A
27045
28012
28012
28012A
28012A
28012B
92002
92002A
92015
92145
92152
92154
92172
92172
92200
92210
92210
92210
92210A
130
132
132A
311
311
461
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REFLECTOR 11055 11055-1092 1
BRACKET 11056 11056-1923 1
BRACKET 11056A 11056-1924 1
ROTOR,LOCK,TANK CAP 21007 21007-5068 1
SWITCH-ASSY-IGNITION 27005 27005-0552 1
KEY-LOCK,BLANK 27008 27008-0069 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0722 1
SWITCH,REAR BRAKE 27010A 27010-0723 1
LOCK-ASSY,SEAT STRIKER 27016 27016-0008 1
LOCK-ASSY,SEAT 27016A 27016-5372 1
SWITCH-ASSY 27045 27045-5452 1
REFLECTOR-REFLEX,FR,SIDE 28012 28012-0001 2
REFLECTOR-REFLEX 28012A 28012-0002 2
REFLECTOR-REFLEX 28012B 28012-1077 1
BOLT,6X12 92002 92002-1132 2
BOLT,FLANGED,6X25 92002A 92002-1582 1
NUT,FLANGED,6MM 92015 92015-1367 2
SPRING,REAR BRAKE SWITCH 92145 92145-0724 1
COLLAR,6.15X10.15X6 92152 92152-1535 2
BOLT,FLANGED,6X12 92154 92154-1050 2
SCREW,5X16 92172 92172-0322 3
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 2
NUT,FLANGED,5MM 92210 92210-0007 3
NUT,WELL,5MM 92210A 92210-0498 1
BOLT-FLANGED,8X14 130 130BA0814 1
BOLT-FLANGED-SMALL,6X8 132 132BA0608 2
BOLT-FLANGED-SMALL,6X20 132A 132BA0620 2
NUT-HEX,5MM 311 311AB0500 2
WASHER-SPRING,6MM 461 461DA0600 2
