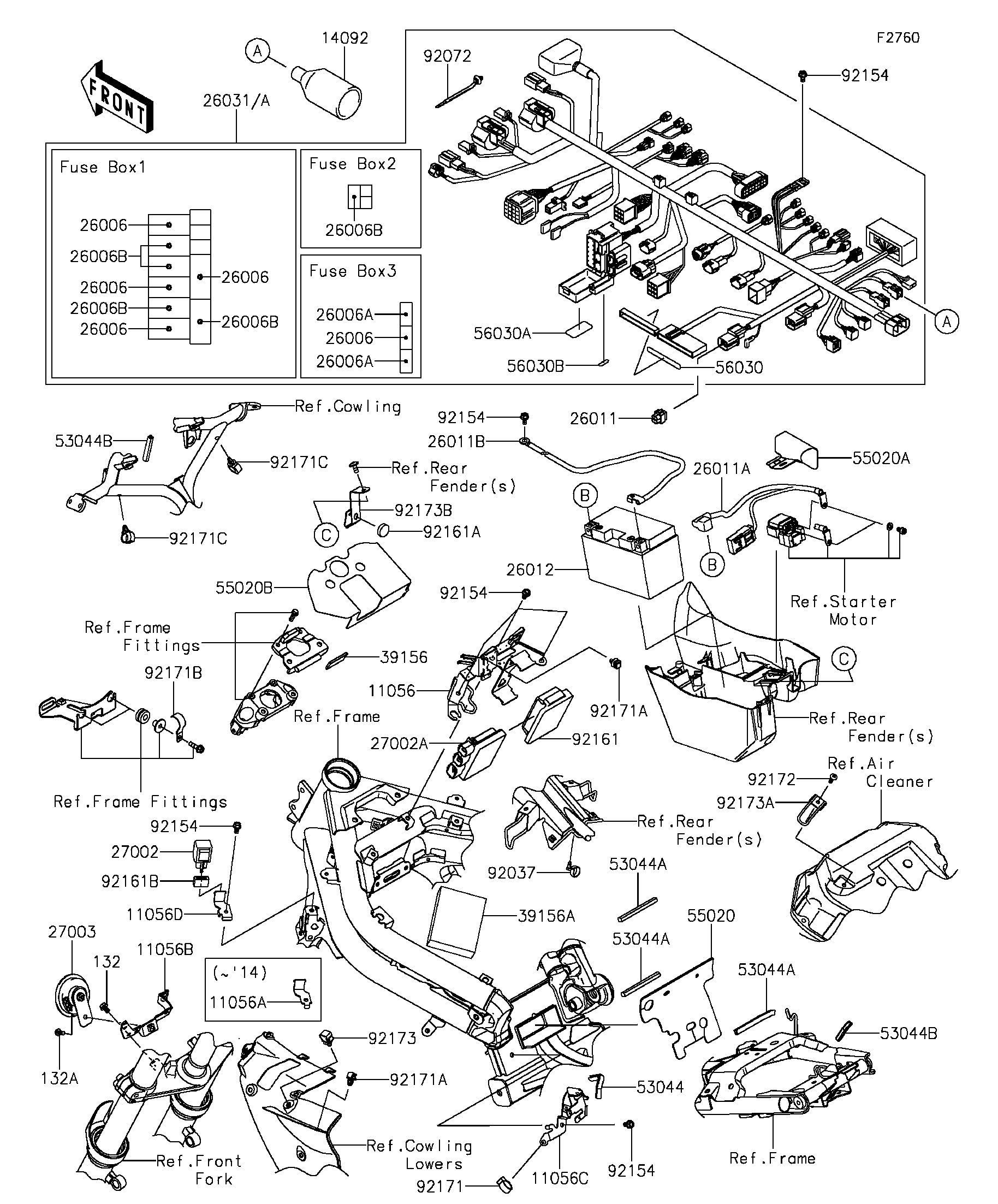

2013 NINJA® 650 ABS - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11056A
11056A
11056B
11056B
11056C
11056C
14092
14092
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26006B
26011
26011
26011A
26011A
26011B
26011B
26012
26012
26031
26031
26031A
26031A
27002
27002
27002A
27002A
27003
27003
39156
39156
39156A
39156A
53044
53044
53044A
53044A
53044A
53044A
53044A
53044A
53044B
53044B
53044B
53044B
55020
55020
55020A
55020A
55020B
55020B
56030
56030
56030A
56030A
56030B
56030B
92037
92037
92072
92072
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92161
92161
92161A
92161A
92161B
92161B
92171
92171
92171A
92171A
92171A
92171A
92171B
92171B
92171C
92171C
92171C
92171C
92172
92172
92173
92173
92173A
92173A
92173B
92173B
132
132
132A
132A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RELAY-ASSY 11056 11056-0806 1
BRACKET,SIGNAL RELAY 11056A 11056-1676 1
BRACKET,HORN 11056B 11056-1821 1
BRACKET,PIVOT,UPP,LH 11056C 11056-1888 1
COVER 14092 14092-0902 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 5
FUSE,MINI BLADE,25A,NATURAL 26006A 26006-0020 2
FUSE,MINI BLADE,10A,RED 26006B 26006-1078 5
WIRE-LEAD,SENSOR CONNECTOR 26011 26011-0101 1
WIRE-LEAD,BATTERY(+) 26011A 26011-0710 1
WIRE-LEAD,BATTERY(-) 26011B 26011-0711 1
BATTERY,YT12A-BS,12V 26012 26012-0556 1
HARNESS,MAIN 26031 26031-1460 1 CN,US
HARNESS,MAIN 26031A 26031-1462 1 CA
RELAY-ASSY,SIGNAL LAMP 27002 27002-0006 1
RELAY-ASSY 27002A 27002-0007 1
HORN 27003 27003-0065 1
PAD,20X40X3 39156 39156-0831 1
PAD,100X80X30 39156A 39156-0872 1
TRIM 53044 53044-0018 1
TRIM,L=85 53044A 53044-0556 3
TRIM,L=48 53044B 53044-1324 2
GUARD,AIR CLEANER 55020 55020-0760 1
GUARD,MG. SWITCH 55020A 55020-0822 1
GUARD,FUSE BOX 55020B 55020-0826 1
LABEL,FUSE BOX3 56030 56030-0400 1
LABEL,FUSE BOX1 56030A 56030-0705 1
LABEL,FUSE BOX2 56030B 56030-0706 1
CLAMP,SPEED,L=58 92037 92037-1163 1
BAND 92072 92072-1414 9
BOLT,FLANGED,6X12 92154 92154-1050 7
DAMPER,RELAY BOX 92161 92161-0203 1
DAMPER 92161A 92161-0336 1
DAMPER,15X25X8.5 92161B 92161-1443 1
CLAMP,BRAKE HOSE 92171 92171-0316 1
CLAMP 92171A 92171-0640 3
CLAMP,L=60 92171B 92171-0652 2
CLAMP,13MM DIA. 92171C 92171-1415 2
SCREW,TAPPING,5X16 92172 92172-0742 1
CLAMP,12MM DIA. 92173 92173-0736 2
CLAMP,AIR CLEANER 92173A 92173-0889 1
CLAMP 92173B 92173-0890 1
BOLT-FLANGED-SMALL,6X10 132 132BA0610 2
BOLT-FLANGED-SMALL,6X12 132A 132BB0612 1
