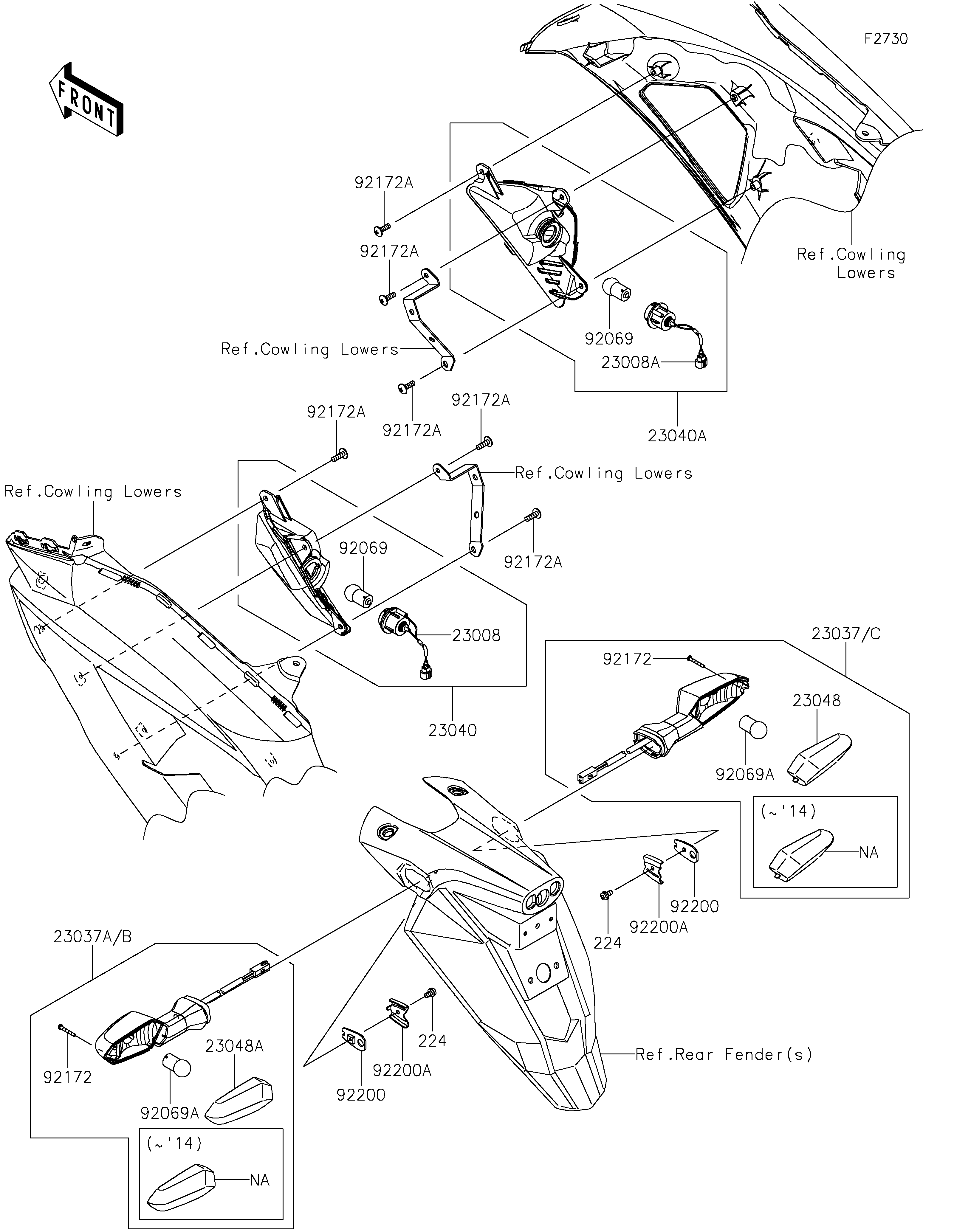

2013 NINJA® 650 ABS - Turn Signals

DOWNLOAD PDF
SELECT A NEW PART
23008
23008A
23037
23037A
23040
23040A
92069
92069
92069A
92069A
92172
92172
92172A
92172A
92172A
92172A
92172A
92172A
92200
92200
92200A
92200A
224
224
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SOCKET-ASSY,FR,LH 23008 23008-0128 1
SOCKET-ASSY,FR RH 23008A 23008-0143 1
LAMP-ASSY-SIGNAL,RR,RH 23037 23037-0236 1
LAMP-ASSY-SIGNAL,RR,LH 23037A 23037-0243 1
LAMP-SIGNAL,FR,LH 23040 23040-0111 1
LAMP-SIGNAL,FR,RH 23040A 23040-0112 1
BULB,12V 10W 92069 92069-0058 2
BULB,12V 10W 92069A 92069-0076 2
SCREW,2.9X22 92172 92172-0395 2
SCREW,TAPPING,5X16 92172A 92172-0742 6
WASHER,SIGNAL LAMP 92200 92200-0164 2
WASHER,SIGNAL LAMP 92200A 92200-0165 2
SCREW-PAN-WP-CROS,4X8 224 224AB0408 2
