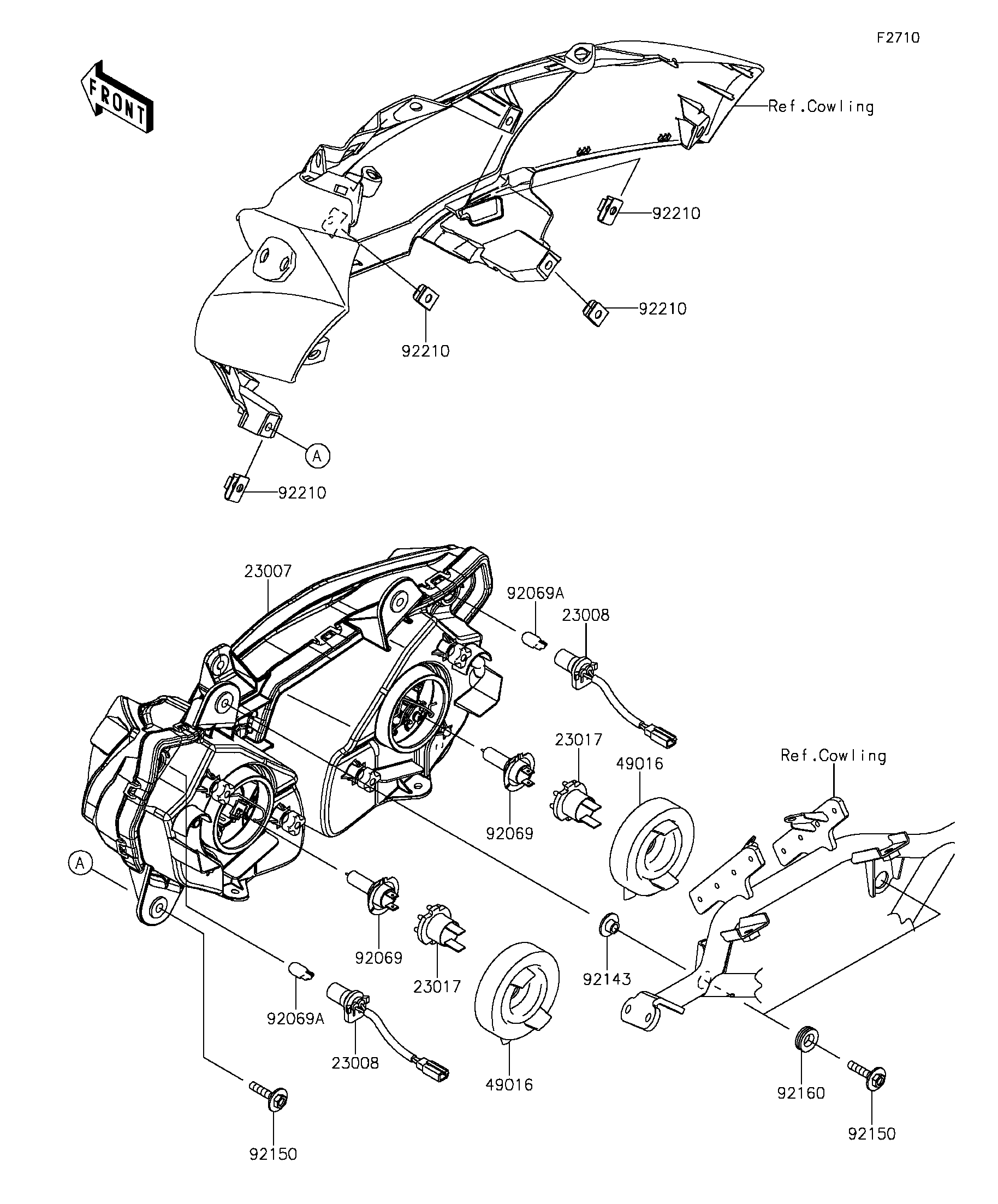

2013 NINJA® 650 ABS - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
23007
23008
23008
23017
23017
49016
49016
92069
92069
92069A
92069A
92143
92150
92150
92160
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LENS-COMP,HEAD LAMP 23007 23007-0173 1
SOCKET-ASSY,HEAD LAMP 23008 23008-0109 2
SOCKET,HEAD LAMP 23017 23017-1067 2
COVER-SEAL,HEAD LAMP 49016 49016-0590 2
BULB,12V 55W,H7 92069 92069-0053 2
BULB,12V 5W 92069A 92069-1016 2
COLLAR,L=7.4 92143 92143-1019 2
BOLT,6X30 92150 92150-1694 4
DAMPER 92160 92160-1278 2
NUT 92210 92210-0130 4
