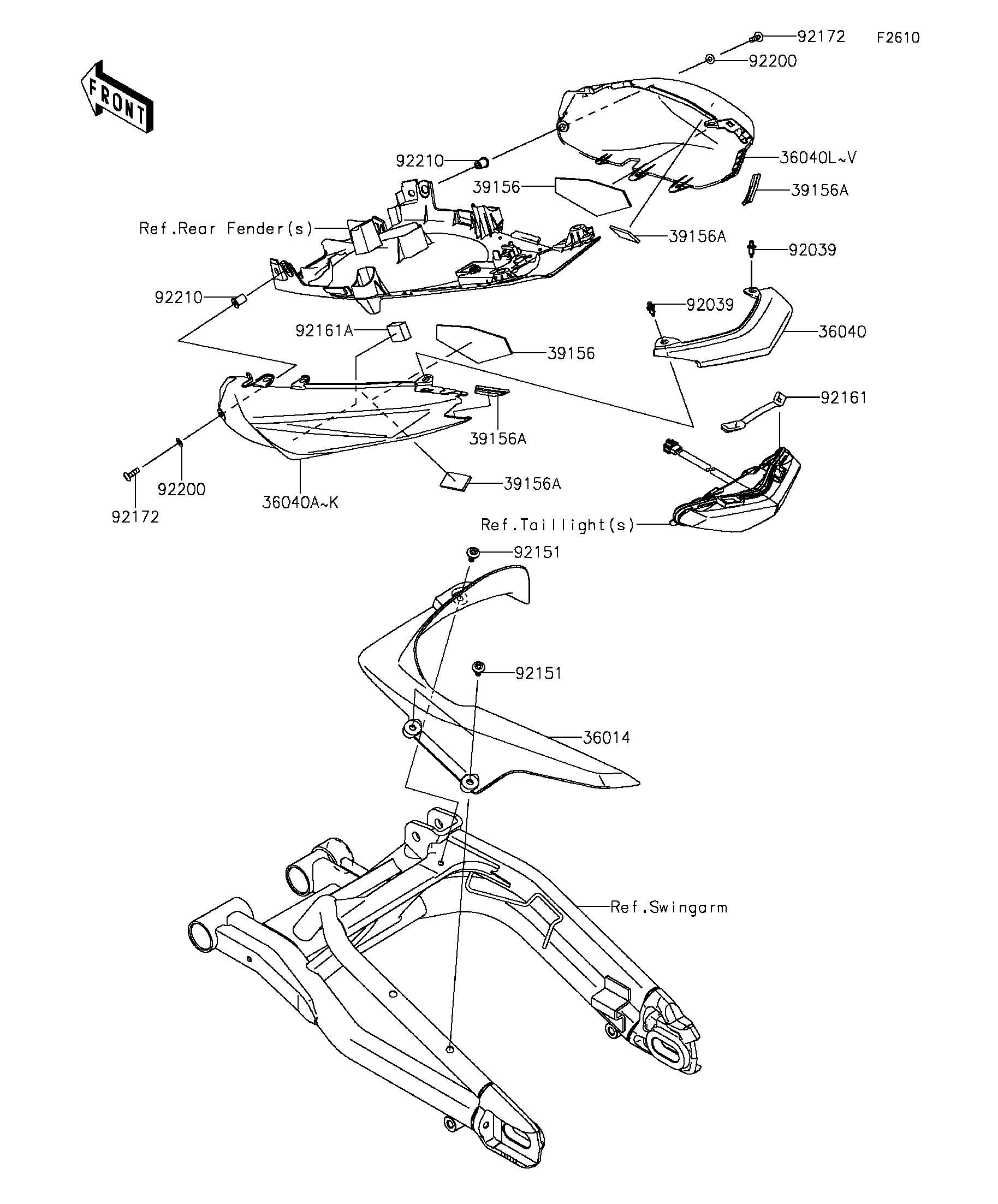

2013 NINJA® 650 ABS - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
36014
36040
36040B
36040D
36040J
36040M
36040O
36040U
39156
39156
39156A
39156A
39156A
39156A
92039
92039
92151
92151
92161
92161A
92172
92172
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-CHAIN 36014 36014-0552 1
COVER-TAIL,CNT 36040 36040-0118 1
COVER-TAIL,LH,C.T.BLUE 36040B 36040-0119-235 1 CA,US
COVER-TAIL,LH,P.S.WHITE 36040D 36040-0119-25Y 1
COVER-TAIL,LH,M.F.S.BLACK 36040J 36040-0119-739 1
COVER-TAIL,RH,C.T.BLUE 36040M 36040-0120-235 1 CA,US
COVER-TAIL,RH,P.S.WHITE 36040O 36040-0120-25Y 1
COVER-TAIL,RH,M.F.S.BLACK 36040U 36040-0120-739 1
PAD 39156 39156-0801 2
PAD,20X40X3 39156A 39156-0831 4
RIVET 92039 92039-0023 2
BOLT,SOCKET,6X14 92151 92151-1654 3
DAMPER,TAIL LAMP UPP 92161 92161-0625 1
DAMPER 92161A 92161-0718 1
SCREW,5X16 92172 92172-0479 2
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 2
NUT,WELL,5MM 92210 92210-0498 2
