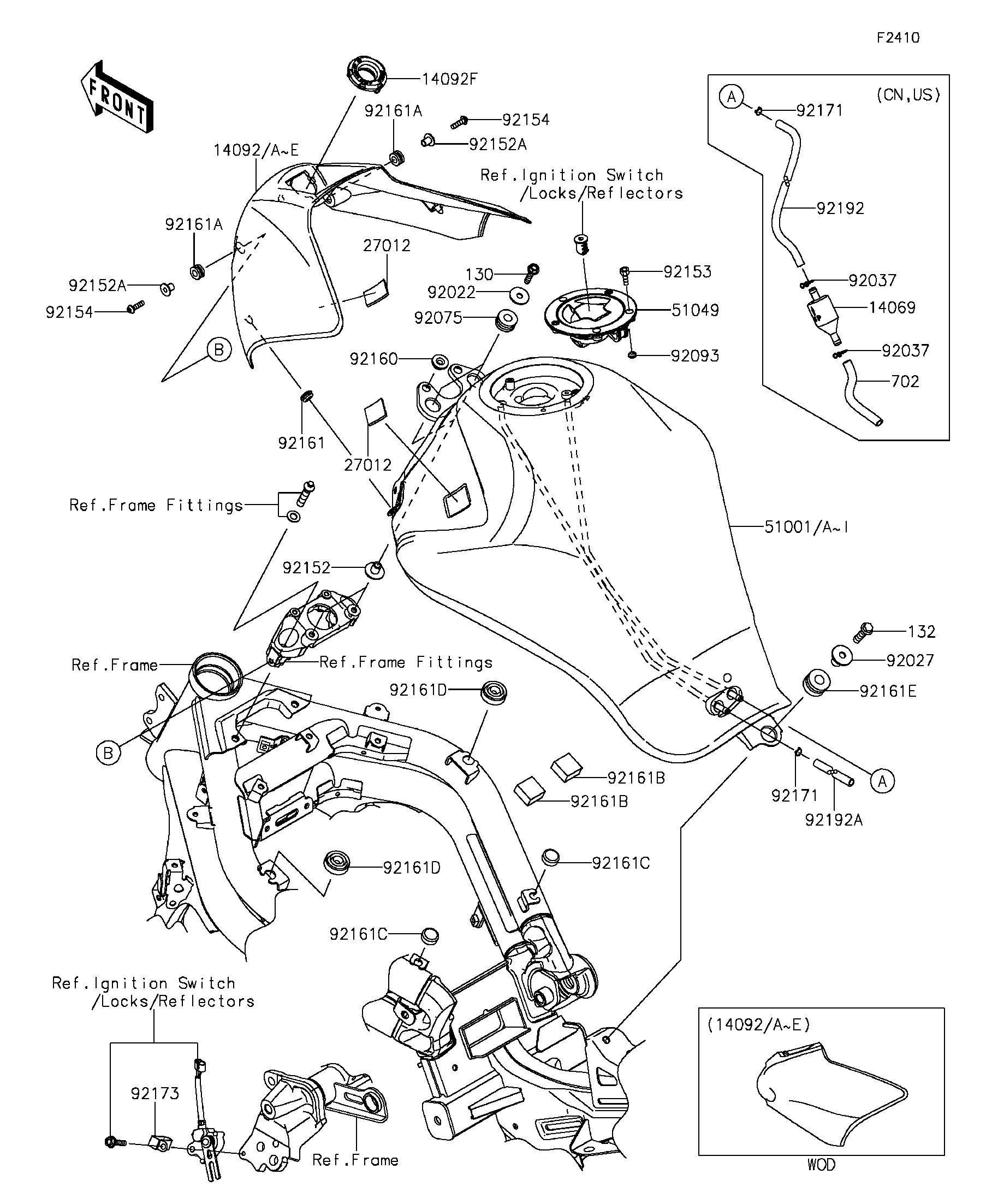

2013 NINJA® 650 ABS - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
14069
14069
14092D
14092D
14092E
14092E
14092F
14092F
27012
27012
27012
27012
51001
51001
51001A
51001A
51001B
51001B
51001F
51001F
51049
51049
92022
92022
92027
92027
92037
92037
92037
92037
92075
92075
92093
92093
92152
92152
92152A
92152A
92152A
92152A
92153
92153
92154
92154
92154
92154
92160
92160
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92161B
92161B
92161C
92161C
92161C
92161C
92161D
92161D
92161D
92161D
92161E
92161E
92171
92171
92171
92171
92173
92173
92192
92192
92192A
92192A
130
130
132
132
702
702
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BREATHER,FUEL TANK 14069 14069-1004 1 CN,US
COVER,TANK,M.S.BLACK 14092D 14092-0731-660 1
COVER,TANK,M.F.S.BLACK 14092E 14092-0731-739 1
COVER,IGNITION SW. 14092F 14092-1033 1
HOOK,DUAL LOCK FASTENER 27012 27012-0717 4
TANK-COMP-FUEL,P.S.WHITE 51001 51001-0708-15S 1
TANK-COMP-FUEL,M.F.S.BLACK 51001A 51001-0708-15V 1
TANK-COMP-FUEL,C.L.GREEN 51001B 51001-0708-35P 1 CN
TANK-COMP-FUEL,C.T.BLUE 51001F 51001-0708-620 1 CA,US
CAP-TANK,FUEL 51049 51049-0714 1
WASHER,7X24X1.6 92022 92022-228 2
COLLAR,L=19.3 92027 92027-1780 1
CLAMP,TUBE 92037 92037-147 2 CN,US
DAMPER,10X24X12 92075 92075-1690 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
COLLAR,6.5X10X13.1 92152 92152-0910 2
COLLAR,5.6X8X11.2 92152A 92152-1562 2
BOLT,SOCKET,5X16 92153 92153-1616 3
BOLT,SOCKET,5X20 92154 92154-0210 2
DAMPER 92160 92160-1613 2
DAMPER 92161 92161-0631 2
DAMPER,8X16X8.6 92161A 92161-0685 2
DAMPER,T=13 92161B 92161-0792 2
DAMPER,10X20X8 92161C 92161-0855 2
DAMPER,14X30X10 92161D 92161-1368 2
DAMPER,12X28X17 92161E 92161-1494 1
CLAMP,8X0.7 92171 92171-1973 1 CA
CLAMP,8X0.7 92171 92171-1973 2 CN,US
CLAMP 92173 92173-0833 1
TUBE,6X9X631 92192 92192-0966 1 CN,US
TUBE,6X9X800 92192A 92192-1377 1
BOLT-FLANGED,6X25 130 130CA0625 2
BOLT-FLANGED-SMALL,8X30 132 132BA0830 1
TUBE-RUBBER,7X10X100 702 702A07100 1 CN,US
