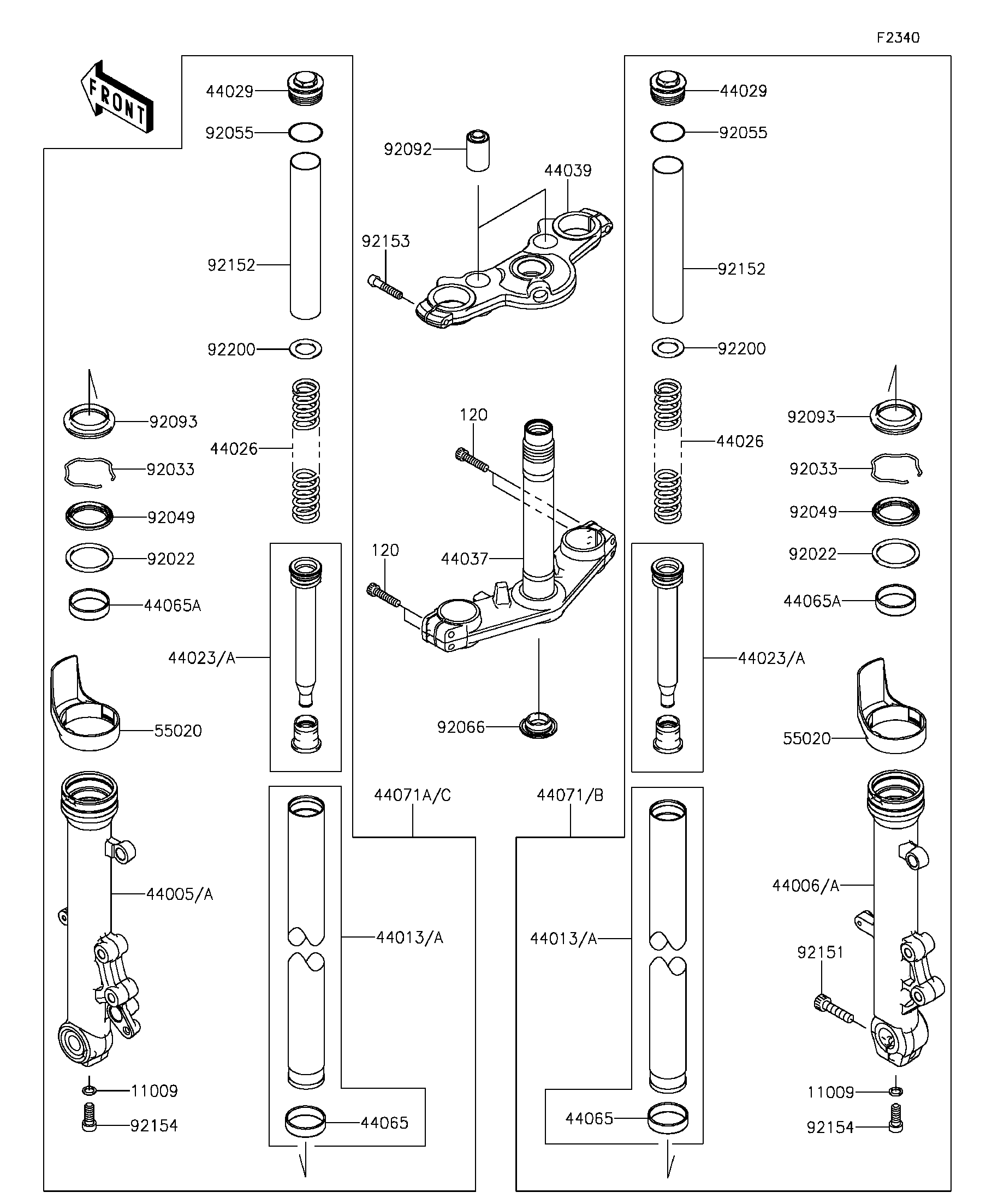

2013 NINJA® 650 ABS - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
44005
44006
44013
44013
44023
44023
44026
44026
44029
44029
44037
44039
44065
44065
44065A
44065A
44071
44071A
55020
55020
92022
92022
92033
92033
92049
92049
92055
92055
92066
92092
92093
92093
92151
92152
92152
92153
92154
92154
92200
92200
120
120
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10.5X15X1.5 11009 11009-1325 2
PIPE-LEFT FORK OUTER,S.BLACK 44005 44005-0088-32A 1
PIPE-RIGHT FORK OUTER,S.BLACK 44006 44006-0082-32A 1
PIPE-FORK INNER 44013 44013-0154 2
CYLINDER-SET-FORK 44023 44023-0098 2
SPRING-FRONT FORK 44026 44026-0165 2
SEAT-FORK SPRING 44029 44029-0005 2
HOLDER-FORK UNDER,F.S.BLACK 44037 44037-0119-18R 1
HOLDER-FORK UPPER,F.S.BLACK 44039 44039-0121-18R 1
BUSHING-FRONT FORK,INNER TUBE 44065 44065-0014 2
BUSHING-FRONT FORK,OUTER TUBE 44065A 44065-1115 2
DAMPER-ASSY,FORK,RH,S.BLACK 44071 44071-0768-32A 1
DAMPER-ASSY,FORK,LH,S.BLACK 44071A 44071-0770-32A 1
GUARD,FORK 55020 55020-0872 2
WASHER,FORK OUTER TUBE 92022 92022-1298 2
RING-SNAP 92033 92033-1036 2
SEAL-OIL 92049 92049-0073 2
RING-O 92055 92055-1321 2
PLUG 92066 92066-0032 1
BUSHING-RUBBER 92092 92092-1090 2
SEAL,FORK OUTER TUBE 92093 92093-1472 2
BOLT,SOCKET,10X40 92151 92151-1357 1
COLLAR,FORK 92152 92152-0767 2
BOLT,SOCKET,8X40 92153 92153-0506 2
BOLT,SOCKET,FORK CYLINDER 92154 92154-0296 2
WASHER 92200 92200-1302 2
BOLT-SOCKET,8X35 120 120CA0835 4
