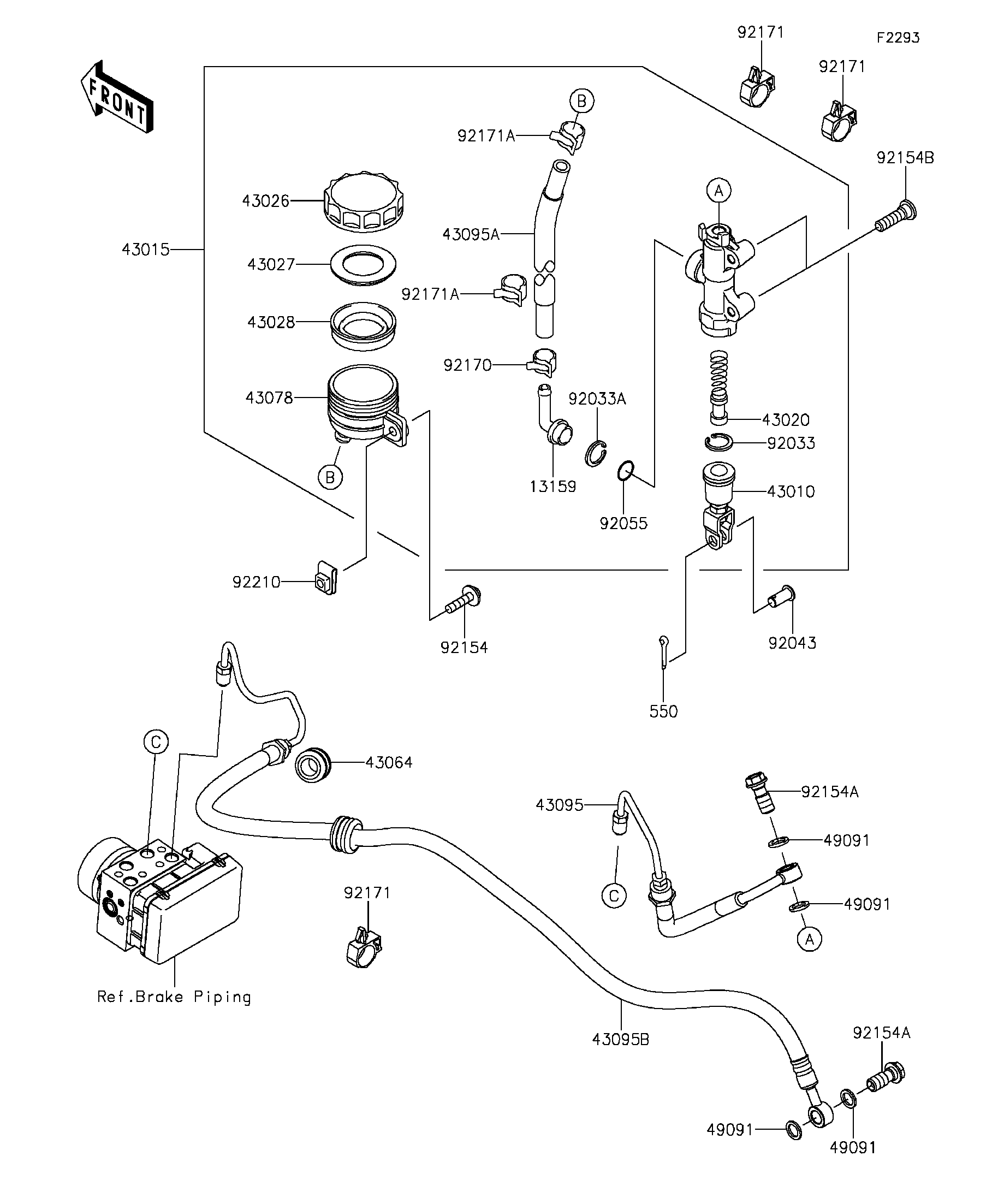

2013 NINJA® 650 ABS - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
13159
43010
43015
43020
43026
43027
43028
43064
43078
43095
43095A
43095B
49091
49091
49091
49091
92033
92033A
92043
92055
92154
92154A
92154A
92154B
92170
92171
92171
92171
92171A
92171A
92210
550
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CONNECTOR 13159 13159-1056 1
ROD-ASSY-BRAKE 43010 43010-1062 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0559 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
GROMMET,HOSE CLAMP 43064 43064-006 1
RESERVOIR,RR MASTER CYLINDER 43078 43078-1082 1
HOSE-BRAKE,RR M/C-ABS ECU 43095 43095-0623 1
HOSE-BRAKE,RR M/CYLINDER 43095A 43095-0628 1
HOSE-BRAKE,ABS ECU-RR CALIPER 43095B 43095-0722 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
PIN 92043 92043-0182 1
RING-O,14.8X2.4 92055 92055-0741 1
BOLT,6X25 92154 92154-0467 1
BOLT,FLANGED,10X23 92154A 92154-0732 2
BOLT,SOCKET,8X30 92154B 92154-0843 2
CLAMP,HOSE 92170 92170-1091 1
CLAMP,BRAKE HOSE 92171 92171-0316 3
CLAMP,HOSE 92171A 92171-0463 2
NUT,6MM 92210 92210-0474 1
PIN-COTTER,2.0X15 550 550AA2015 1
